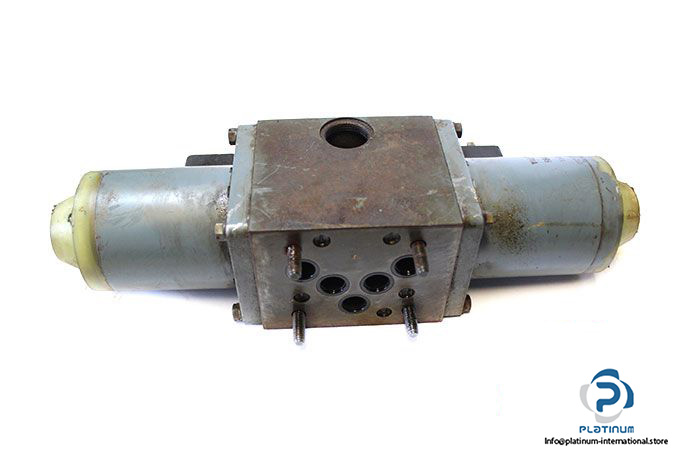

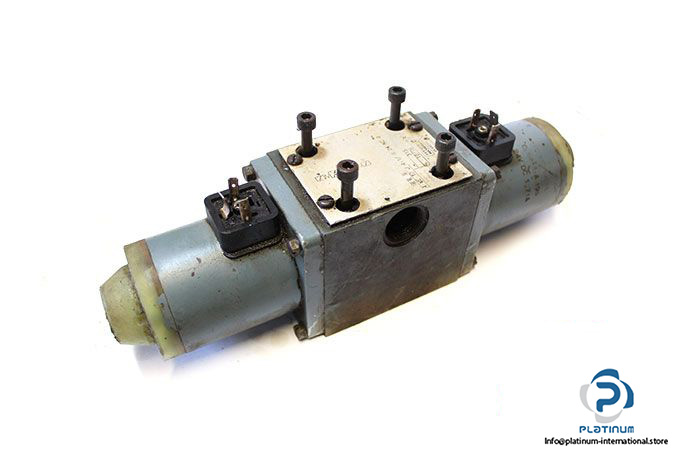

Rexroth 4 WE 10 J 4.1/G24 NZ 4 Directional Control Valve

Manufacturer: REXROTH

Type: Directional Control Valve

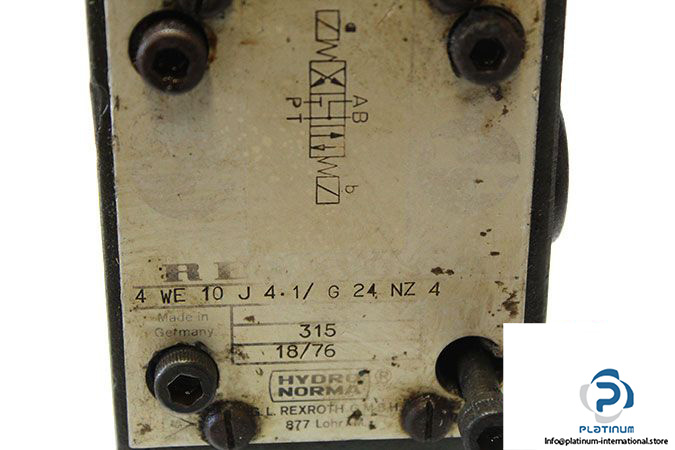

Model: 4WE10J4.1/G24NZ4

Size: 10

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports A, B, P :315 bar

Maximum Operating Pressure at Port T :210 bar

Maximum Flow Rate: 120 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

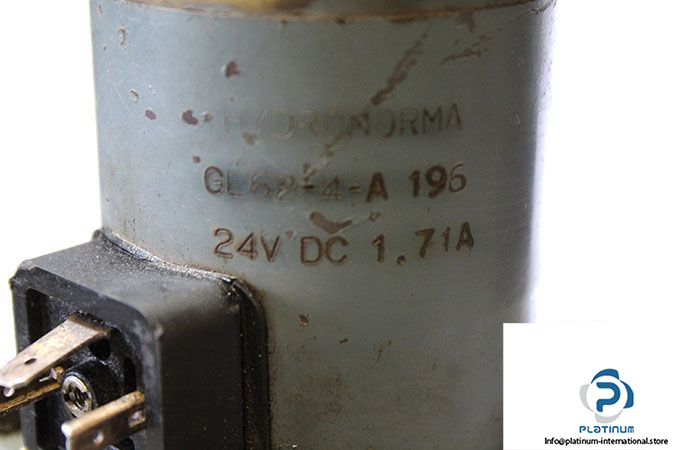

Attachment: HYDRONORMA GL62-4-A 196 SOLENOID COIL

Manufacturer: HYDRONORMA

Type: Solenoid Coil

Model: GL62-4-A 196

Voltage: 24 V DC

Current: 1.71 A

Weight: 5.52 kg
