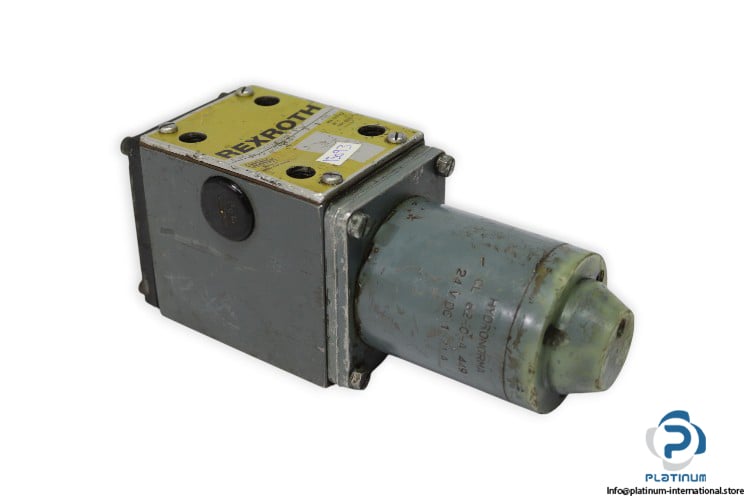

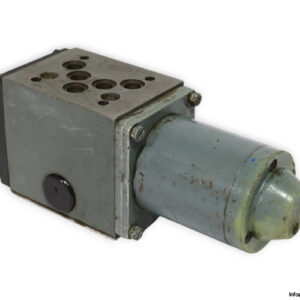

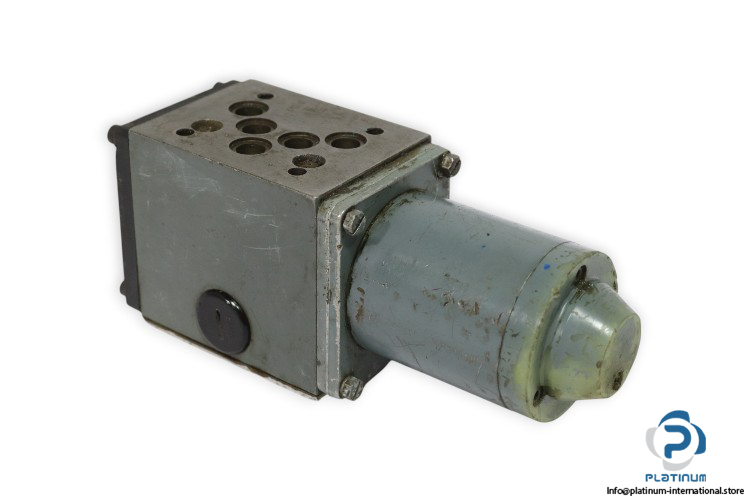

Rexroth 4 WE 10 Y11/LG24NZ5L Directional Control Valve
DIRECTIONAL CONTROL VALVE
Rexroth Hydronorma 4 WE 10 Y11/LG24NZ5L 4-port valve with 24V DC coil. Electrically actuated, handles up to 315 bar pressure and 120 l/min flow. Designed for high-performance hydraulic systems.REXROTH HYDRONORMA 4 WE 10 Y11/LG24NZ5L DIRECTIONAL CONTROL VALVE
The Rexroth Hydronorma 4 WE 10 Y11/LG24NZ5L is a high-performance directional control valve designed for precise fluid direction in hydraulic systems. With electrical actuation and compatibility with high pressure and flow rates, it ensures reliable control under demanding industrial conditions.
Manufacturer: Rexroth Hydronorma
Type: Directional Control Valve

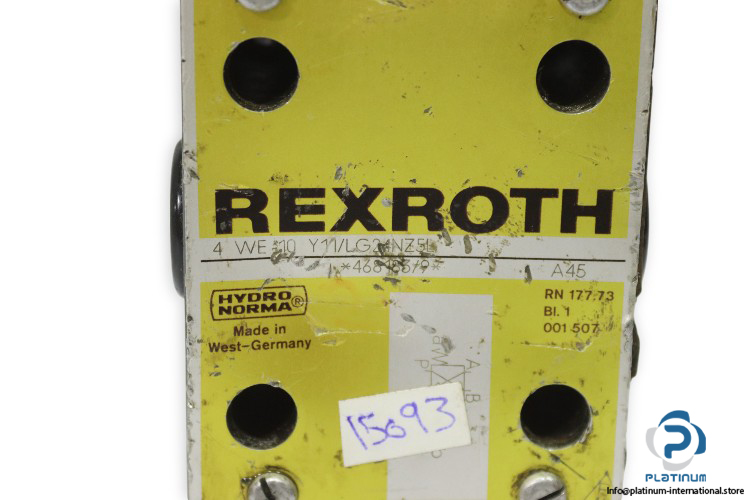

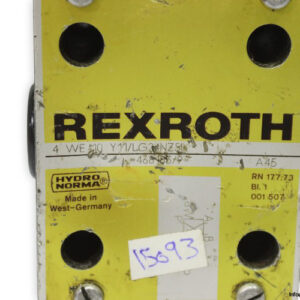

Model: 4 WE 10 Y11/LG24NZ5L
Code: 468183/9, RN 177.73, 001 507, A45
Attachment
| Number of Ports | 4 |
| Size | 10 |
| Type of Actuation | Electrically |
| Ambient Temperature Range | -30 to +50 °C |
| Max Operating Pressure (A, B, P) | 315 bar |
| Max Operating Pressure (T) | 210 bar |
| Max Flow Rate | 120 l/min |
| Hydraulic Fluid Temperature Range | -30 to +80 °C |
| Viscosity Range | 2.8 to 500 mm²/s |

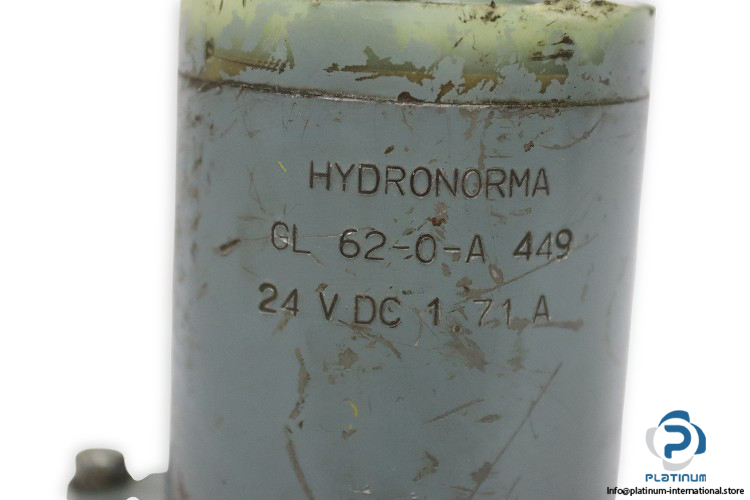

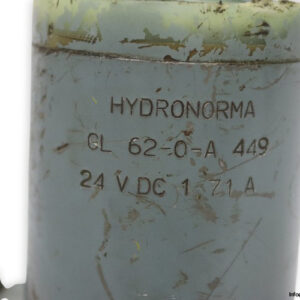

| Voltage | 24 V DC |
| Current | 1.71 A |
