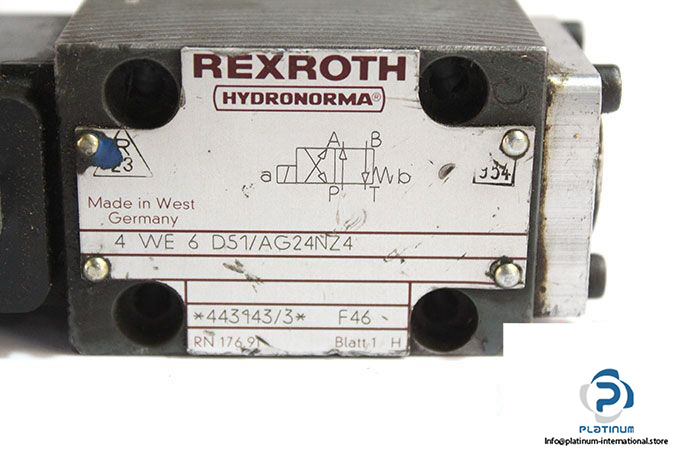

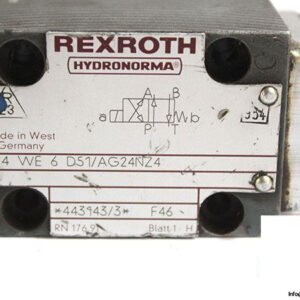

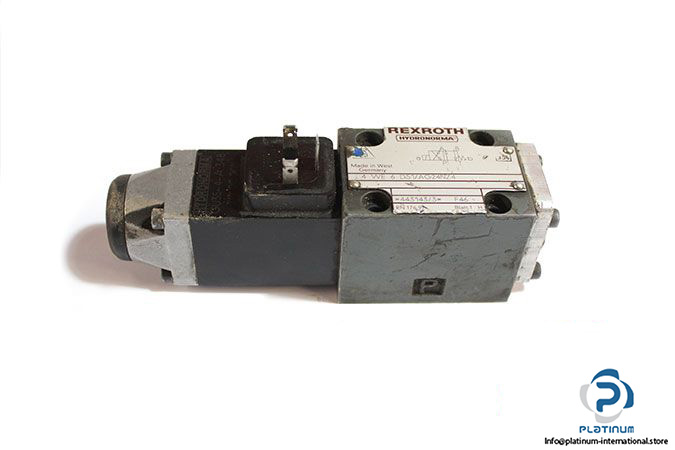

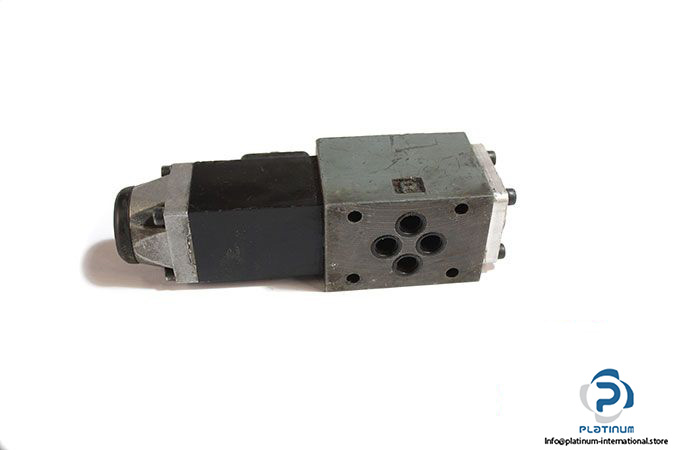

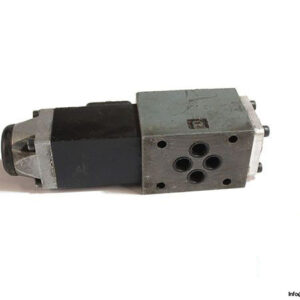

Rexroth 4 WE 6 D51/AG24NZ4 Directional Control Valve

Manufacturer: REXROTH HYDRONORMA

Type: Directional Control Valve

Model: 4WE6D51/AG24NZ4

Size: 6

Type of Actuation: Electrically

Max. Working Pressure (Port P, A, B): 350 bar

Max. Pressure (Port T):210 bar

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Flow Rate: 80 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Connection: Sup-plate

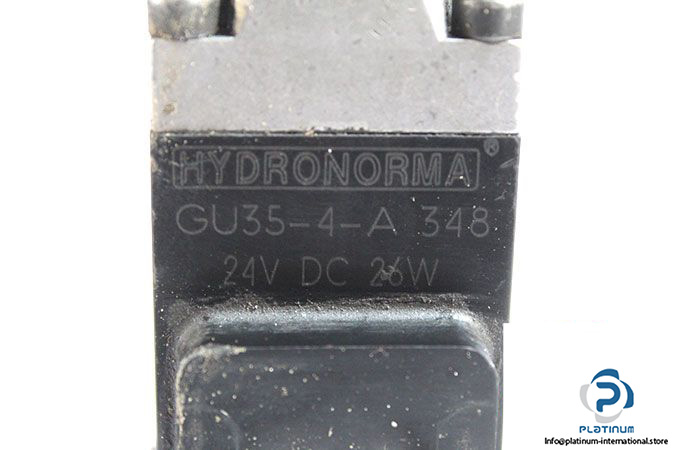

Attachment: HYDRONORMA GU35-4-A SOLENOID COIL

Manufacturer: REXROTH HYDRONORMA

Type: Solenoid Coil

Model: GU35-4-A

Voltage: 24 VDC

Power Rating Per Coil: 26 W

Weight: 1.23 kg
