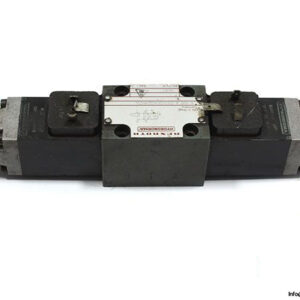

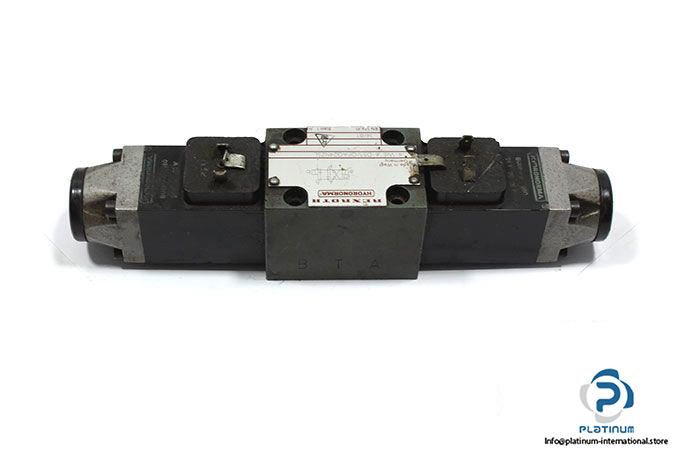

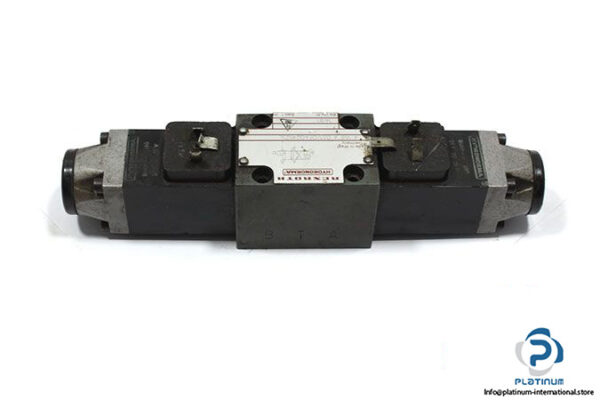

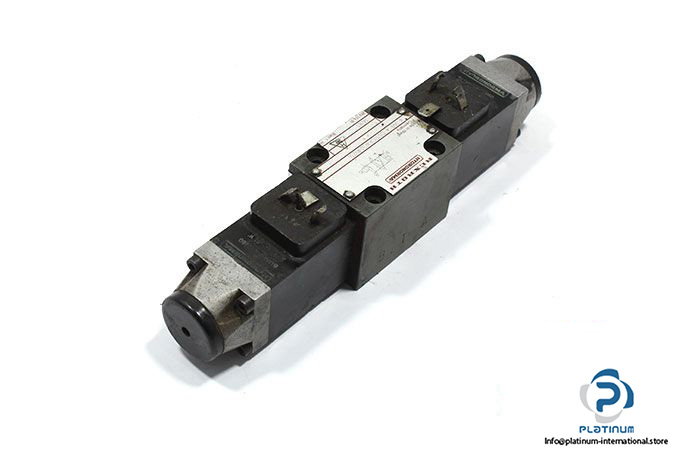

Rexroth 4 WE 6 D51/OFAG24NZ5L Solenoid Operated Directional Valve

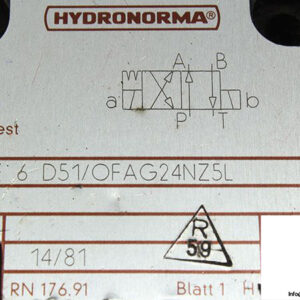

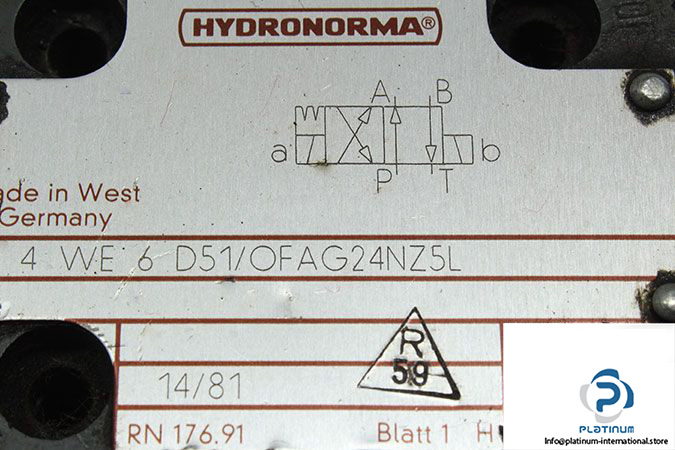

REXROTH HYDRONORMA 4WE6D51OFAG24NZ5L SOLENOID OPERATED DIRECTIONAL VALVE WITH GU35-4-A 341 COIL

The Rexroth Hydronorma 4 WE 6 D51/OFAG24NZ5L is a high-performance solenoid operated directional valve designed for precise hydraulic flow control in oil-based systems. With reliable electrical actuation and robust construction, it is suitable for demanding industrial applications.

Manufacturer: Rexroth Hydronorma
Type: Solenoid Operated Directional Valve
Model: 4 WE 6 D51/OFAG24NZ5L
Fluid: Oil
Nominal Size: NG 6
Type of Actuation: Electrically
Max. Working Pressure (Port P, A, B): 210 bar
Max. Pressure (Port T): 100 bar
Nominal Flow Rate: 20 l/min
Hydraulic Connection: Sub-Plate
Fluid Temperature Range: -20 / .. +80 °C

Attached Solenoid Coil

Manufacturer: Rexroth
Type: Solenoid Coil
Model: GU35-4-A 341
Voltage: 24 V DC
Power: 26 W
