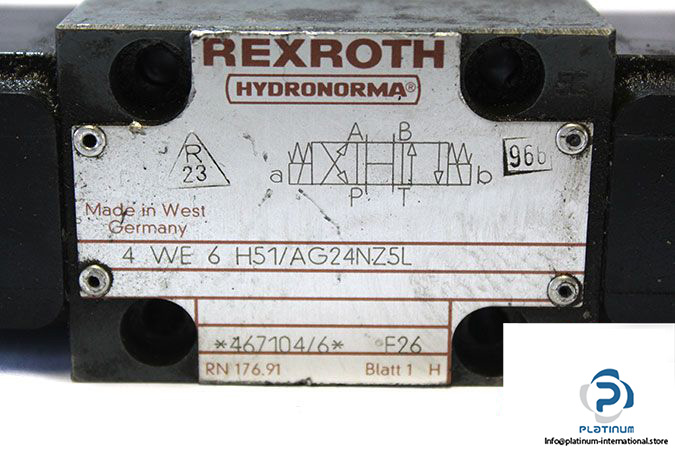

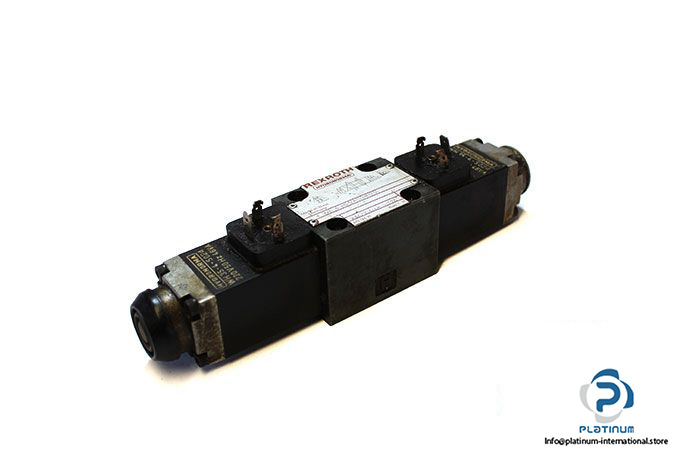

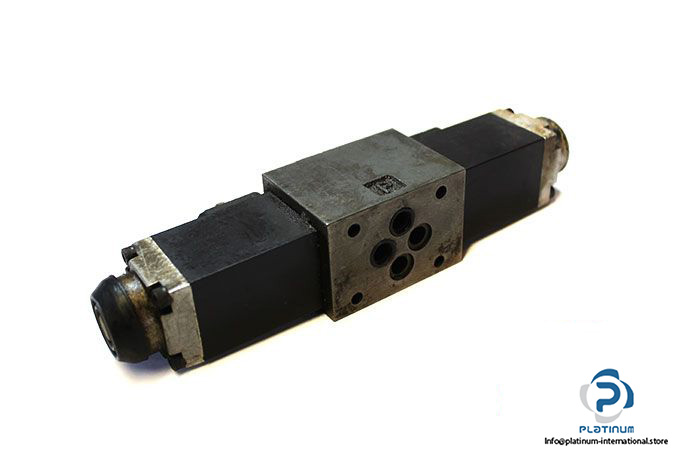

Rexroth 4 WE 6 H51/AG24NZ5L Directional Control Valve

Manufacturer: Rexroth

Type: Directional Control Valve

Model: 4WE6H51/AG24NZ5L

Size: 6

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum operating pressure at Ports A, B, P :350 bar

Maximum operating pressure at Ports T :210 bar

Maximum Flow Rate: 80 l/min

Hydraulic fluid temperature range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

Attachment: REXROTH WH35-4-S024 SOLENOID COIL

Manufacturer: Rexroth

Type: Solenoid Coil

Model: WH35-4-S024

Frequency: 50 Hz

Voltage: 46VA

Weight: 1.60 kg
