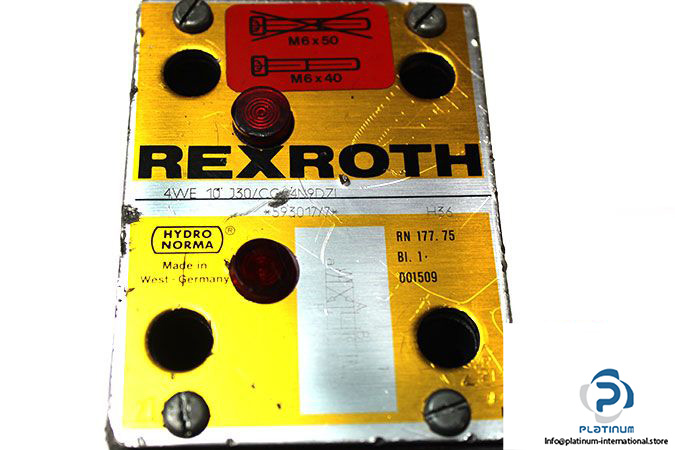

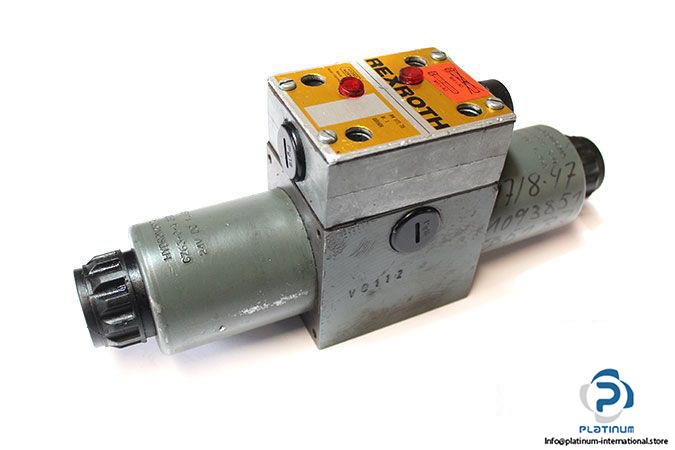

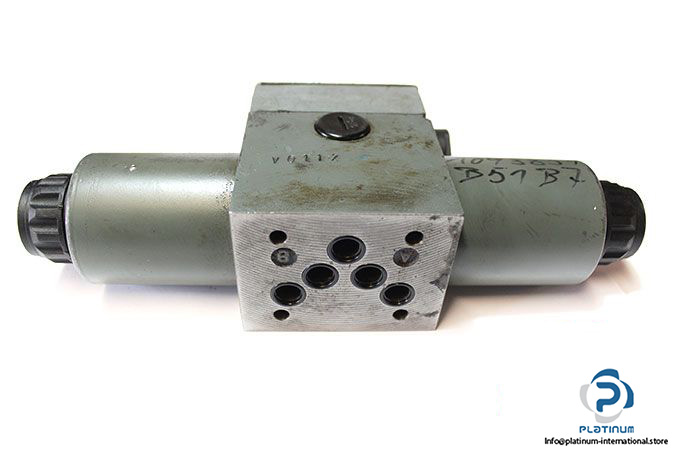

Rexroth 4WE 10 J30/CG24N9DZL Directional Control Valve

Manufacturer: REXROTH

Type: Directional Control Valve

Model: 4WE 10 J30/CG24N9DZL

Size: 10

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports A, B, P :315 bar

Maximum Operating Pressure at Port T :210 bar

Maximum Flow Rate: 120 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

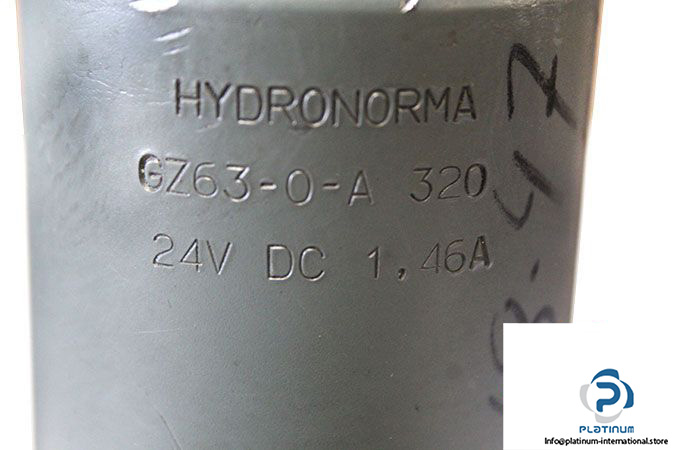

Attachment: HYDRONORMA GZ63-0-A 320 SOLENOID COIL

Manufacturer: HYDRONORMA

Type: Solenoid Coil

Model: GZ63-0-A

Voltage: 24 V DC

Current: 1.46 A

Weight: 6.42kg
