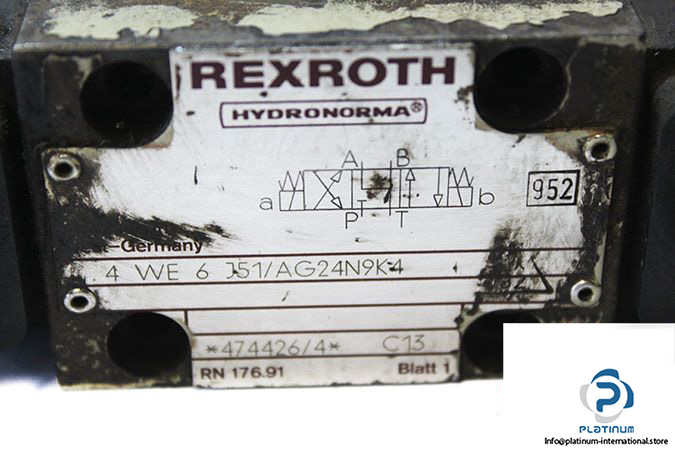

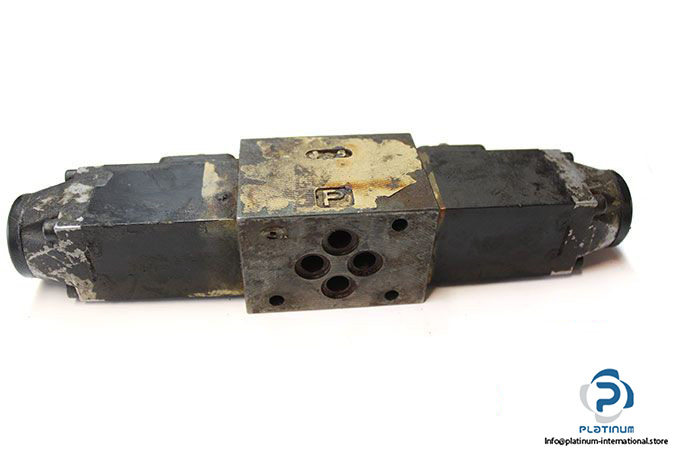

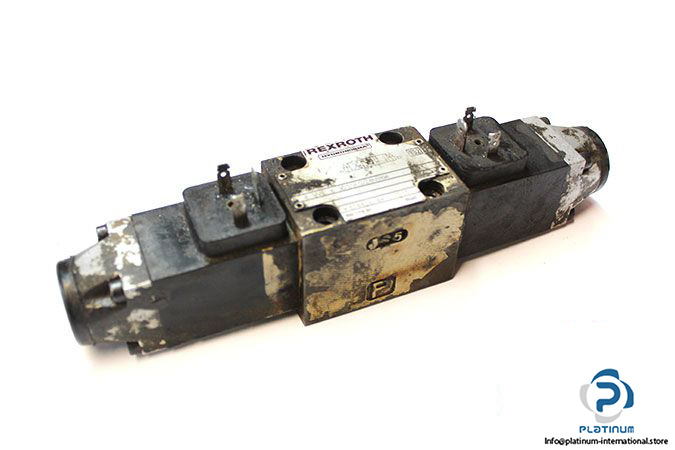

Rexroth 4WE 6 J51/AG24N9K4 Directional Control Valve

Manufacturer: REXROTH

Type: Directional Control Valve

Model: 4WE6J51/AG24N9K4

Size: 6

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports A, B, P :350 bar

Maximum Operating Pressure at Port T :210 bar

Maximum Flow Rate: 80 l/min (DC) , 60 l/min (AC)

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

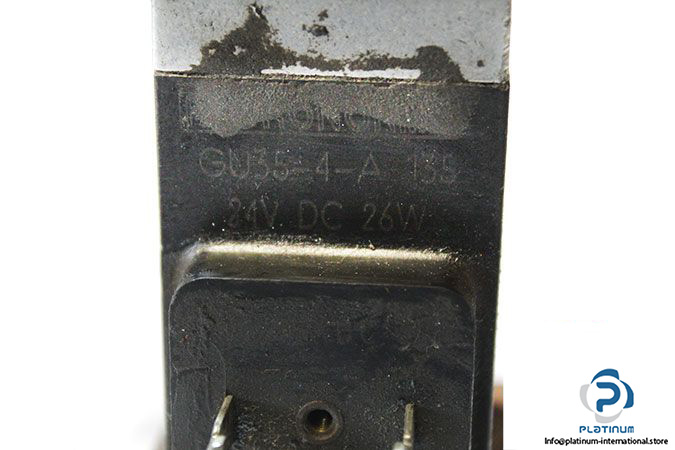

Attachment: HYDRONORMA GU35-4-A 135 SOLENOID COIL

Manufacturer: HYDRONORMA

Type: Solenoid Coil

Model:  GU35-4-A

Voltage: 24 V DC

Power : 26 W

Weight: 1.60 kg
