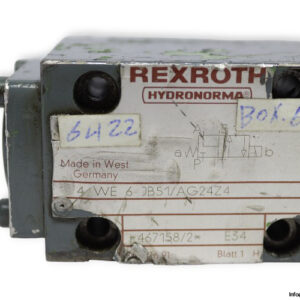

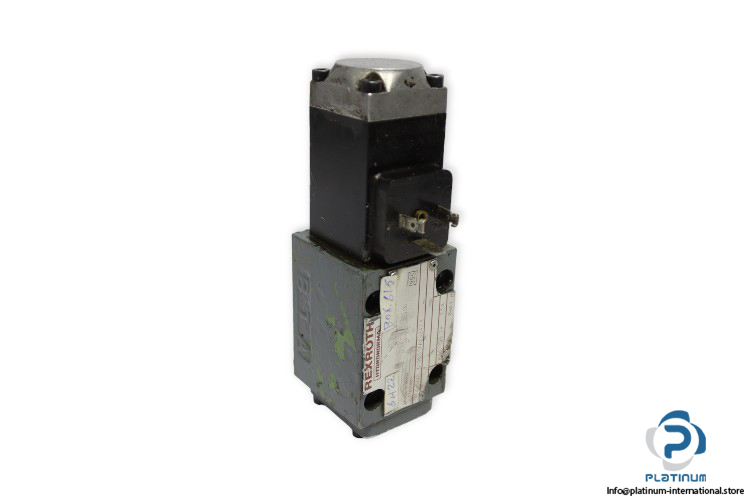

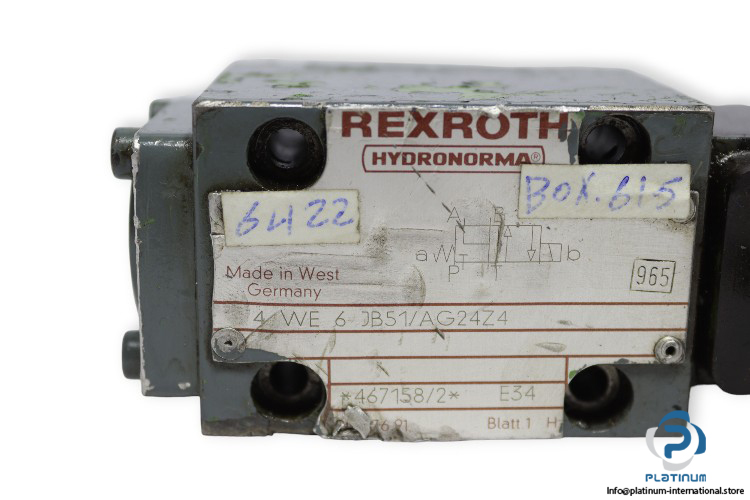

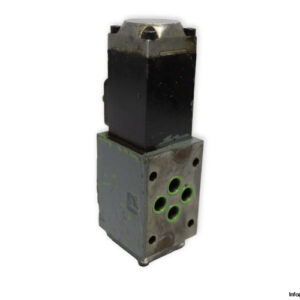

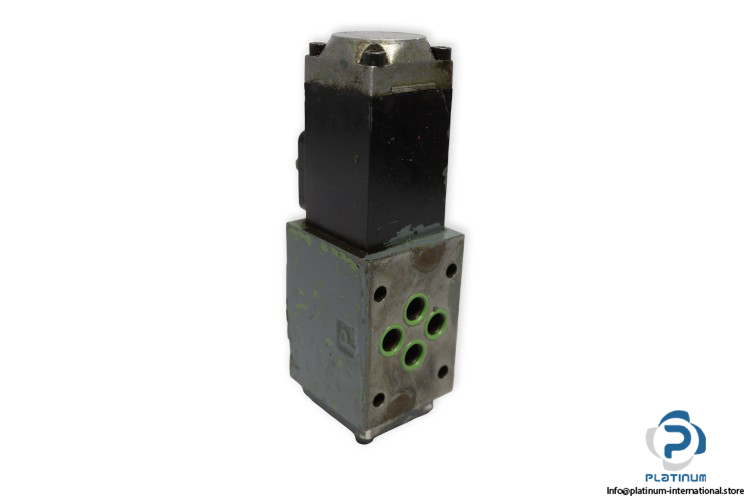

Rexroth 4WE 6 JB51/AG24Z4 Solenoid Operated Directional Valve

Manufacturer: REXROTH
Type: Solenoid Operated Directional Valve
Model: 4WE 6 JB51/AG24Z4

Nominal Size: NG 10
Type of Actuation: Electrically
Ambient Temperature Range: –30 …. +50 oC
Maximum Operating Pressure at Ports A, B, P :350 bar
Maximum Operating Pressure at Port T :210 bar
Maximum Flow Rate: 80 l/min (DC)
Hydraulic Fluid Temperature Range: –30 …. +80 oC
Viscosity Range: 2.8 … 500 mm2/s
Connection: Sup-plate

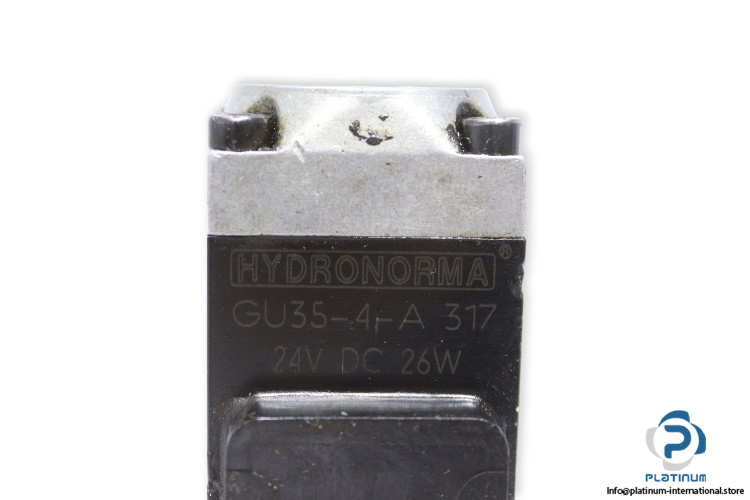

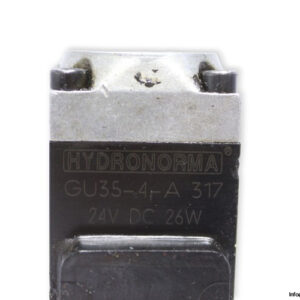

Attachment: REXROTH GU35-4-A 317 SOLENOID COIL
Manufacturer: REXROTH
Type: Solenoid Coil
Model:  GU35-4-A 317

Voltage: 24V DC
