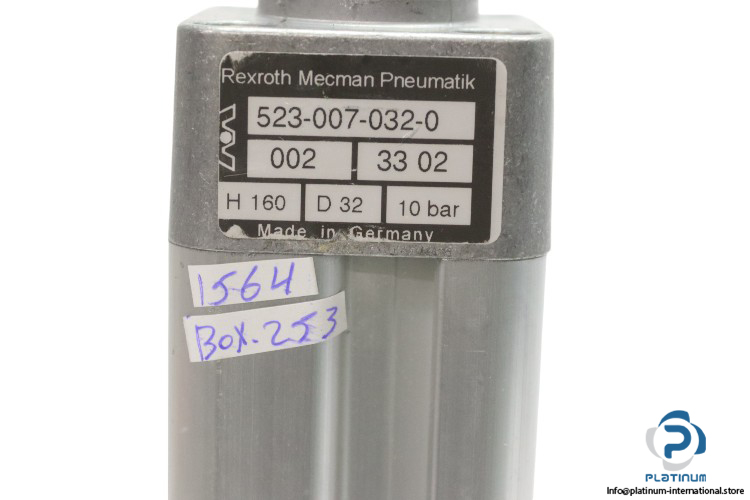

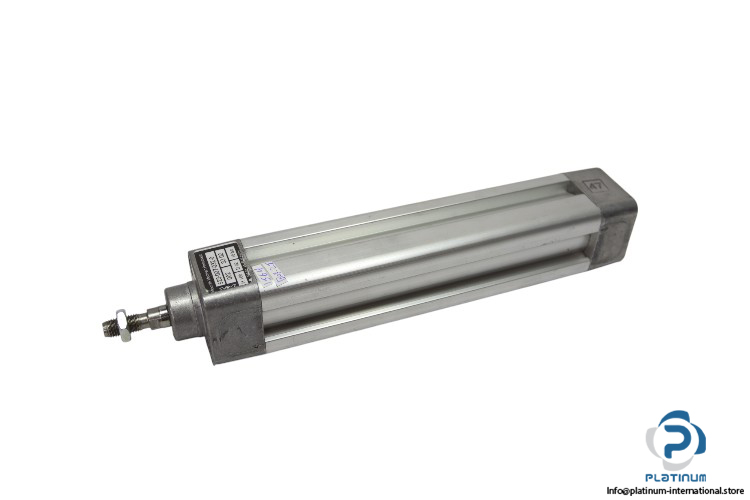

Rexroth 523-007-032-0 ISO Cylinder
New
In stock1 unitReady to ship
ISO Cylinder
The REXROTH ISO Cylinder 523-007-032-0 features a 32 mm bore diameter and 160 mm stroke length. With a double-acting operation mode and a pneumatic connection of G 1/8, it provides reliable performance for industrial applications.523-007-032-0ActingAirboreCompressedconnectionCylinderdiameterDoubleEndISOLengthmaleMaxPistonPneumaticPressureRexrothRODSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
REXROTH ISO Cylinder 523 007 032 0
The REXROTH ISO Cylinder 5230070320 is a reliable pneumatic actuator designed for high-performance operation in various industrial applications. This cylinder is equipped with a double-acting operation mode, providing efficient movement with compressed air.
Manufacturer: REXROTH
Type: ISO Cylinder
Model: 523-007-032-0
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke Length | 160 mm |
| Bore x Stroke | 32 x 160 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 50 x 260 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
