Rexroth CKK-145-NNG1 Compact Module With Ball Screw Drive

In stock1 unitReady to ship

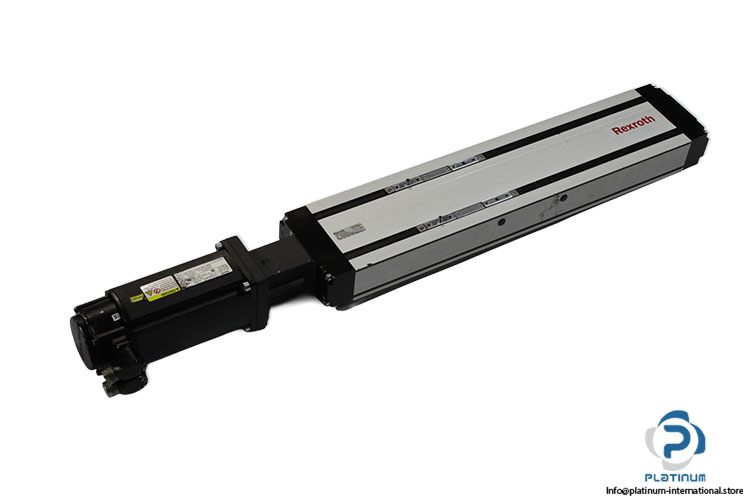

Compact Module with Ball Screw Drive The Rexroth CKK-145-NNG1 is a compact linear module with a ball screw drive and integrated MSK050C synchronous servo motor, designed for precise positioning, high-speed motion, and demanding industrial automation applications.

Manufacturer
REXROTH
SKU
1100504
Category
Others
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

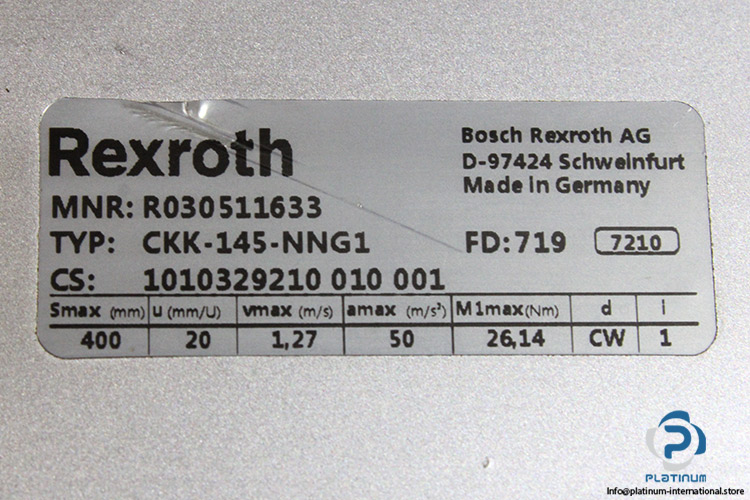

MNRR030511633
CS no1010329210 010 001
FD719
Size145
Linear axes variantBall screw assembly
maximum travel stroke length400 mm
Gear ratio1
linear velocity max.1.27 m/s
Acceleration rate max.50 m/s²
Maximum drive torque max.26.14 Nm
Screw lead/pitch20 mm
Drive directionCW (Clockwise)

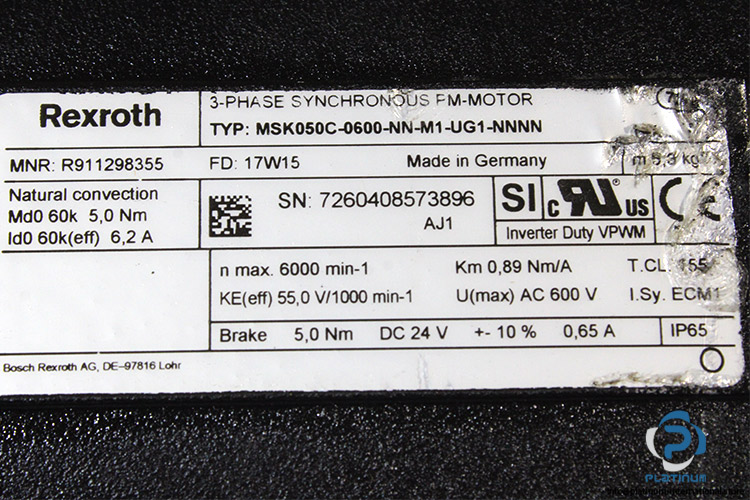

Attached withRexroth R911298355 Synchronous Servo Motor
Model, MotorMSK050C-0600-NN-M1-UG1-NNNN
MRN, MotorR911298355
FD, Motor17W15
Stall Torque, Motor5.0 Nm
Stall Current, Motor6.2 A
Max Speed, Motor6000 rpm
Constant Voltage, Motor55 V/1000 min-1
Constant Torque, Motor0.89 Nm/A
Max Voltage, Motor600 VAC
Protection Class, MotorIP65
Brake Voltage, Motor24 VDC
Brake Torque, Motor5 Nm
Brake Current, Motor0.65 A
Stock keyCON003
ConditionNew
SKU1100504
Weight20,4
