Rexroth DB 10-2-30/315 Pilot Operated Pressure Relief Valve

Name: REXROTH DB 10-2-30/315 PILOT OPERATED PRESSURE RELIEF VALVE
Brand: REXROTH
SKU: 985073
Availability: LimitedAvailability

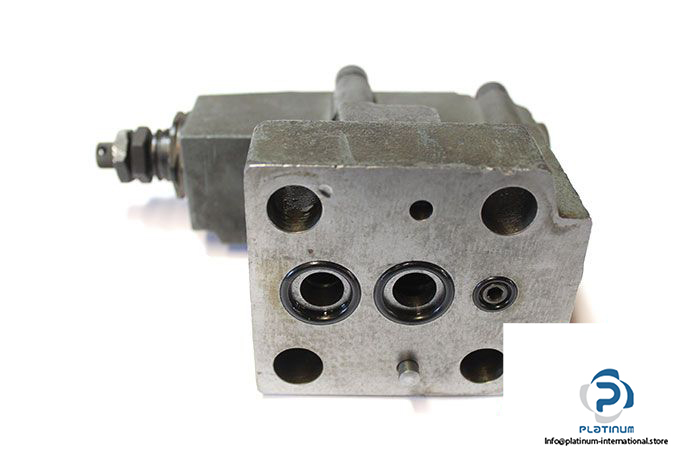

rexroth-db-10-2-30_315-pressure-relief-valve-pilot-operated

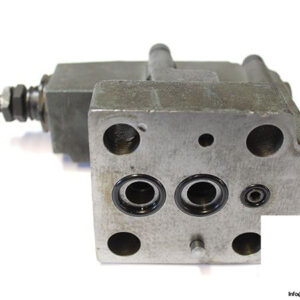

rexroth-db-10-2-30_315-pressure-relief-valve-pilot-operated-2

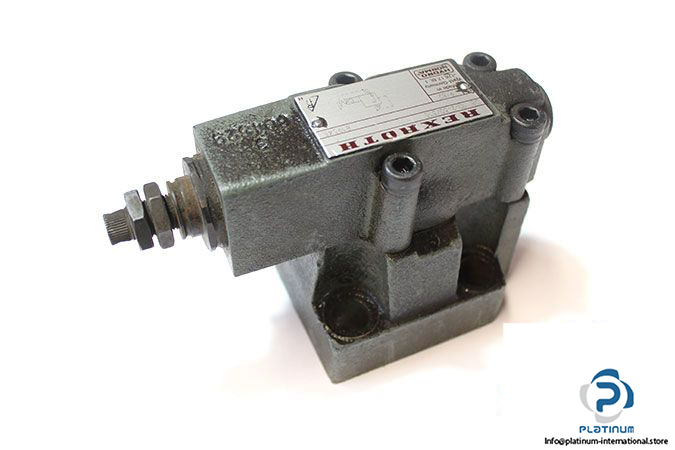

rexroth-db-10-2-30_315-pressure-relief-valve-pilot-operated-1

Used

Available on request

PILOT OPERATED PRESSURE RELIEF VALVE

Rexroth Hydronorma NG10 pilot operated pressure relief valve with sleeve adjustment, rated at 315 bar and suitable for high-performance hydraulic systems.

Manufacturer

REXROTH

SKU

985073

Category

Pressure Control Valves

Condition

Used

315 bar connection Control High Hydraulic hydronorma Industrial ng10 operated Pilot Plate Pressure Relief Rexroth sub Valve

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

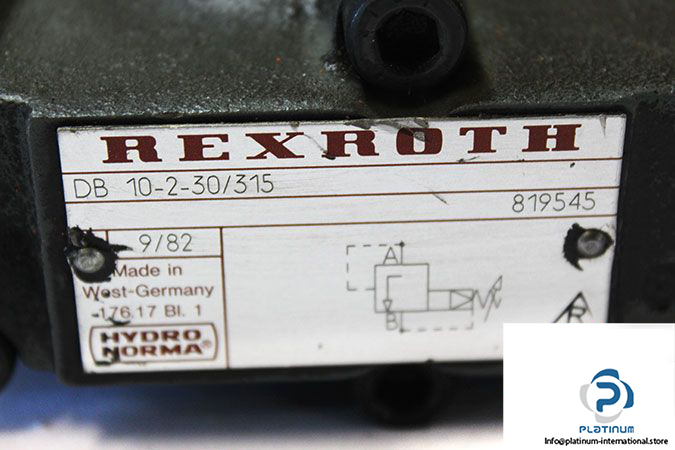

REXROTH HYDRONORMA DB10230315 PILOT OPERATED PRESSURE RELIEF VALVE

The Rexroth Hydronorma DB 10-2-30/315 is a high-performance pilot operated pressure relief valve engineered for hydraulic systems requiring precise pressure control and reliable operation. Designed for durability and consistent performance in demanding industrial applications.

Manufacturer: REXROTH HYDRONORMA

Type: Pilot Operated Pressure Relief Valve

Model: DB 10-2-30/315

Part No.: 819545

Fluid	Oil
Size	NG10
Adjustment Element	Sleeve with Hexagon and Protective Cap
Pressure Setting	315 bar
Maximum Operating Pressure at Ports P, X	350 bar
Maximum Operating Pressure at Port T	315 bar
Maximum Backpressure at Port Y	315 bar
Maximum Flow Rate	250 l/min
Viscosity Range	10 / 800 mm²/s
Connection	Sub-plate
Ambient Temperature Range	-30 / 80 °C
