Rexroth DB 30-2-30/150YU/B Pilot Operated Pressure Relief Valve

Name: REXROTH DB 30-2-30/150YU/B PILOT OPERATED PRESSURE RELIEF VALVE
Brand: REXROTH
SKU: 984345
Availability: LimitedAvailability

rexroth-DB-30-2-30_150YU_B-pressure-relief-valve-pilot-operated

rexroth-db-30-2-30_150yu_b-pressure-relief-valve-pilot-operated-2

rexroth-db-30-2-30_150yu_b-pressure-relief-valve-pilot-operated-1

Used

In stock2 unitsReady to ship

PILOT OPERATED PRESSURE RELIEF VALVE

Rexroth Hydronorma single-stage pilot operated pressure relief valve with NG30 size and 150 bar setting, supplied with a matching hydraulic base for high-pressure hydraulic systems.

Manufacturer

REXROTH

SKU

984345

Category

Pressure Control Valves

Condition

Used

150 bar Components Control flow High Hydraulic hydronorma Industrial mounted ng30 operated Pilot Plate Pressure Relief Rexroth sub Valve

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

REXROTH HYDRONORMA DB30230150YUB PILOT OPERATED PRESSURE RELIEF VALVE WITH HYDRAULIC BASE

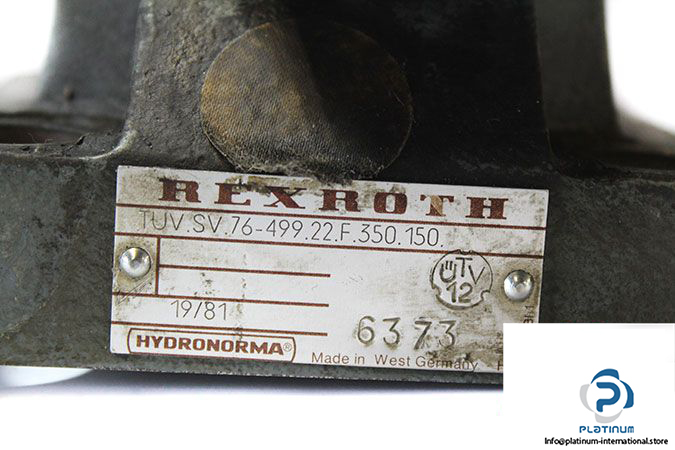

The Rexroth Hydronorma DB 30-2-30/150YU/B is a high-performance pilot operated pressure relief valve designed for precise hydraulic pressure control. Combined with the Rexroth Hydronorma TUV.SV.76-499.22.F.350.150 hydraulic base, it ensures reliable operation in demanding industrial applications.

Manufacturer: Rexroth Hydronorma

Type: Pilot Operated Pressure Relief Valve

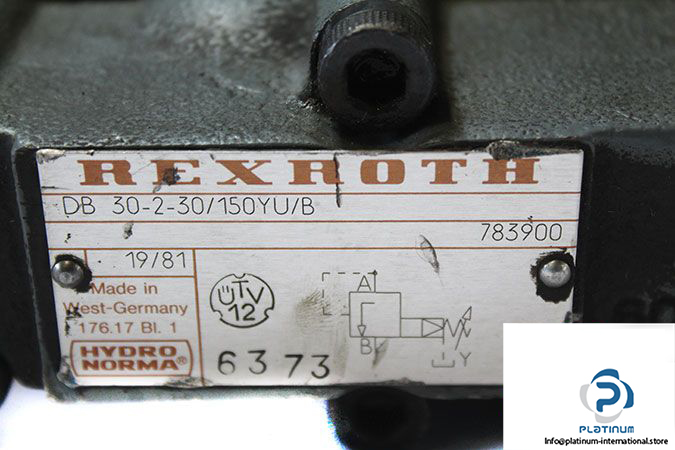

Model: DB 30-2-30/150YU/B

Attachment

Fluid	Oil
Size	NG30
Adjustment Element	Sleeve with hexagon and protective cap
Pressure Setting	150 bar
Max Operating Pressure (Ports P, X)	350 bar
Max Operating Pressure (Port T)	315 bar
Max Backpressure (Port Y)	315 bar
Max Flow Rate	650 l/min
Ambient Temperature Range	-30 / 80 °C
Viscosity Range	10 / 800 mm²/s
Connection	Sub-plate
