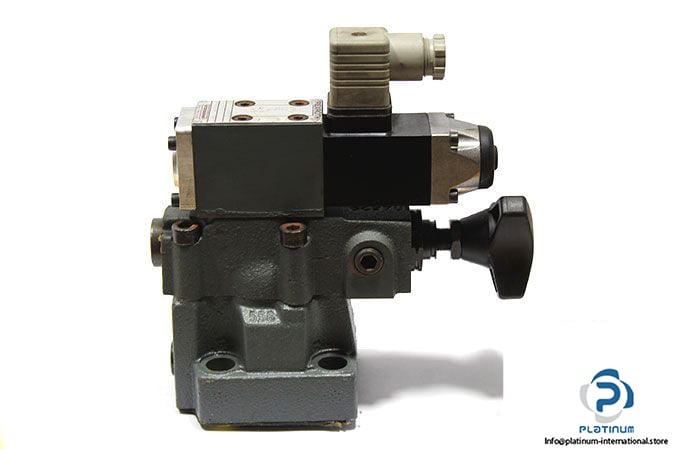

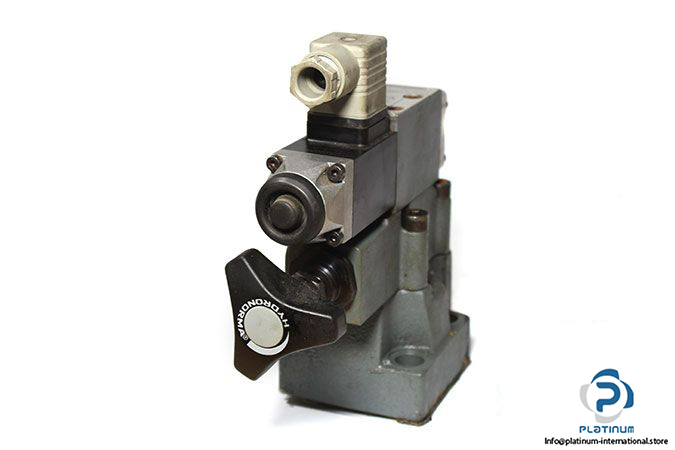

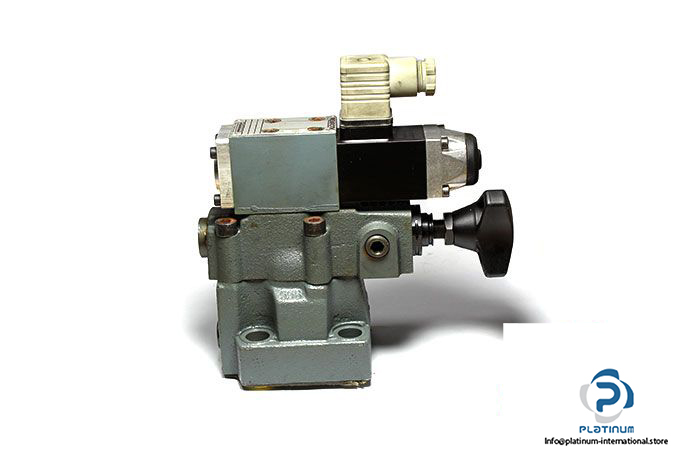

Rexroth DBW 10 B1-31/100UG24NZ4 Pilot Operated Pressure Relief Valve
Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Pressure Relief Valve

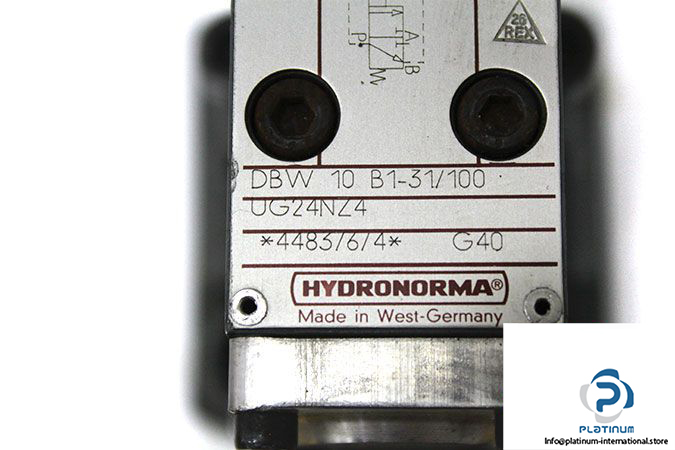

Model: DBW 10 B1-31/100UG24NZ4
Nominal Size: 10
Type of Actuation: Electrical
Max. Set Pressure: 100 bar
Max. Operating Pressure (Port P, X): 350 bar
Max. Operating Pressure (Port T): 315 bar
Nominal Flow Rate: 250 L/min
Hydraulic Connection: Sub-plate
Seals: NBR
Fluid Temperature Range: -20 ….. +80 °C
Voltage Supply per Coil: 24 VDC
Weight: 4.20 kg
