Rexroth H-4 WEH 25 U10B50/6AG2Z4 Q0G24 Directional Spool Valve

BOSCH Rexroth H-4 WEH 25 U10B50/6AG2Z4 Q0G24 Directional Spool Valve

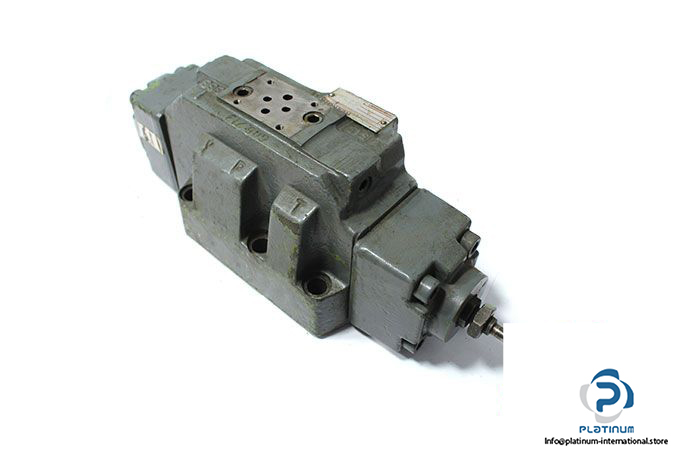

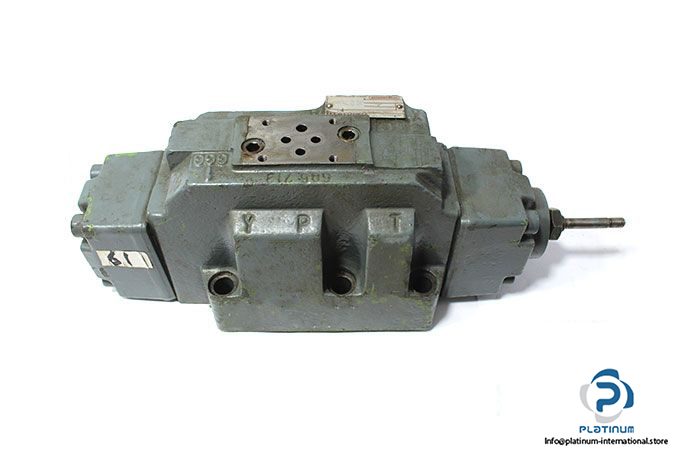

The BOSCH Rexroth H-4 WEH 25 U10B50/6AG2Z4 Q0G24 Directional Spool Valve is an electro-hydraulic valve designed for precise control of hydraulic flow. With a nominal size of NG25 and a high-pressure capacity, it is built for demanding industrial applications. This valve operates with a sub-plate hydraulic connection, ensuring efficient performance in hydraulic systems requiring high reliability and precision.

• Manufacturer: BOSCH Rexroth
• Type: Directional Spool Valve

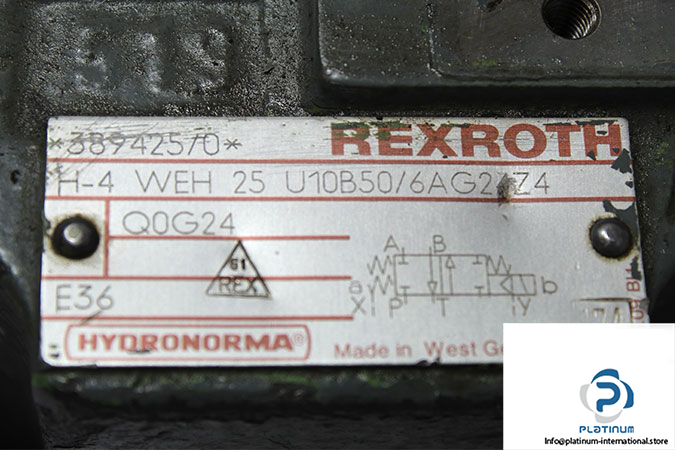

• Model: H-4 WEH 25 U10B50/6AG2Z4 Q0G24

Technical Specifications

• Nominal Size: NG25
• Type of Actuation: Electro-hydraulic
• Max. Working Pressure (Port P, A, B): 350 bar
• Max. Pressure (Port T): 250 bar
• Hydraulic Connection: Sub-Plate
• Fluid Temperature Range: -20 to 80 °C
• Direct Voltage: 24 V
