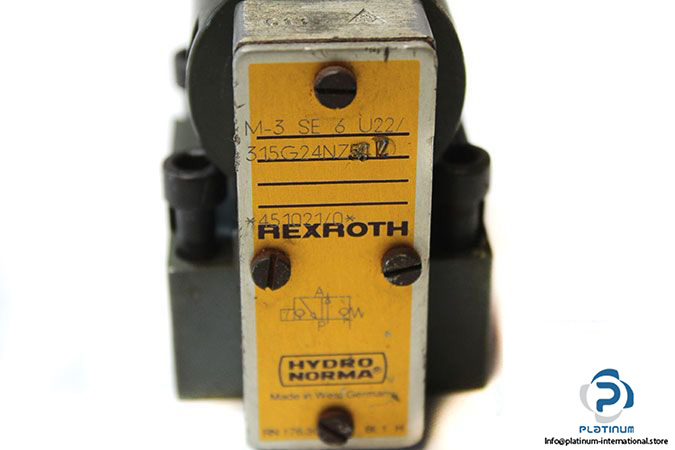

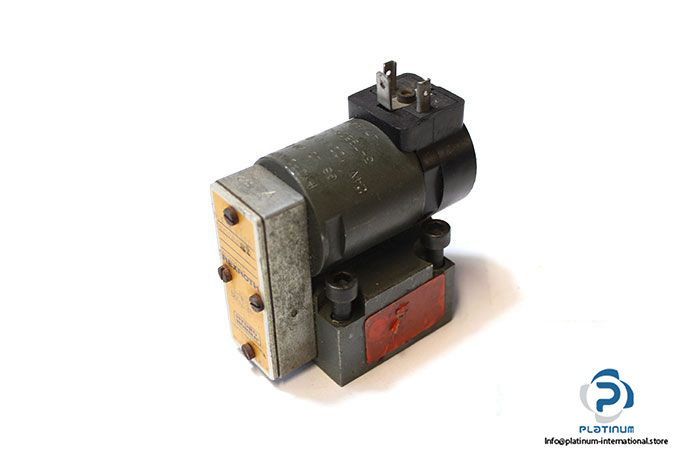

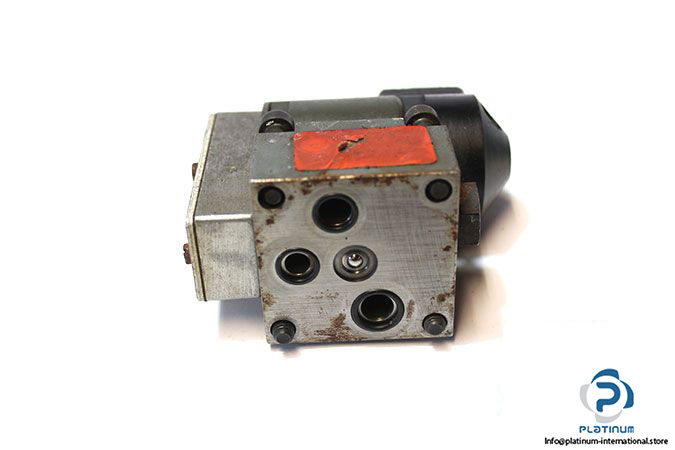

Rexroth M-3 SE 6 U22/315G24NZ5L Directional Seat Valve

Manufacturer: Rexroth

Type: Directional Seat Valve

Model: M-3SE6U22/315G24NZ5L

Size: 6

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum operating pressure:420 bar

Maximum Flow Rate: 25 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

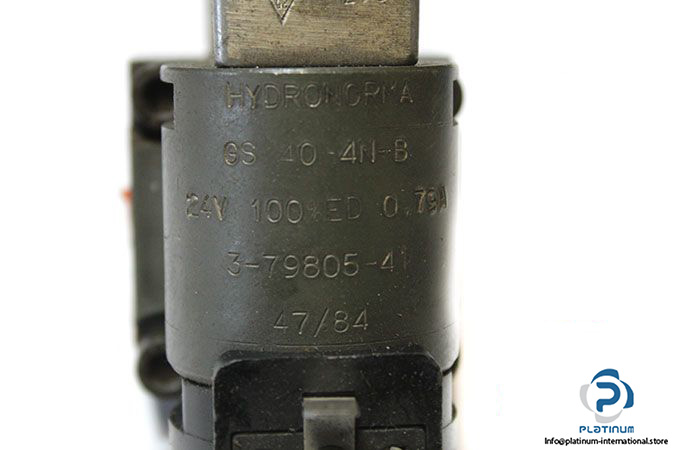

Attachment: HYDRONORMA GS 40-4N-B SOLENOID COIL

Manufacturer: HYDRONORMA

Type: Solenoid Coil

Model: GS 40-4N-B

Current:0.79 A

Voltage: 24 VDC

Weight: 1 kg
