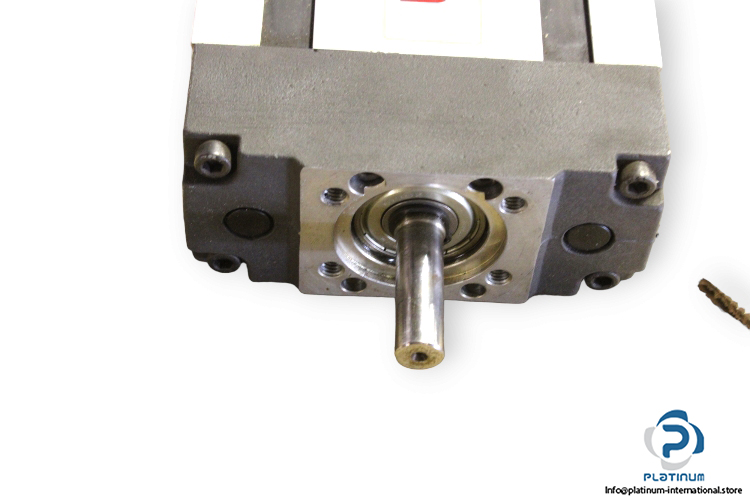

Rexroth R005522435 Compact Module CKK

Manufacturer: BOSCH REXROTH

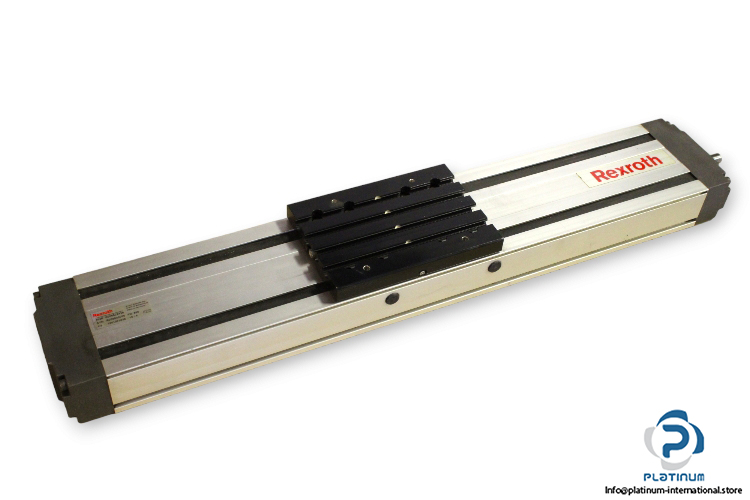

Type: COMPACT MODULE CKK-110-NN-1

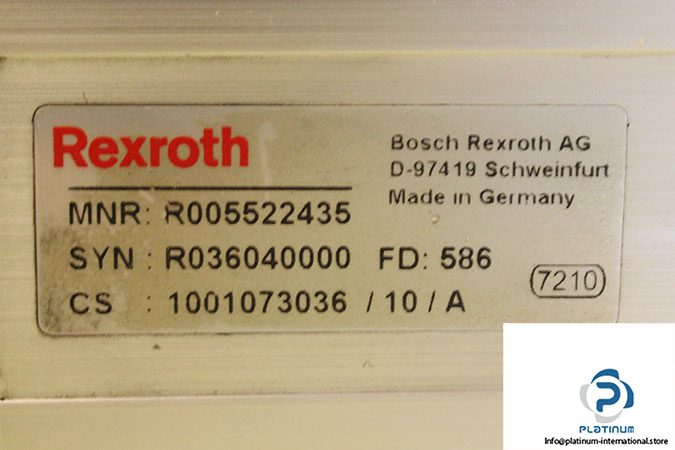

MNR: R005522435
SYN: R036040000
CS: 1001073036 /10/A

Size: 110
Design Type: CKK; Compact Modules with Ball Screw Assembly

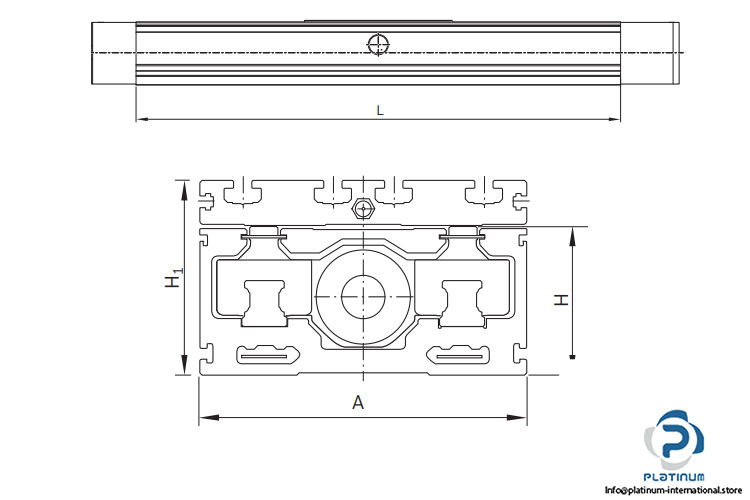

Dimensions:
A: 110 mm
H: 50 mm
H₁: 66 mm
Connection Plate Length: 155 mm
Dynamic load capacitys:
For Guideway C_gw: 32035 N
For Ball Screw Assembly C_bs: 10350 N
For Fixed Bearing C_fb: 13,400 N
Ball Screw Assemb.: 16x5Rx3-4
Maximum permissible loads:
M_{x max}: 396 Nm
M_{y max}: 510 Nm
M_{z max}: 240 Nm
F_{y max}: 5650 N
F_{(z1,z2) max}: 12000 N
