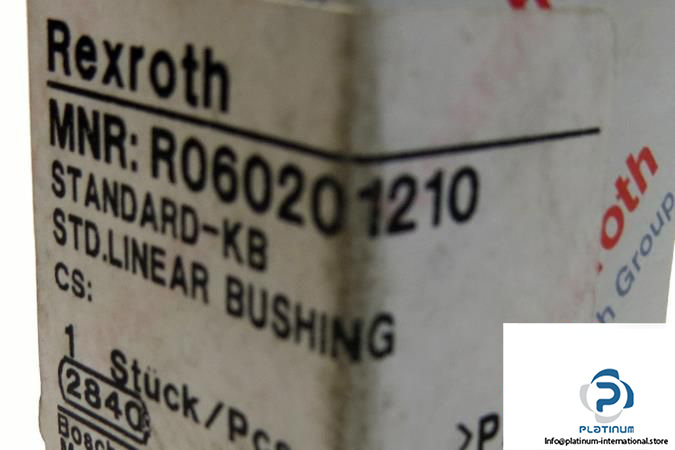

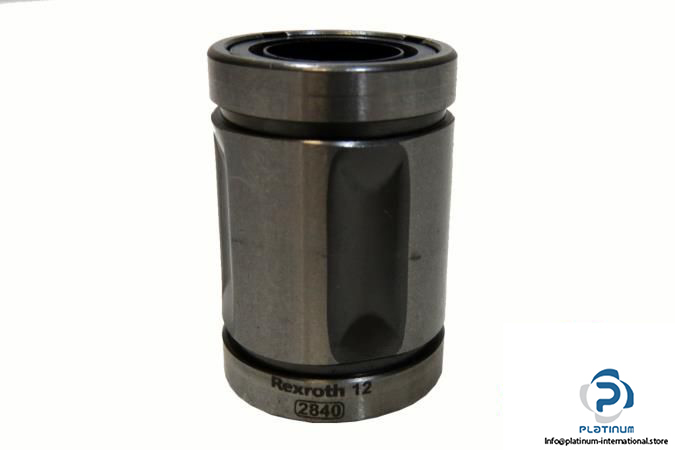

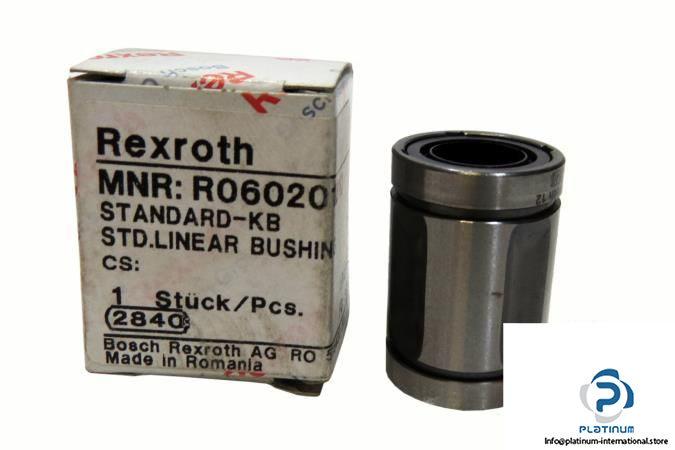

Rexroth R060201210 Standard Linear Bushing
Manufacturer: REXROTH
Type: Standard Linear Bushings
MNR: R0602 012 10
Shaft Diameter d: 12 mm
Design type: closed
No. of Ball Circuit: 4
Load ratings
dynamic load capacity C max: 480 N
dynamic load capacity C min: 420 N
Static load capacity C0 MAX: 400 N
Static load capacity C0 MIN: 280 N
Dimensions:
D: 22 mm
C: 32 mm
C1: 22.6
C2: 1.3 mm
D1: 20.5 mm
Permissible Ambient Temperature: -10 … +80 °C
Sealing: Two wiper seals
