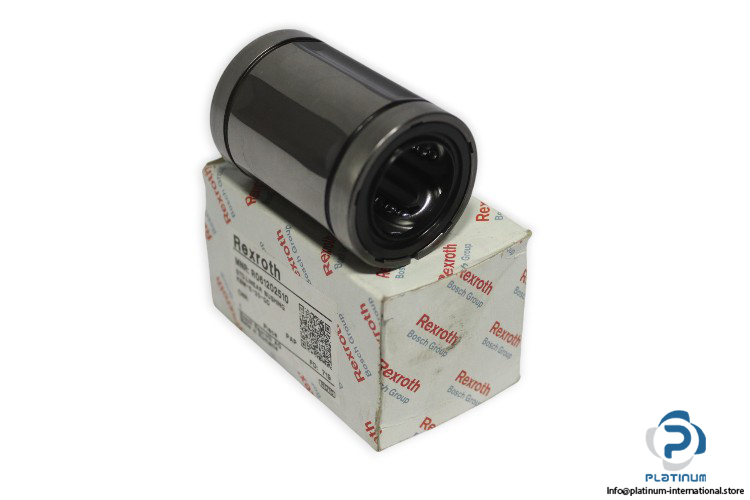

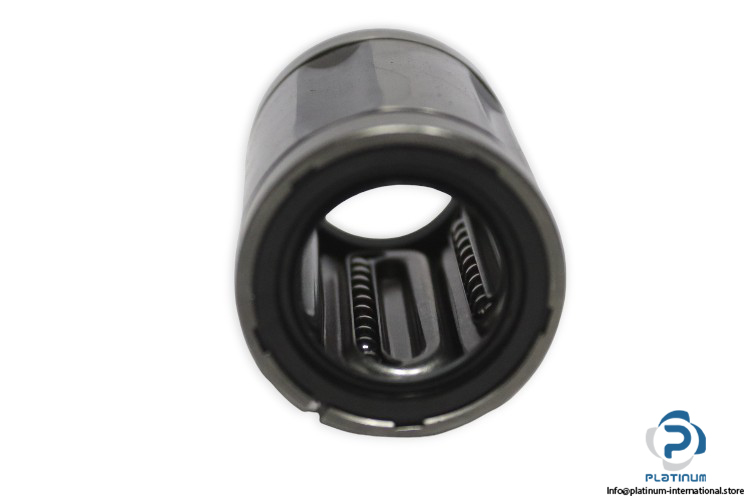

Rexroth R061202510 Standard Linear Bushing

Manufacturer: REXROTH
Type: STANDARD LINEAR BUSHING KBM

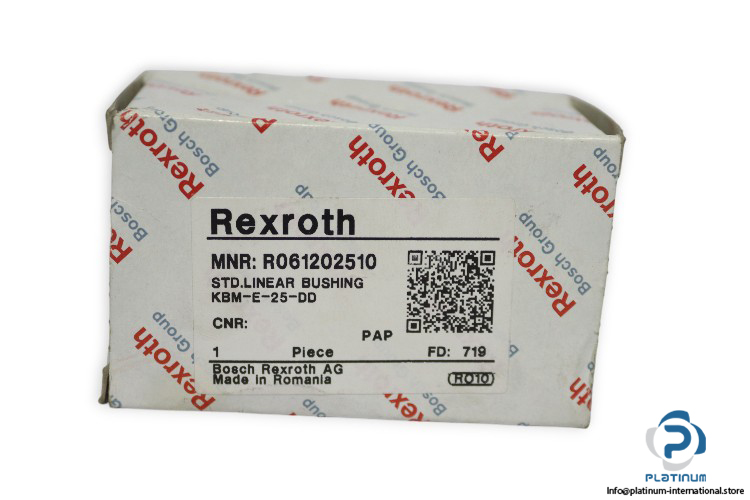

MNR: R0612 025 10

Format of linear bushings: E – Adjustable

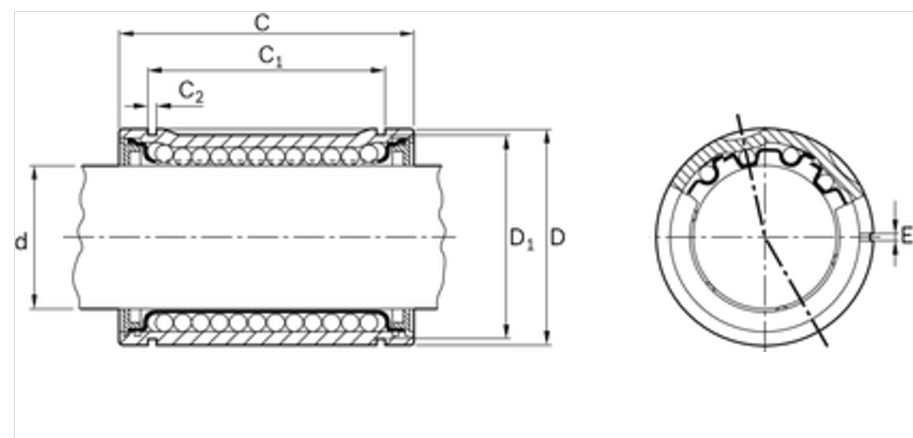

Dimensions:
Shaft diameter d: 25 mm
Outer diameter D: 40 mm
Length of linear bushing C: 58 mm
C1: 43.7 mm
C2: 1.85 mm
D1: 38.5 mm
E: 2 mm
Maximum Acceleration Travel amax:  100 m/s2
Max. Permissible Speed v_max: 2.5 m/s
Breakaway force: 14 N
Maximum dynamic load capacity Cmax: 2480 N
Seals: With two integrated wiper seals
Permissible Ambient Temperature: -10 … +80 °C
