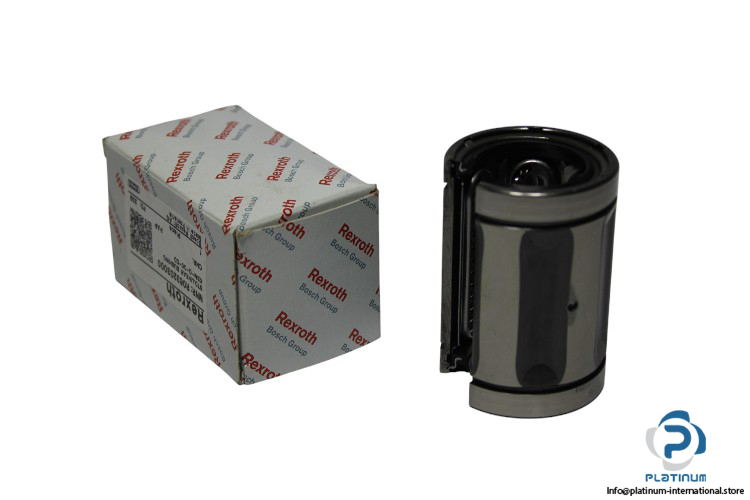

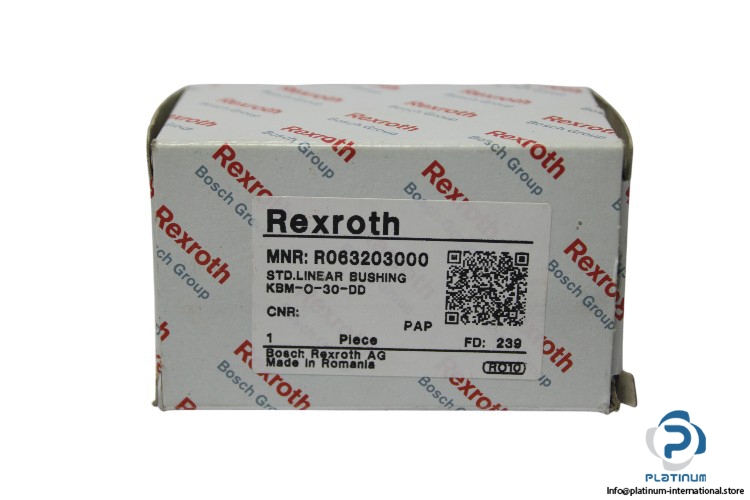

Rexroth R063203000 Standard Linear Bushing

Rexroth STANDARD LINEAR BUSHING KBM-O-30-DD

The Rexroth STANDARD LINEAR BUSHING KBM-O-30-DD is a high-quality linear bushing designed for precise motion control in industrial applications. With a shaft diameter of 30 mm and a dynamic load rating of 2890 N, this bushing ensures durability and efficient performance under heavy loads and high speeds. The product MNR is R063203000.

🔧 Technical Specifications:

• Manufacturer: Rexroth
• Type: STANDARD LINEAR BUSHING KBM-O-30-DD
• Manufacturer Number (MNR): R063203000

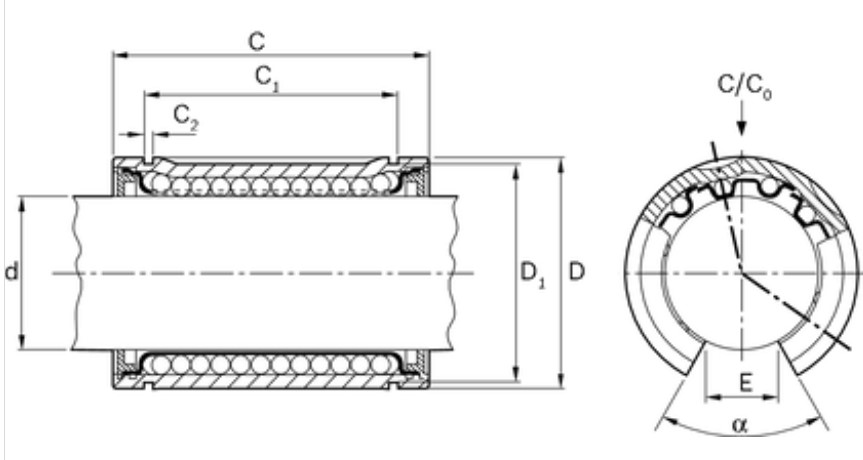

• Dimensions:
• Shaft Diameter d0: 30 mm
• Outer Diameter D: 47 mm
• Length of Linear Bushing: 68 mm
• C1: 51.7 mm
• C2: 1.85 mm
• D1: 44.5 mm
• E: 12.5 mm
• Design Type: Open
• Dynamic Load Rating C: 2890 N
• Static Load Rating C0: 2390 N
• Breakaway Force: 24 N
• Max. Acceleration a max: 100 m/s²
• Angle α: 50 °
• Seals: 2 Integrated Wiper Seals
• Permissible Ambient Temperature: -10 / +80 °C

Designed for precision and efficiency, this Rexroth linear bushing is ideal for use in a wide range of motion control systems, ensuring high performance in industrial environments.
