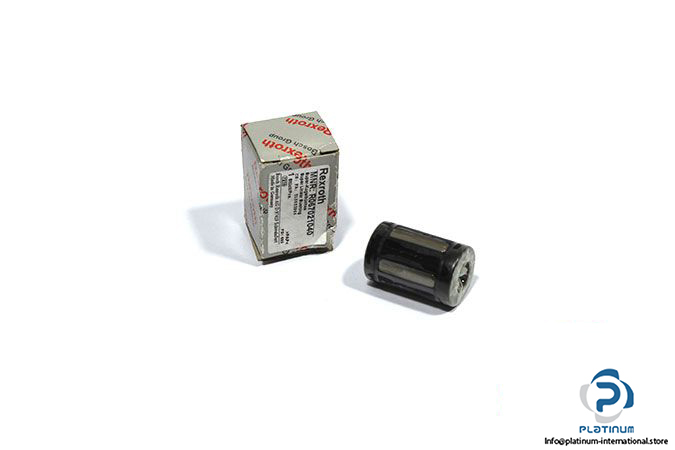

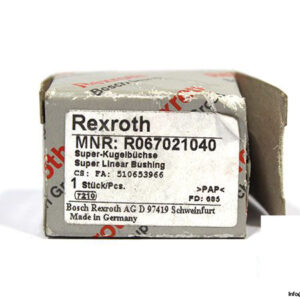

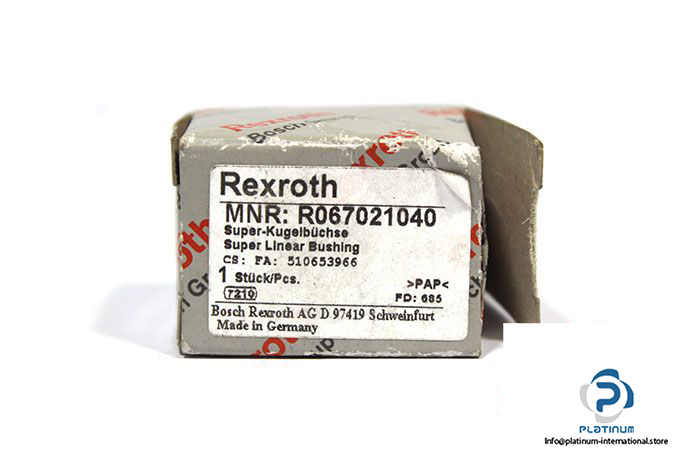

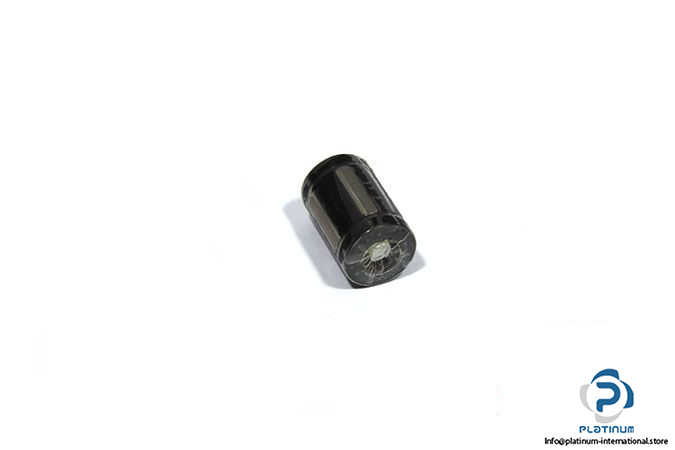

Rexroth R067021040 Super Linear Bushing A

Manufacturer: BOSCH REXROTH

Type: SUPER LINEAR BUSHING KBA

MNR: R0670 210 40

Shaft diameter d: 10 mm

Form: Closed

Rows of Balls: 5

Friction Force F_R: 0.5 N

Breakaway Force: 1 N

Maximum Acceleration Travel a_max: 150 m/s²

Max. Permissible Speed v_max: 3 m/s

Dynamic Load Capacity:

C_min: 600 N

C_max: 820 N

Static Load Capacity:

C_0min: 330 N

C_0max: 480 N

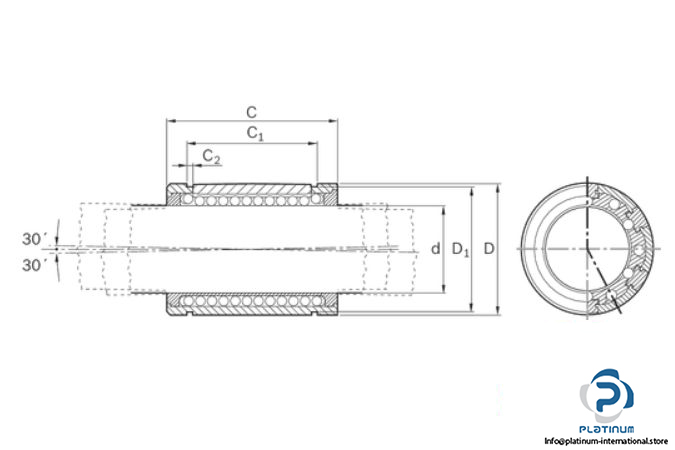

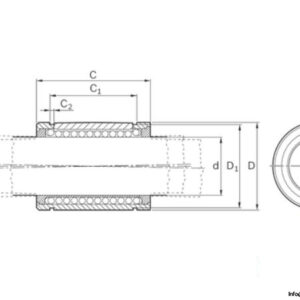

Dimensions:

Outer diameter D: 19 mm

Length C: 29 mm

Seals: With two integrated wiper seals

Permissible Ambient Temperature: -10 … +80 °C

Weight: 0.02 kg
