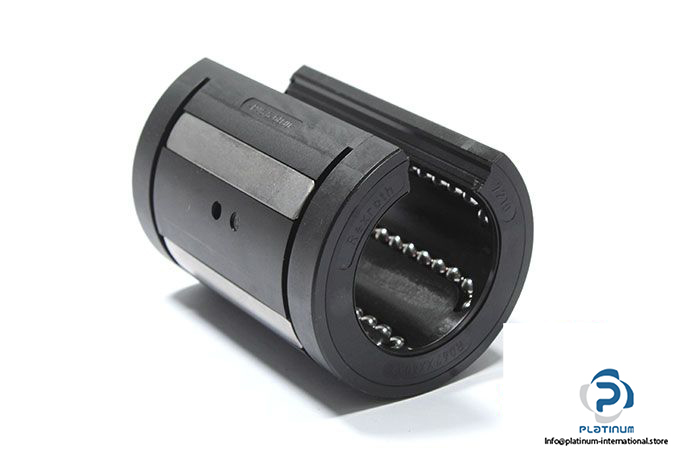

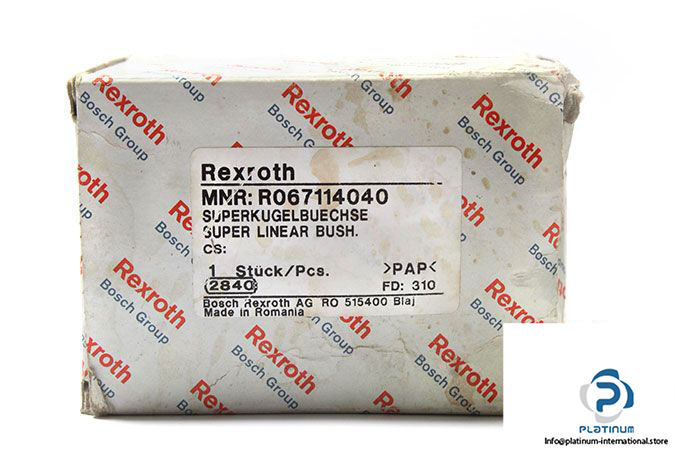

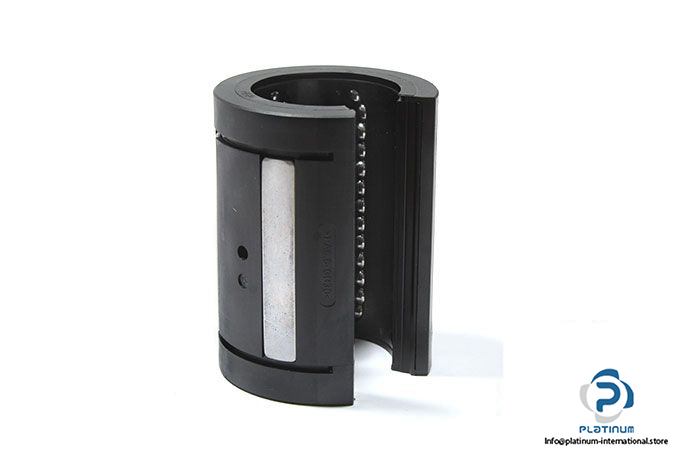

Rexroth R067114040 Super Linear Bushing A
Manufacturer: REXROTH
Type: Super Linear Bushing A
MNR: R0671 140 40
Dimensions:
Shaft diameter d0: 40 mm
Model: Open
Rows of Balls: 5
Friction Force FR: 1.5 N
Breakaway Force: 4 N
Maximum Acceleration Travel amax: 150 m/s2
Max. Permissible Speed vmax: 3 m/s
Dynamic Load Capacity C: 8620 N
Static Load Capacity C0: 4480 N
Dimensions:
D: 62 mm
C: 80 mm
Angle α: 56 °
C1: 60.3 mm
C2: 2.15 mm
E1: 19.5 mm
Sealing: with one seal
Permissible Ambient Temperature: -10 °C … +80 °C
