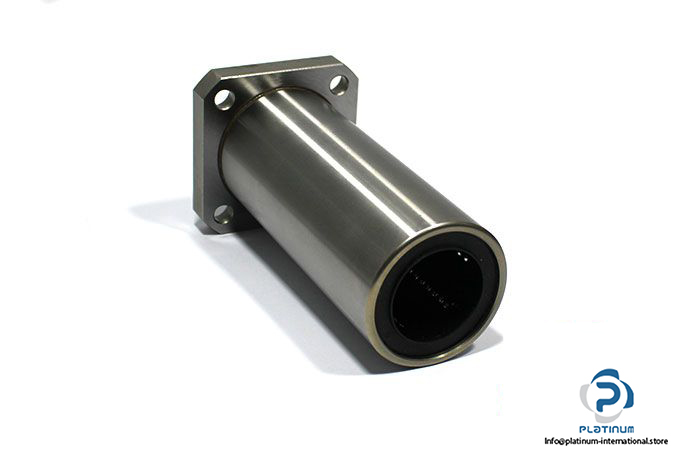

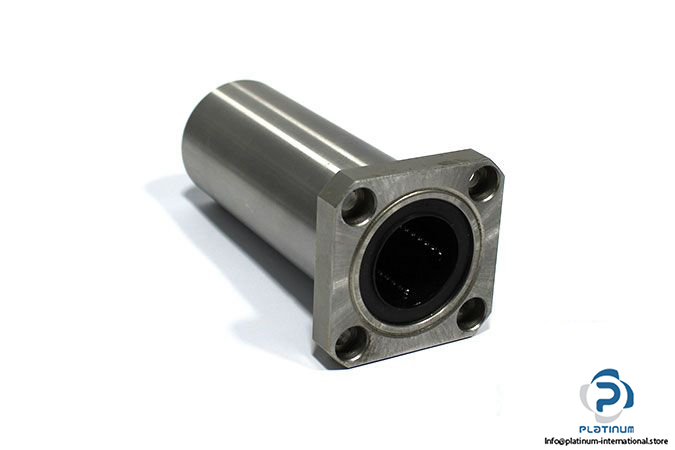

Rexroth R074153000 Standard Linear Bushing Flanged Type

Manufacturer: BOSCH REXROTH

Type: Standard Linear Bushing KBMFT-30-DD

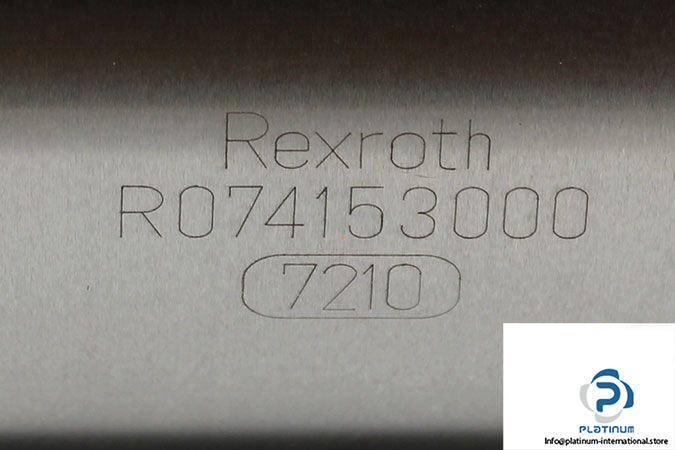

MNR: R0741 530 00

Shaft diameter d: 30 mm

Design type: Flanged Type, Tandem, Normal

Rows of Balls: 6

Friction Force F_R: 6 N

Breakaway Force: 18 N

Maximum Acceleration Travel a_max: 100 m/s²

Max. Permissible Speed v_max: 2.5 m/s

Static longitudinal moment load capacity M_L0: 82 Nm

Dynamic Load Capacity:

C_min: 2000 N

C_max: 2150 N

Static Load Capacity:

C_0min: 4000 N

C_0max: 5000 N

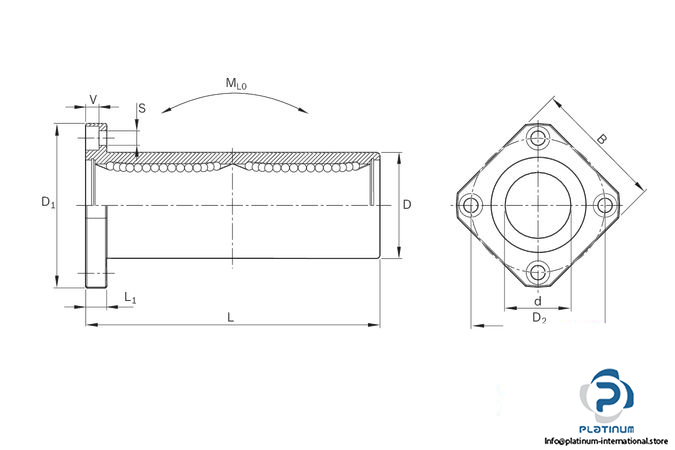

Dimensions:

B: 60 mm

D: 47 mm

L: 123 mm

Seals: With two integrated wiper seals

Permissible Ambient Temperature: -10 … +80 °C

Weight: 0.73 kg
