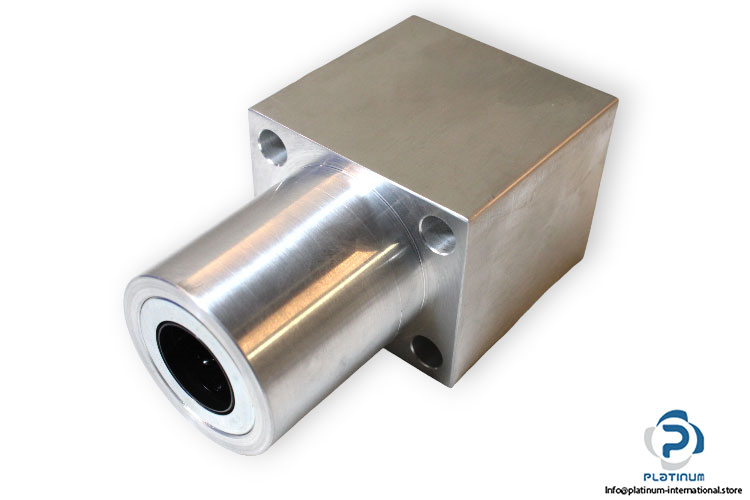

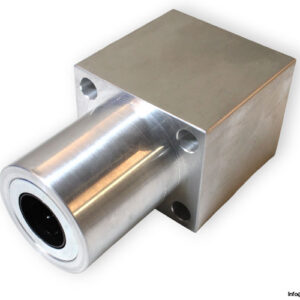

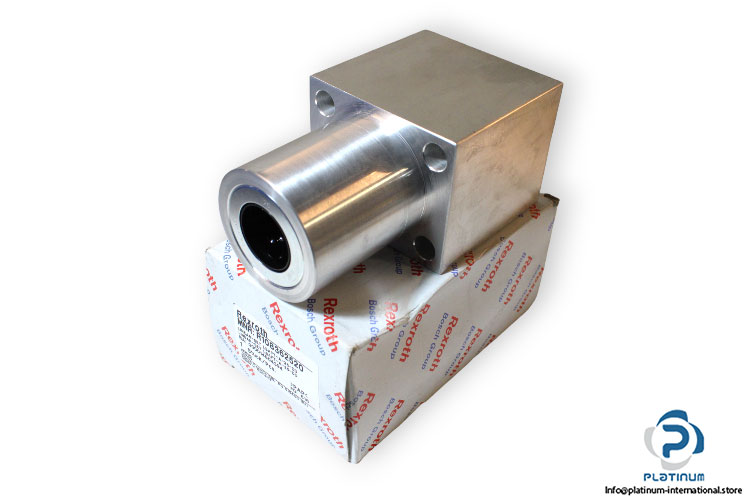

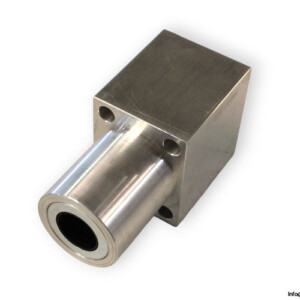

Rexroth R108362520 Linear SET

Manufacturer: BOSCH REXROTH
Type: Linear Sets with Super Linear Bushings A

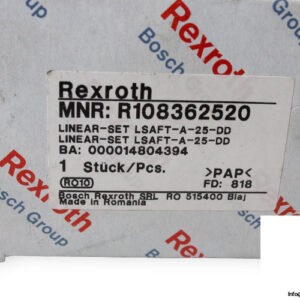

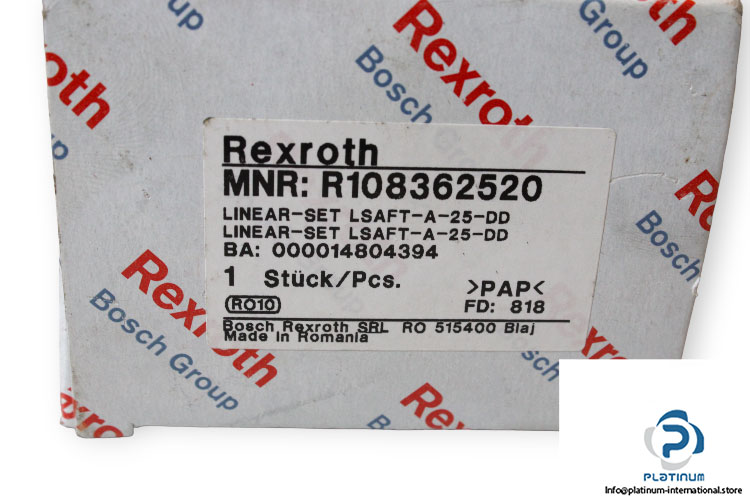

MNR: R 108362520
Model: LSAFT-A-25-DD

Shaft diameter d: 25 mm
Design type: FT – Flanged, tandem
Housing Format: Aluminum
Dynamic Load Capacity C: 6420 N
Static Load Capacity C₀: 4360 N
Breakaway Force: 4.5 N
Maximum Acceleration Travel a_max: 150 m/s²
Maximum Permissible Speed v_max: 3 m/s

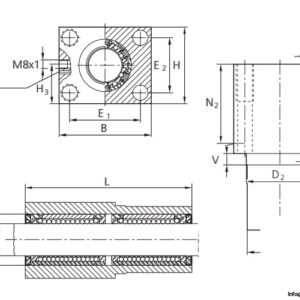

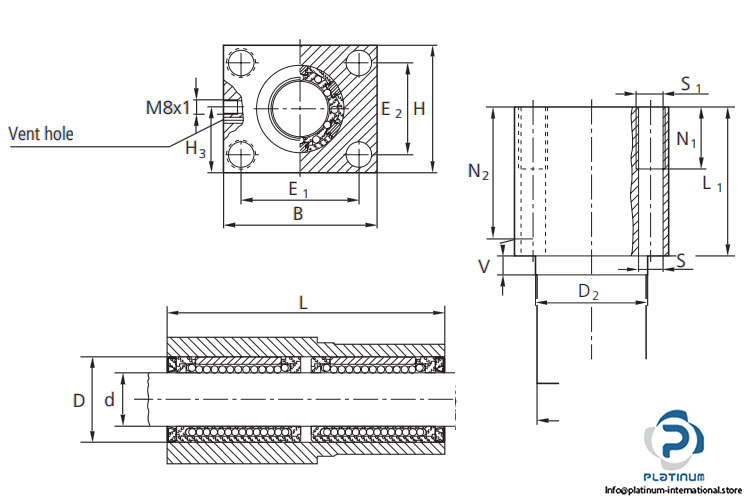

Dimensions:
D₂: 52 mm
B: 74 mm
L: 130 mm
L₁: 73 mm
H: 60 mm
E₁: 56 mm
E₂: 42 mm
Seals: With two seals
Operating temperature: -10 °C … +80 °C
