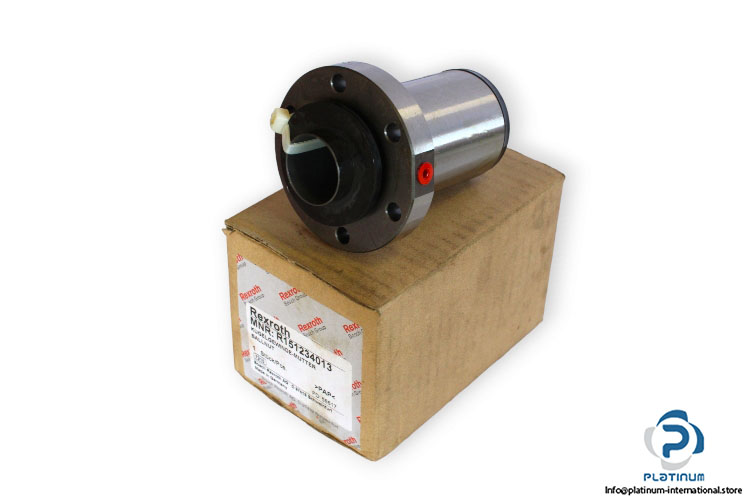

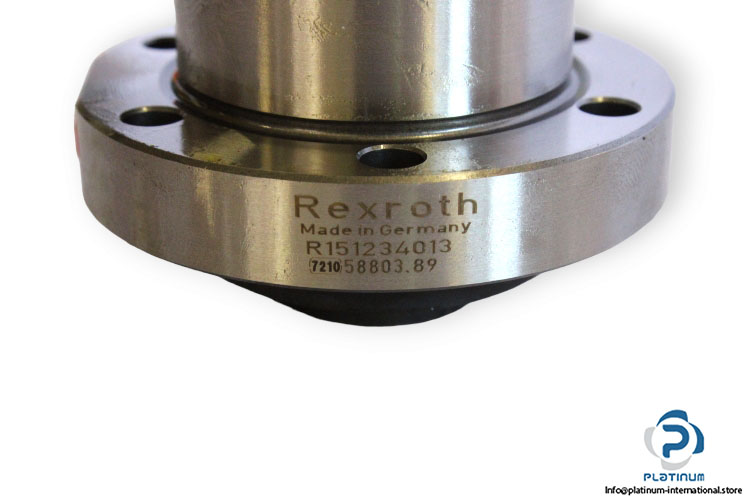

Rexroth R151234013 Flanged Single NUT FEM-E-S

Manufacturer:  Bosch Rexroth
Type: Flanged Single Nut FEM-E-S
MNR: R 151234013

Size: 32 x 10 R x 3.969 – 5
Nominal Diameter d₀: 32 mm
Ball Diameter D_W: 3.969 mm
Number of ball track turns i: 5
Lead P: 10 mm
Direction of Lead: Right-Hand Thread
Dynamic Load Capacity C: 38000 N
Static Load Capacity C₀: 58300 N
Maximum Permissible Speed v_max: 47 m/min
Dimensions:
D₁: 48 mm
D₅: 73 mm
L: 77 mm
L₁₀: 64 mm
Permissible Operating Temperature: -10 … +80 °C
