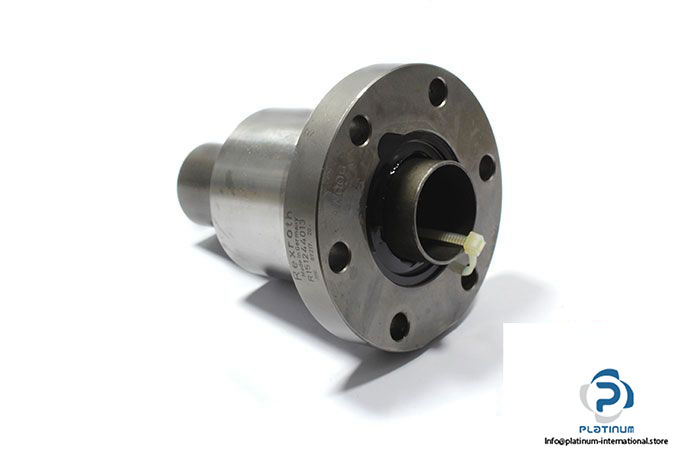

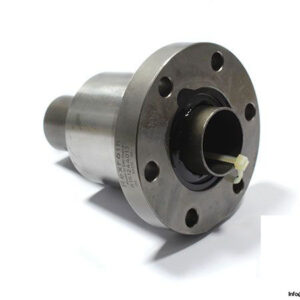

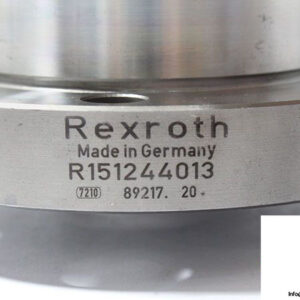

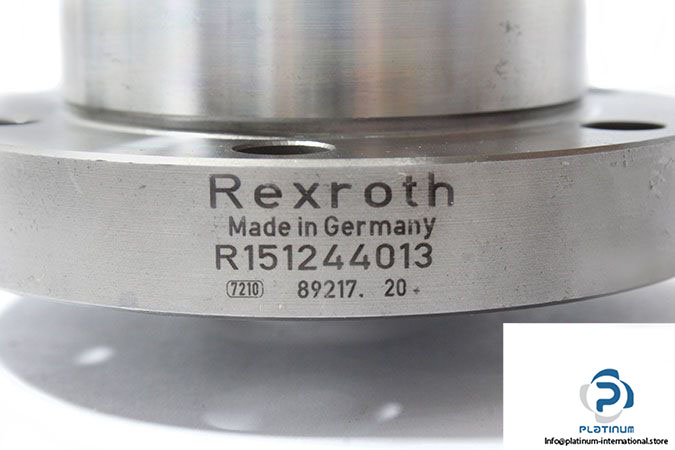

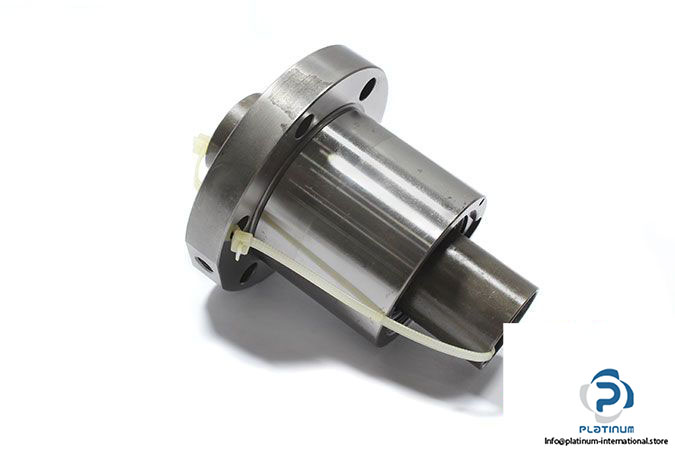

Rexroth R151244013 Flanged Single NUT FEM-E-S

Manufacturer: BOSCH REXROTH

Type: Flanged Single Nut FEM-E-S

MNR: R151244013

Size: 40 x 10 R x 6 – 4

Nominal Diameter d₀: 40 mm

Ball Diameter D_W: 6 mm

Number of ball track turns i: 4

Lead P: 10 mm

Direction of Lead: Right-Hand Thread

Dynamic Load Capacity C: 60000 N

Static Load Capacity C₀: 86400 N

Maximum Permissible Speed v_max: 38 m/min

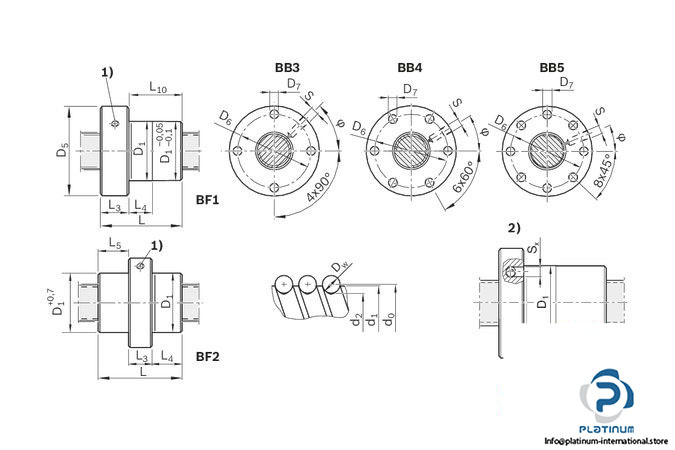

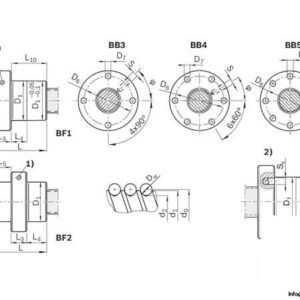

Dimensions:

D1: 63 mm

L: 70 mm

Permissible Operating Temperature: -10 … +80 °C

Weight: 1.40 kg
