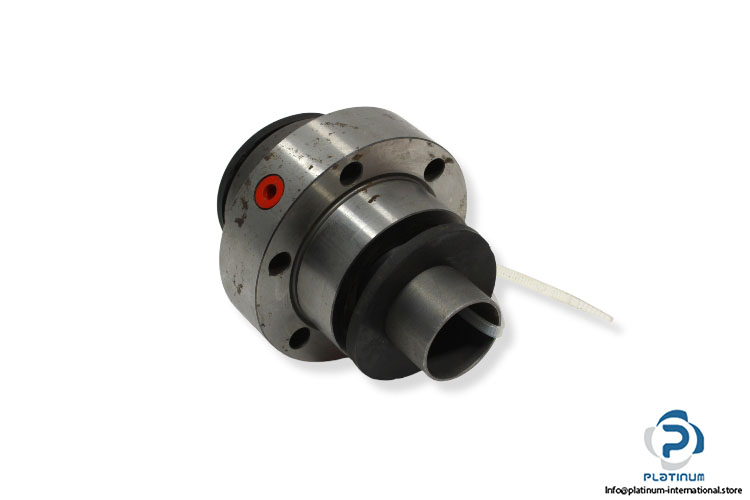

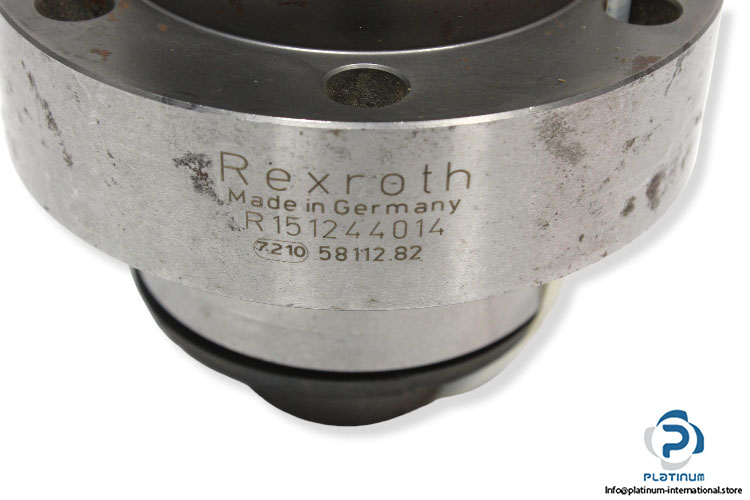

Rexroth R151244014 Adjustable-Preload Single NUT SEM-E-S

Manufacturer: BOSCH REXROTH

Type: Adjustable Preload Single Nut SEM-E-S

MNR: R1512 440 14

Size: 40 x 10 R x 6 – 4

Nominal Diameter d₀: 40 mm

Ball Diameter D_W: 6 mm

Number of ball track turns i: 4

Lead P: 10 mm

Direction of Lead: Right-Hand Thread

Dynamic Load Rating C: 50000 N

Static Load Rating C₀: 86400 N

Linear speed V_max: 38 m/min

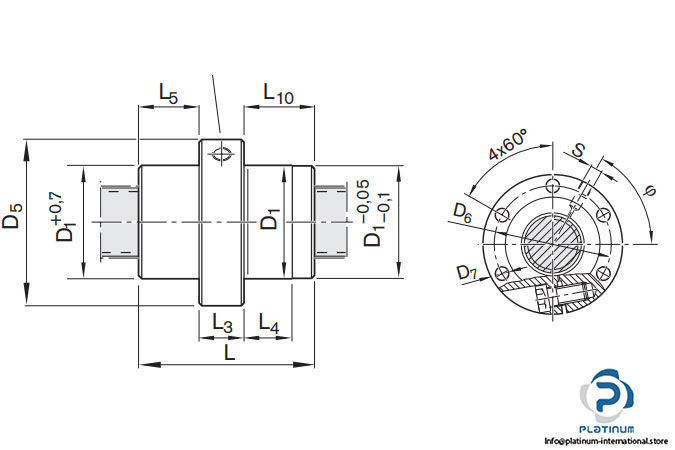

Dimensions:

D₁: 63 mm

D₅: 95 mm

L: 70 mm
