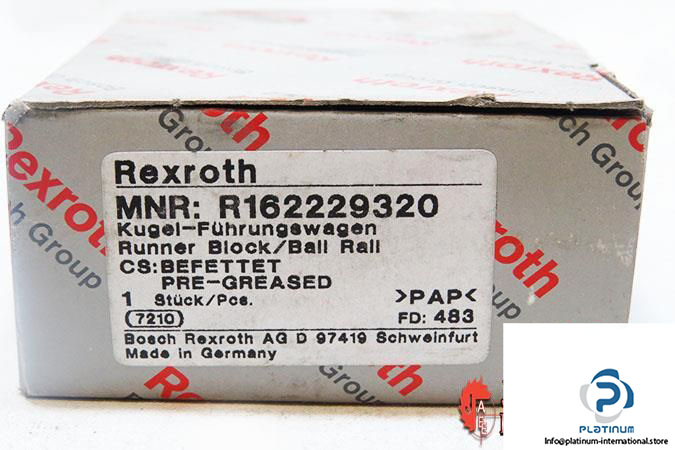

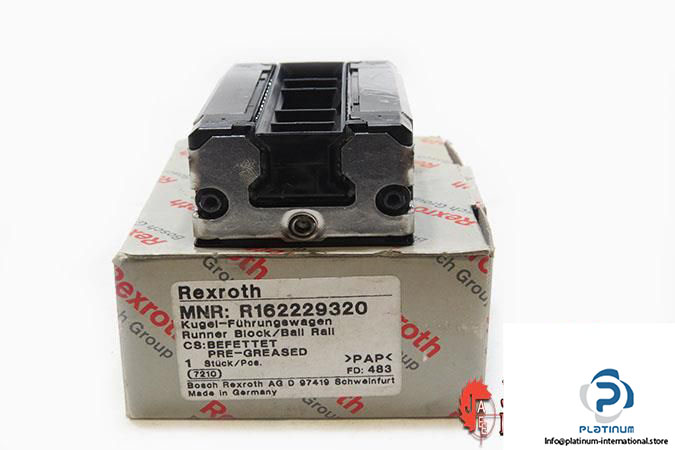

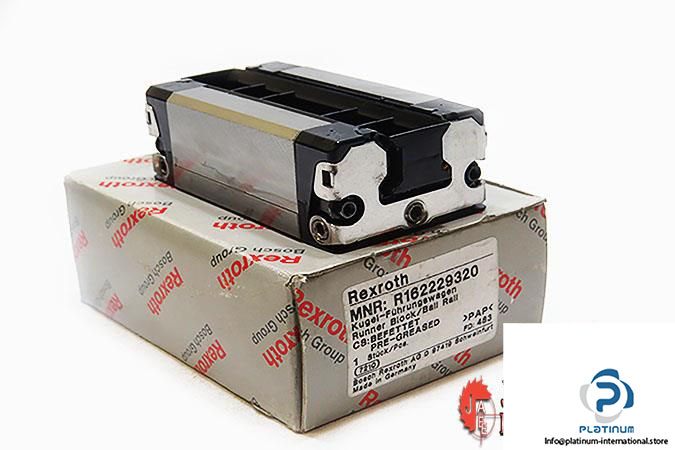

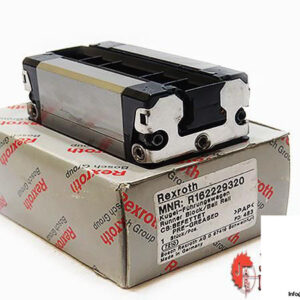

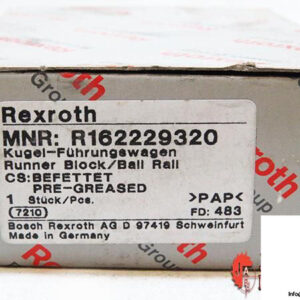

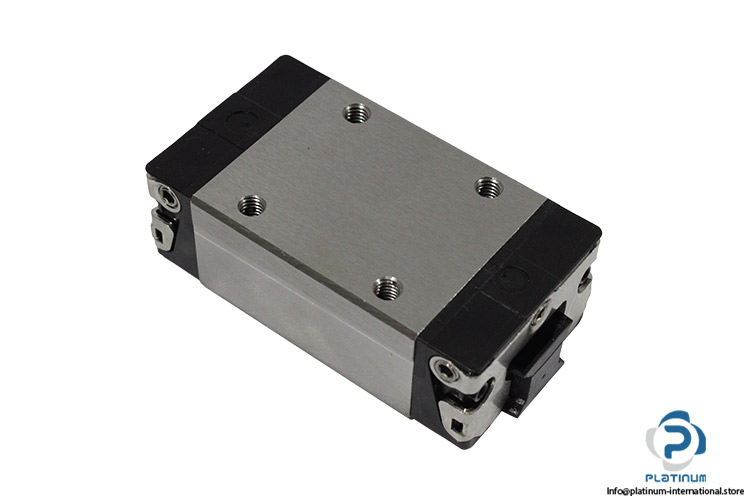

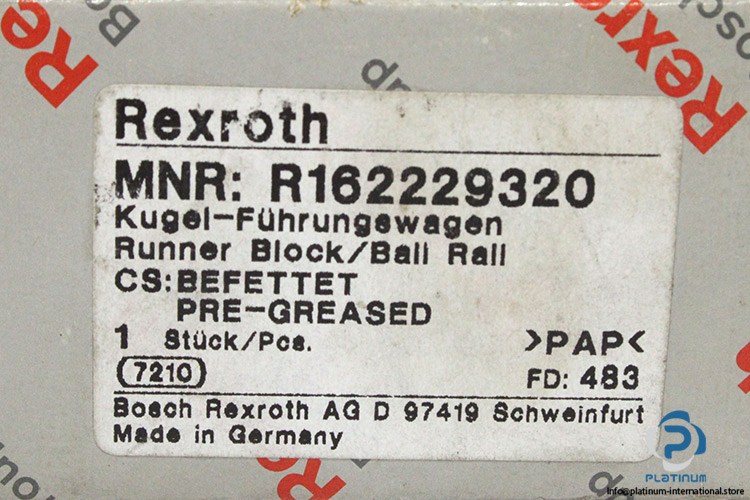

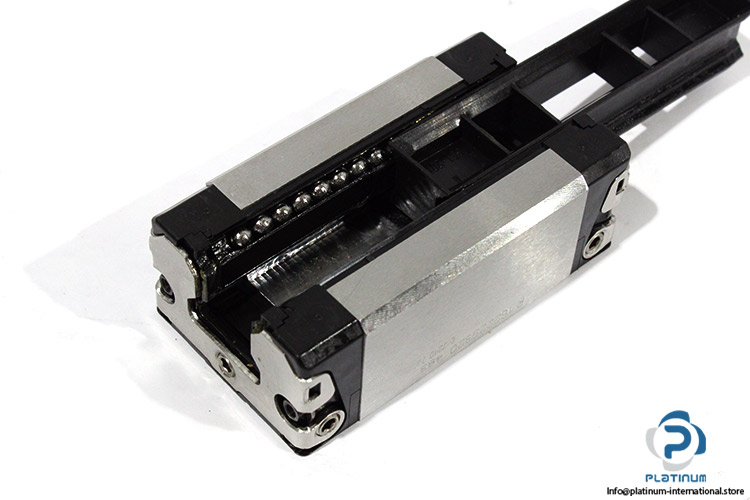

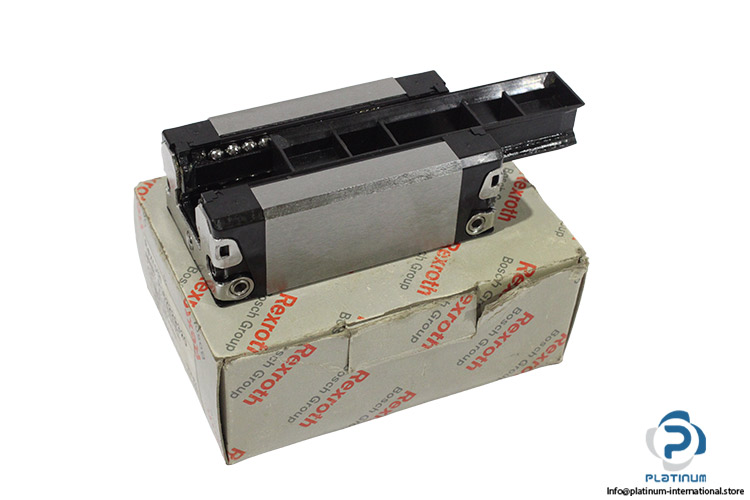

Rexroth R162229320 Ball Rail Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block SNS

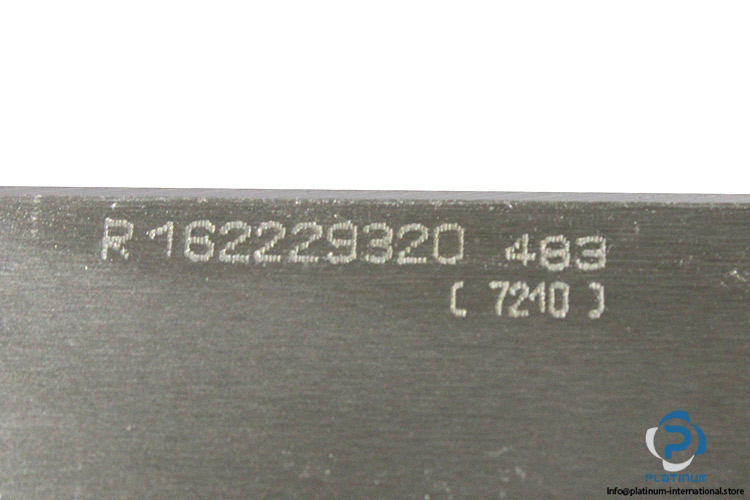

MNR: R1622 293 20

Size: 25 mm
Format: SNS – slimline, normal, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 28600 N
Static Load Capacity C₀ : 35900 N
Dynamic Torsional Moment Load Capacity M_t:  410 Nm
Static torsional moment load capacity Mt0: 510 Nm
Dynamic longitudinal moment load capacity ML: 290 Nm
Static longitudinal moment load capacity ML0: 360 Nm
Accuracy Class: H – Highly accurate
Preload Class: C0 – Without preload
Dimensions
Width (A): 48 mm
Length (B): 86.2 mm
Height of system (H): 36 mm
Height of block (H₁): 29.9 mm
E1: 35 mm
E2: 35 mm
