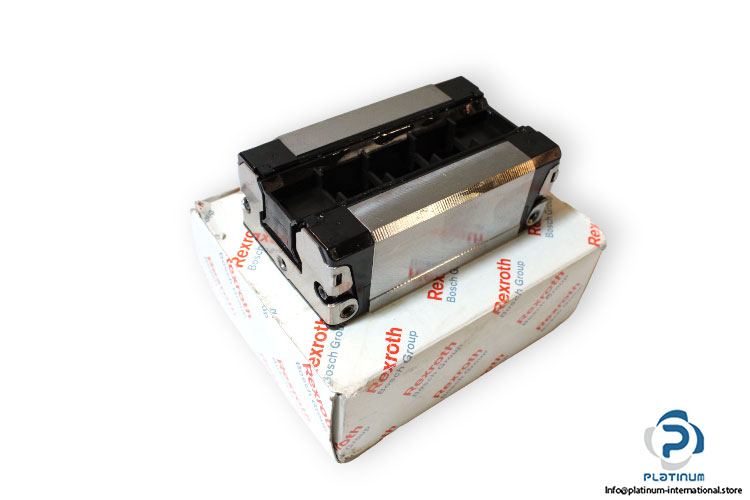

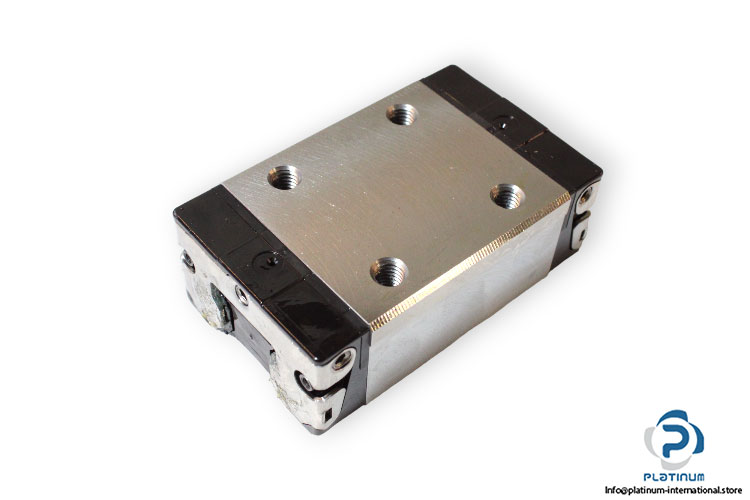

Rexroth R162271420 Ball Runner Block SNS

Manufacturer: Bosch Rexroth

Type: Ball Runner Block SNS

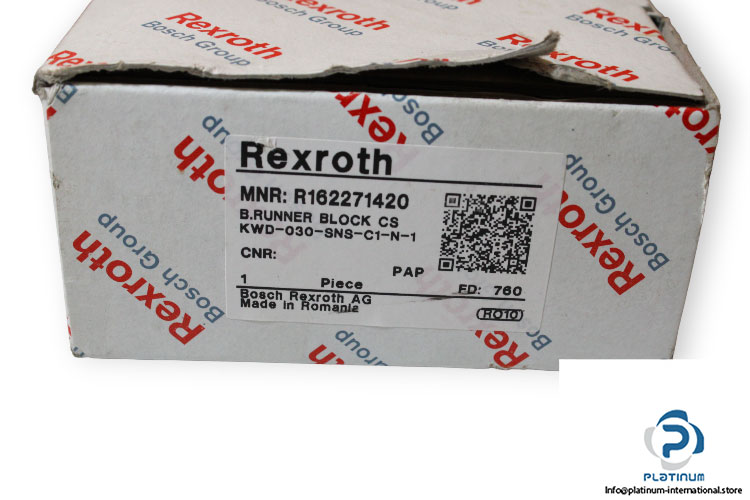

MNR: R 162271420

Size: 30 mm

Mechanical Format: KWD

Design: SNS – Slimline, normal, standard height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 36500 N

Static Load Capacity C₀: 48100 N

Dynamic Torsional Moment Load Capacity M_t:  630 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 440 Nm

Accuracy Class: N – Normal

Preload Class: C1 – Low

Dimensions

Width (A): 60 mm

Length (B): 97.7 mm

Block Height (H₁): 35.35 mm

Total height (H): 42 mm

Admissible Operating Temperature: -10 … +80 °C
