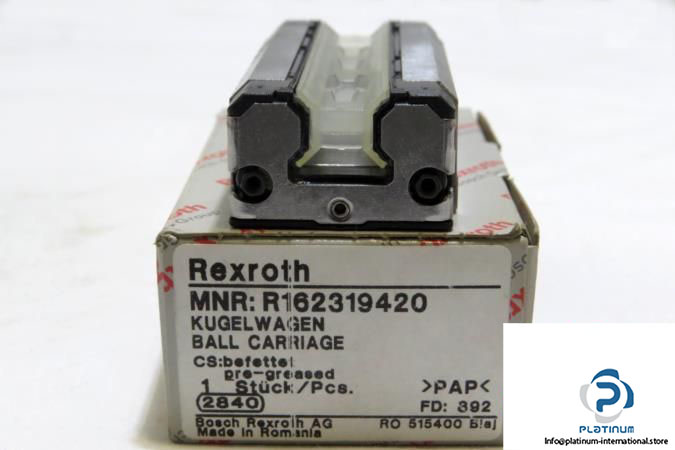

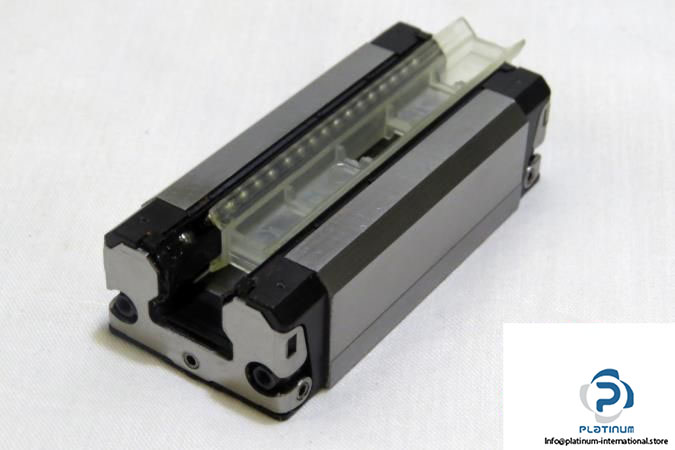

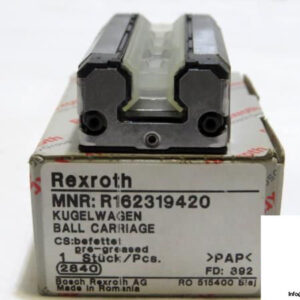

Rexroth R162319420 Ball Rail Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block SLS
MNR: R1623 194 20

Size: 15 mm
Format: SLS – Slimline, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 12800 N
Static Load Capacity C₀ : 18400 N
Dynamic Torsional Moment Load Capacity M_t:  120 Nm
Mt0: 180 Nm
Dynamic longitudinal moment load capacity ML: 120 Nm
Static longitudinal moment load capacity ML0: 180 Nm
Accuracy Class: N – normal
Preload Class: C0 – Without preload
Dimensions
Width (A): 34 mm
Length (B): 72.6 mm
Height of system(H): 24 mm
Height of block (H₁): 19.90 mm
E1: 26 mm
E2: 26 mm
Admissible Operating Temperature: -10 °C … +80 °C
