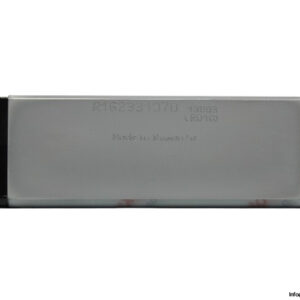

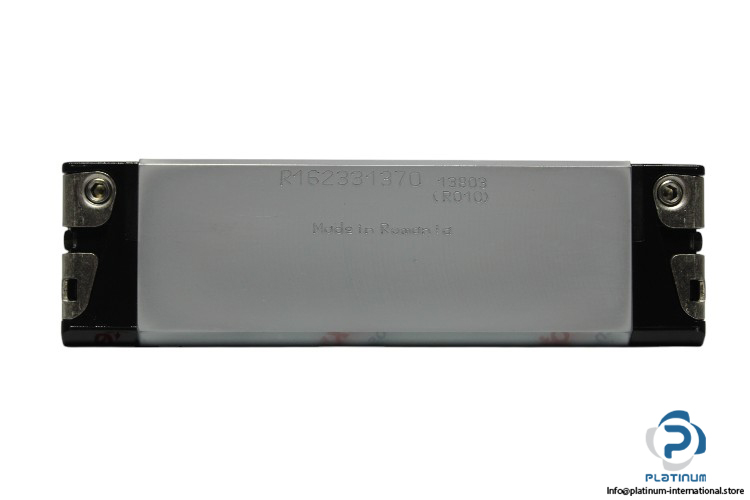

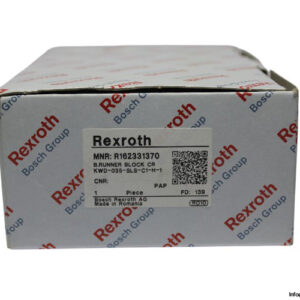

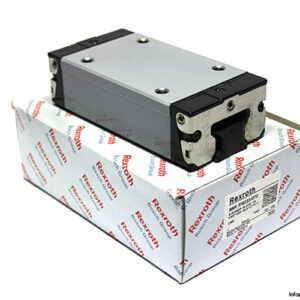

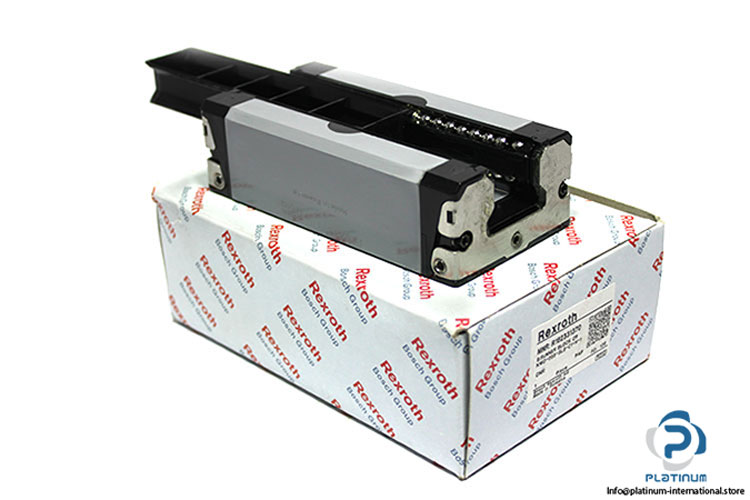

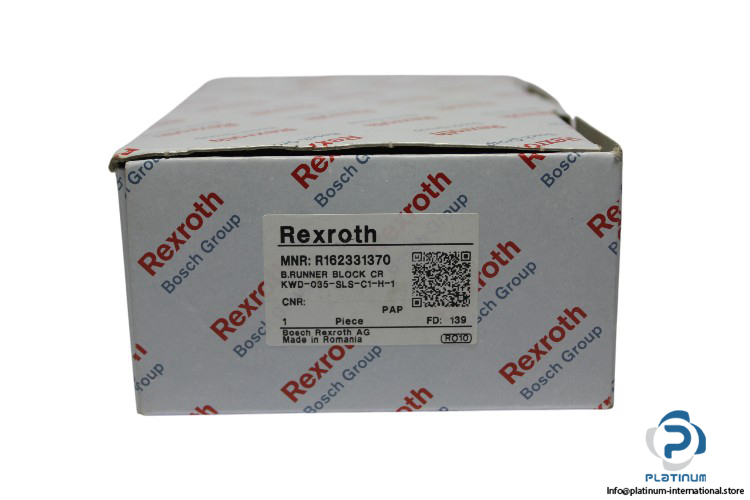

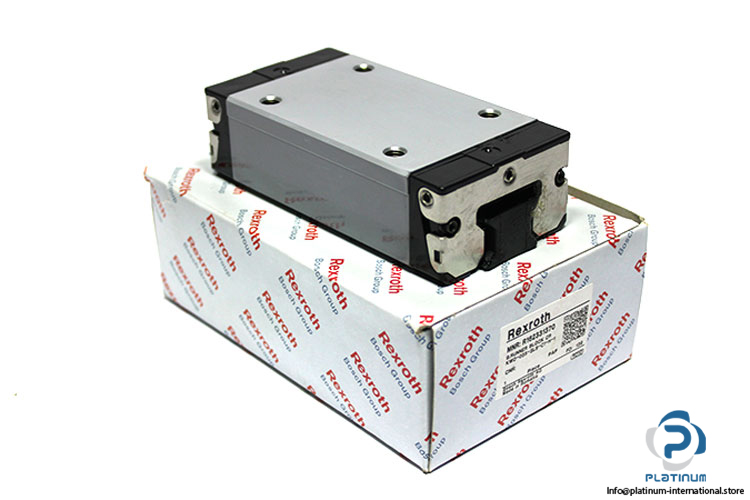

Rexroth R162331370 Ball Runner Block

Rexroth BALL RUNNER BLOCK R162331370

The Rexroth BALL RUNNER BLOCK R162331370 is designed for high-performance motion control in linear guide applications. This block, part of the slimline series, offers precise load handling and durability. It features a dynamic load capacity of 66,700 N and a static load capacity of 116,000 N, making it ideal for applications that require robust support for linear motion.

🔧 Technical Specifications:

• Manufacturer: Rexroth
• Type: BALL RUNNER BLOCK
• Model: R162331370
• Size: 35 mm

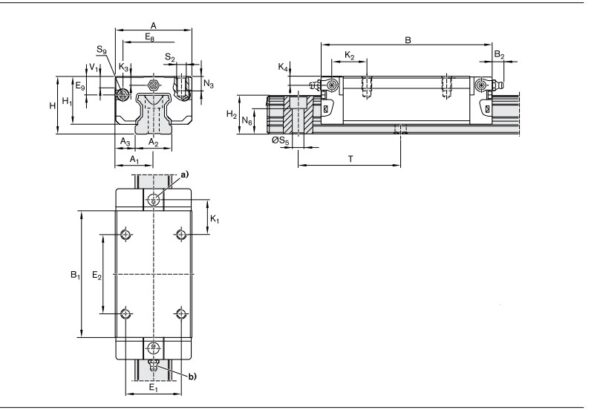

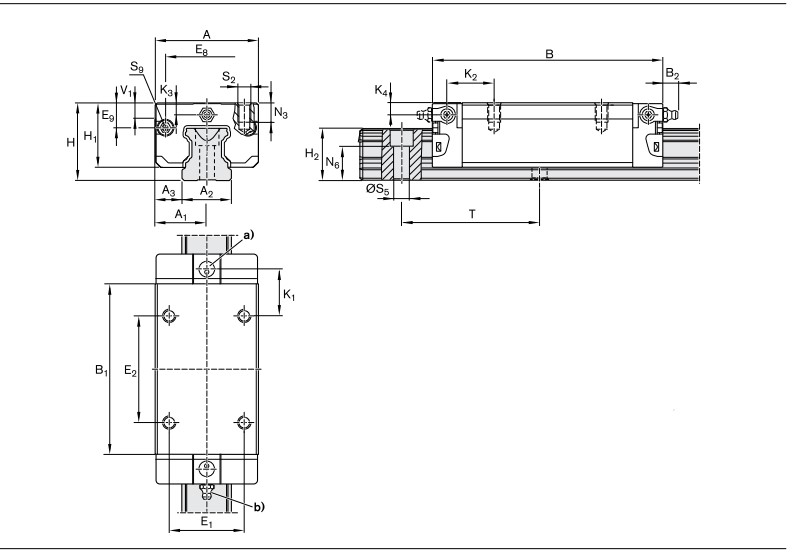

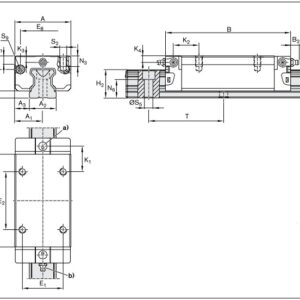

• Dimensions:
• Width (A): 70 mm
• Length (B): 139 mm
• Height of System (H): 48 mm
• Height of Block (H1): 40.40 mm
• E1: 50 mm
• E2: 72 mm
• Format: SLS €“ slimline, long, standard height
• Maximum Acceleration Travel (amax): 500 m/s²
• Maximum Permissible Speed (vmax): 5 m/s
• Dynamic Load Capacity (C): 66,700 N
• Static Load Capacity (C0): 116,000 N
• Dynamic Torsional Moment Load Capacity (Mt): 1,440 Nm
• Static Torsional Moment Load Capacity (Mt0): 2,500 Nm
• Dynamic Longitudinal Moment Load Capacity (ML): 1,290 Nm
• Static Longitudinal Moment Load Capacity (ML0): 2,240 Nm
• Accuracy Class: H €“ Highly accurate
• Preload Class: C1 €“ Low preload

This ball runner block provides precision and high-load capacity, making it a perfect fit for linear motion systems requiring high speed, load, and acceleration handling.
