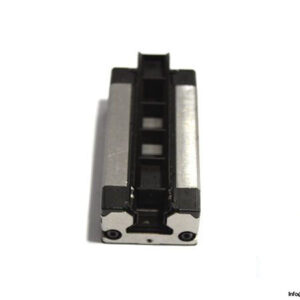

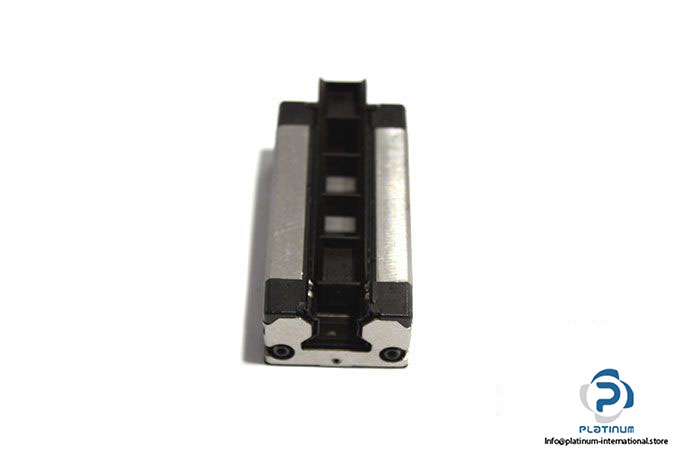

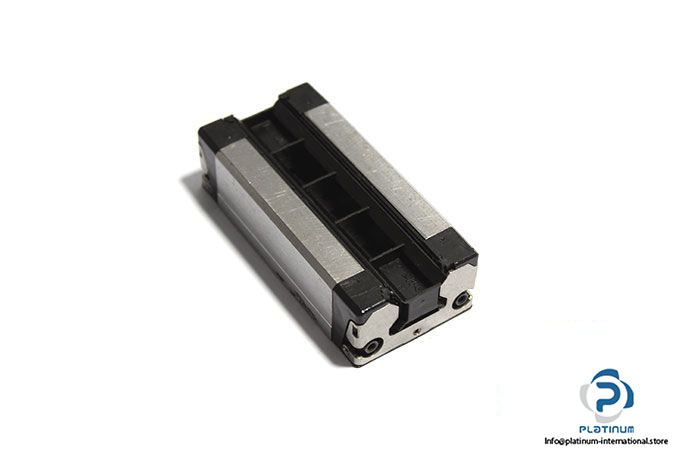

Rexroth R162381420 Ball Runner Block SLS

Manufacturer: REXROTH
Type: Ball Runner Block SLS

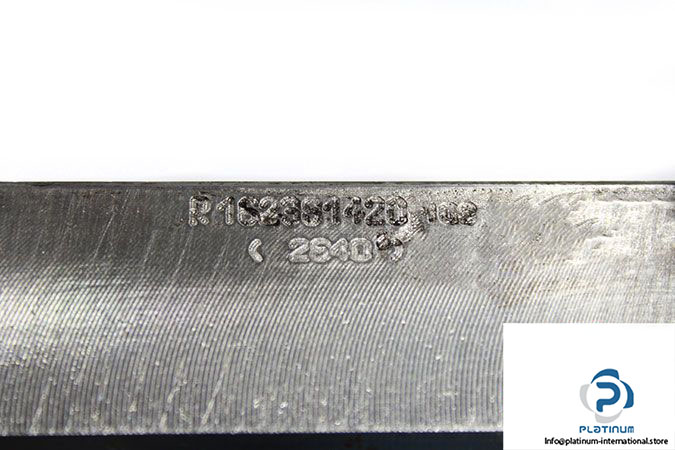

MNR: R1623 814 20

Size: 20 mm
Format: SLS – Slimline, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 29600 N
Static Load Capacity C₀ : 41800 N
Dynamic Torsional Moment Load Capacity M_t:  380 Nm
Mt0: 540 Nm
Dynamic longitudinal moment load capacity ML: 340 Nm
Static longitudinal moment load capacity ML0: 490 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload

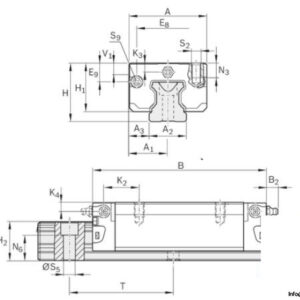

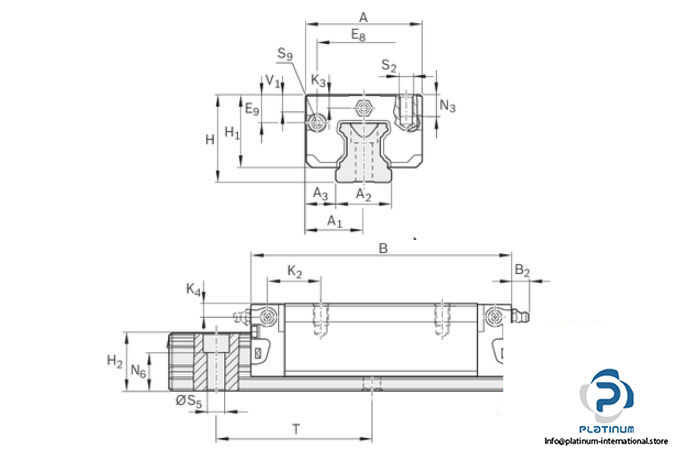

Dimensions
Width (A): 44 mm
Length (B): 91 mm
Height of system(H): 30 mm
Height of block (H₁): 25.35 mm
E1: 32 mm
E2: 50 mm
Admissible Operating Temperature: -10 °C … +80 °C
