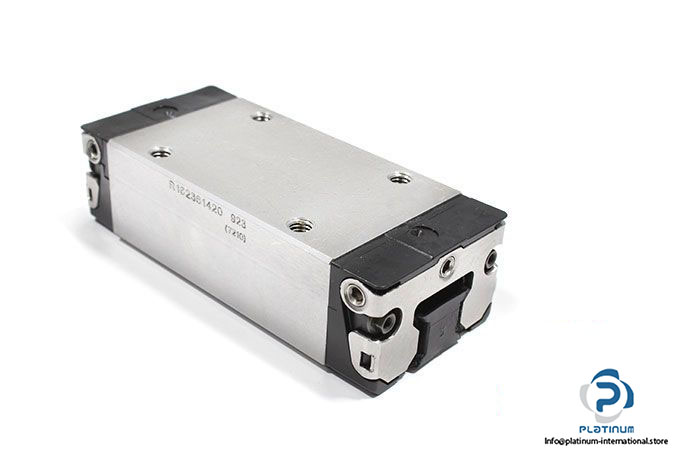

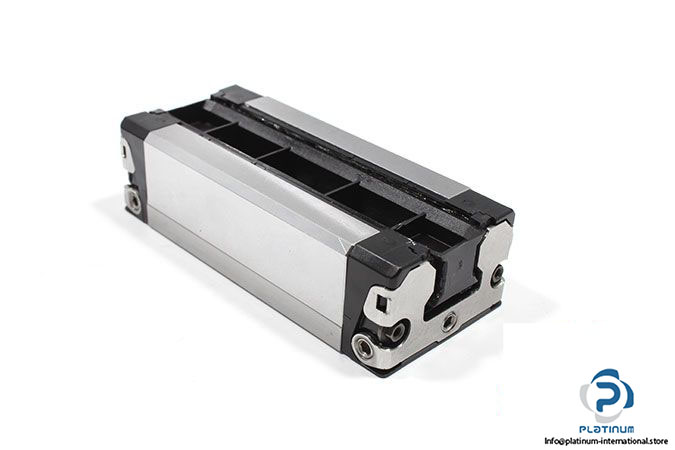

Rexroth R162381420 Ball Runner Block SLS

Manufacturer: Bosch Rexroth

Type: Ball Runner Block SLS

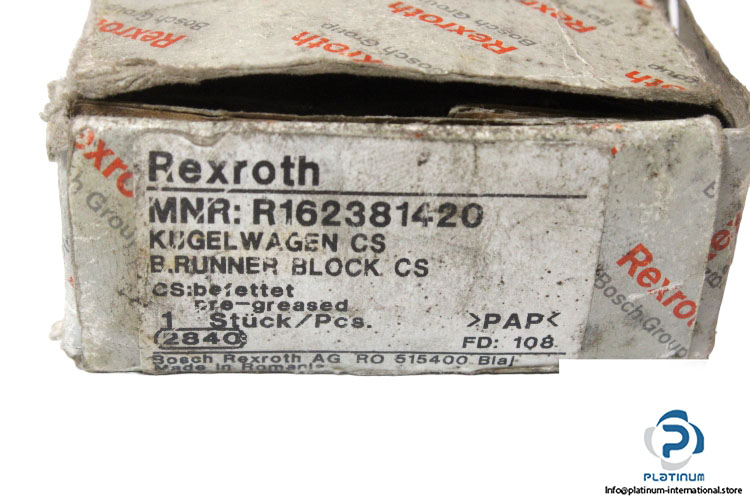

MNR: R162381420

Size: 20 mm

Mechanical Format: KWD

Design: SLS – Slimline, Long, Standard Height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 29600 N

Dynamic Torsional Moment Load Capacity M_t:  380 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 340 Nm

Accuracy Class: N – Normal

Preload Class: C1 – Low

Dimensions

Width ( A ): 44 mm

Length ( B ): 91.5 mm

Height ( H ): 30 mm

Admissible Operating Temperature: -10 °C … +80 °C
