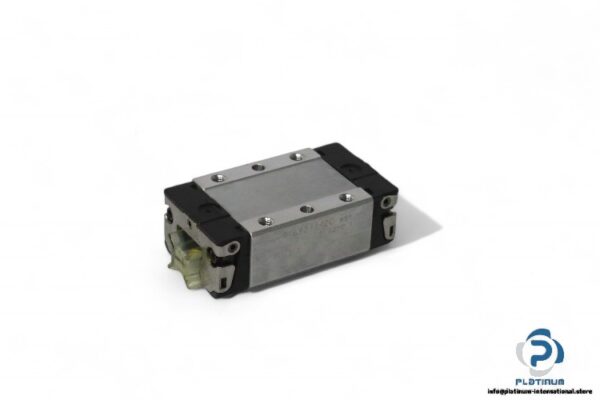

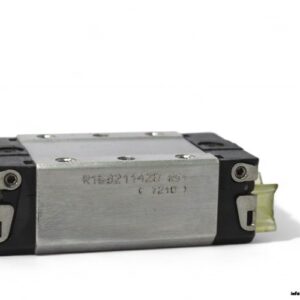

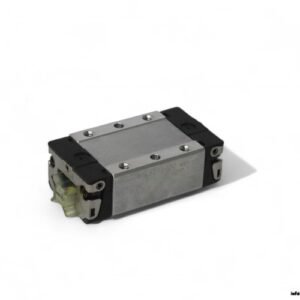

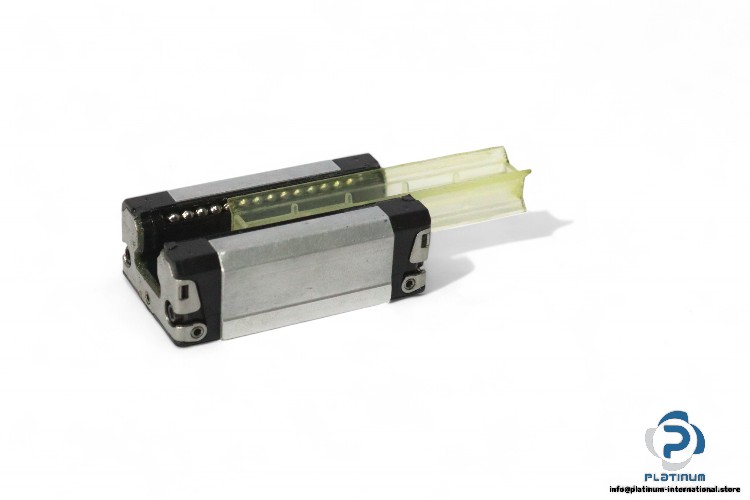

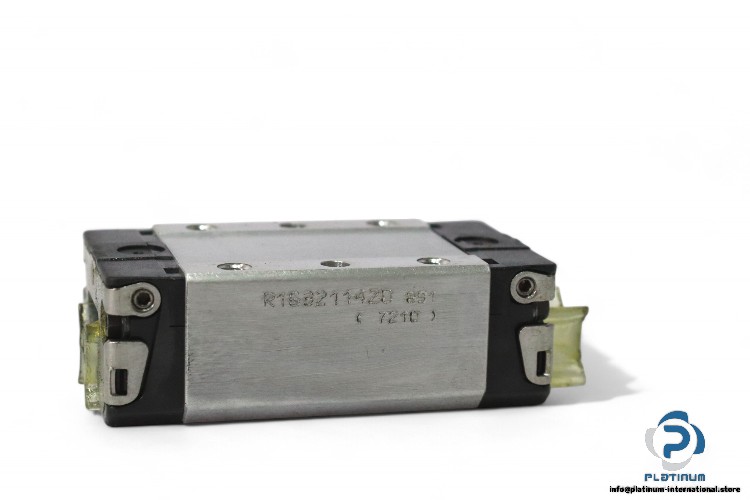

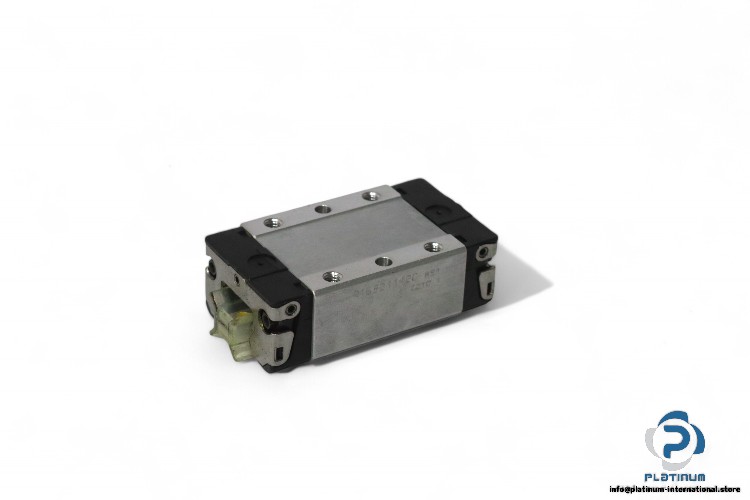

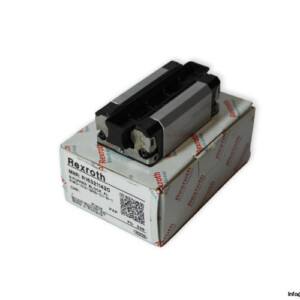

Rexroth R163211420 Ball Runner Block

Manufacturer: Rexroth
Type: BALL RUNNER BLOCK SNS
MNR: R163211420

Size: 15 mm

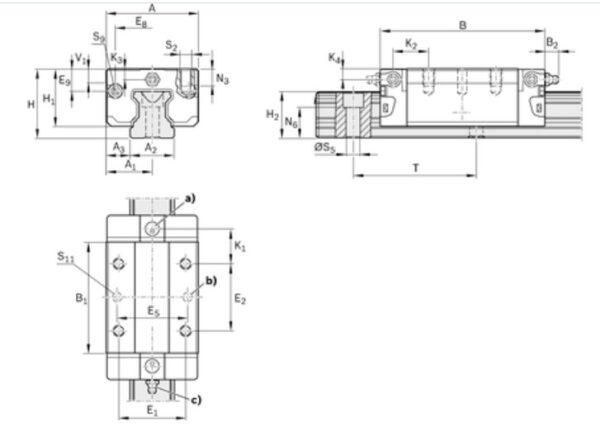

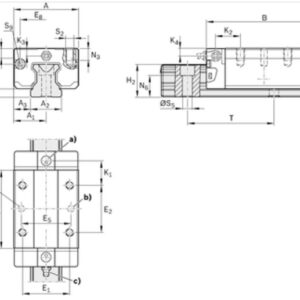

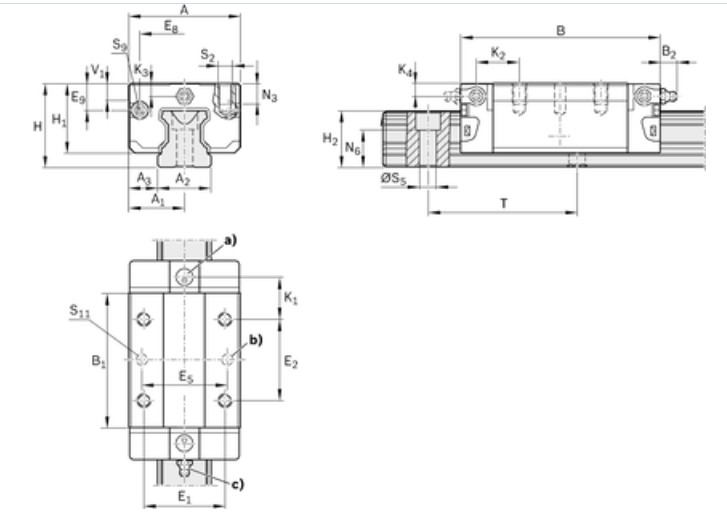

Dimensions
Width (A): 34 mm
Length (B): 58.2 mm
Height of system(H): 24 mm
Height of block (H₁): 19.9 mm
E1: 26 mm
E9: 6.7 mm
Format: SNS – Slimline, normal, standard height
Material (profiled rail systems): Aluminum
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 9860 N
Maximum dynamic load Fmax: 3000 N
Dynamic Torsional Moment Load Capacity M_t: 95 Nm
Maximum permissible torsional moment Mt max: 29 Nm
Dynamic longitudinal moment load capacity ML: 68 Nm
Maximum permissible longitudinal load moment ML max: 16 Nm
Accuracy Class: N – normal
Preload Class: C1 -Low preload
