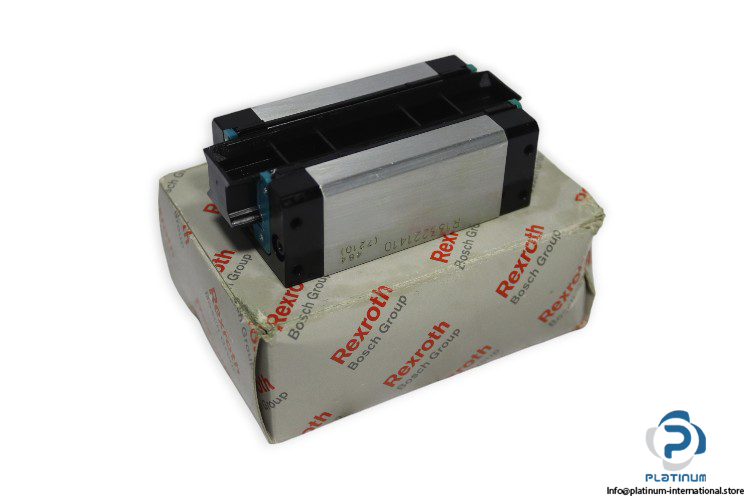

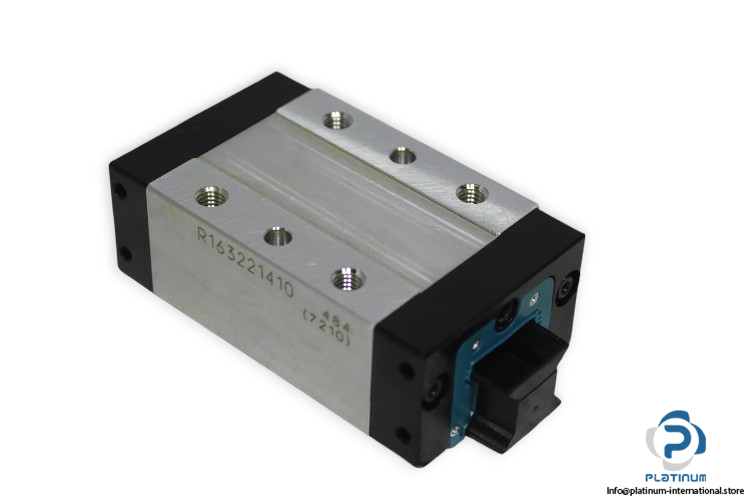

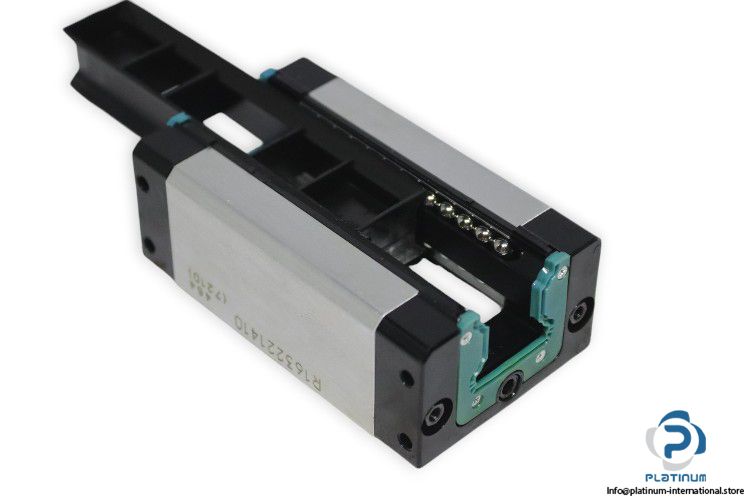

Rexroth R163221410 Ball Runner Block

Manufacturer: REXROTH
Type: BALL RUNNER BLOCK SNS

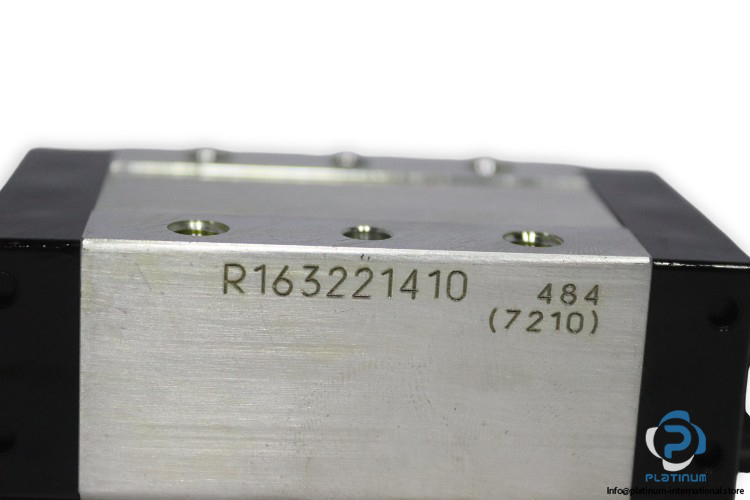

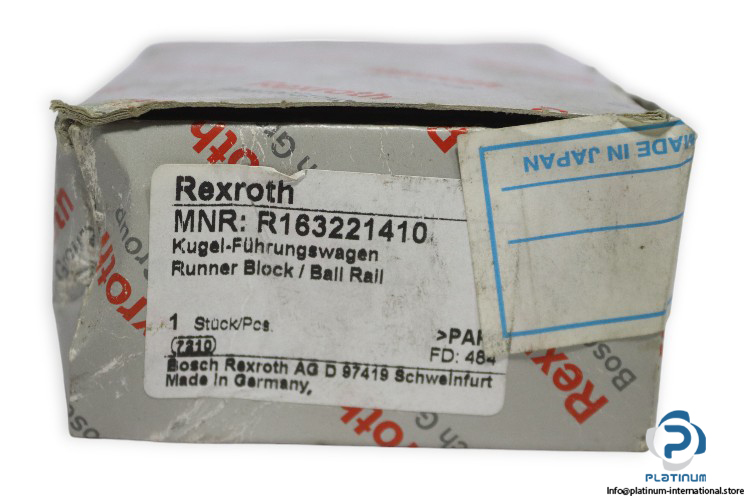

MNR: R1632 214 10

Size: 25 mm

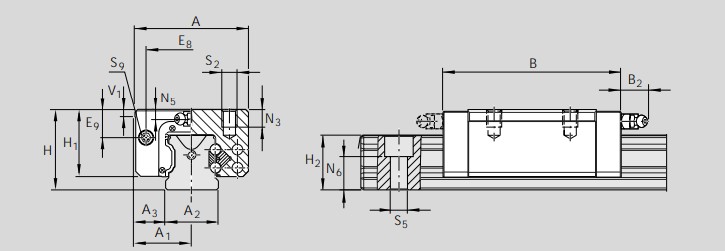

Dimensions
Width (A): 48 mm
Length (B): 81 mm
Height of runner block: 29.5 mm
Height runner block with guide rail: 36 mm

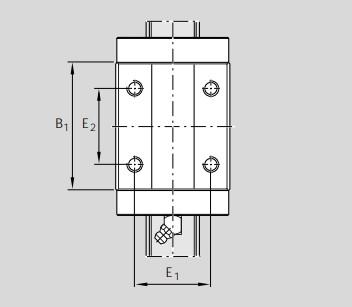

E1: 35 mm
E2: 35 mm
Format: SNS, Slimline, Normal, Standard
Dynamic Load Capacity C: 228000 N
Dynamic Torsional Moment Load Capacity M_t: 320 Nm
Dynamic torsional moment load capacity Mt max: 125 Nm
Dynamic longitudinal moment load capacity ML: 180 Nm
Dynamic longitudinal moment load capacity ML max: 70 Nm
Accuracy Class: N – Normal accurate
Preload Class: C1 – Low preload
