Rexroth R165142420 Ball Runner Block
New
In stock1 unitReady to ship
Ball Runner Block
The Rexroth R165142420 Ball Runner Block is a precision linear motion component with a flanged design, 109000N dynamic load capacity, and C2 preload for industrial applications.45mmBallBlockC2CapacityCarbonflangedGuideHighIndustrialLinearLoadMotionPrecisionPreloadR165142420RexrothRunnerSteelSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

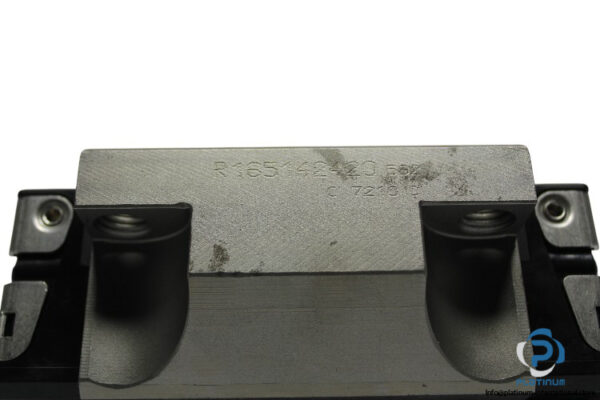

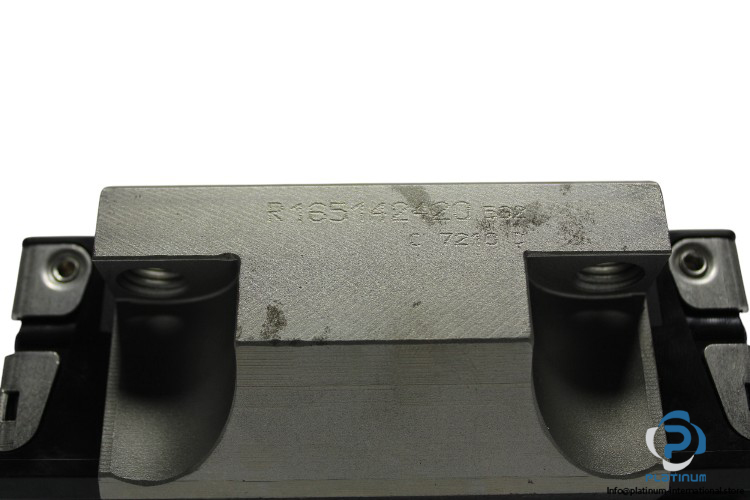

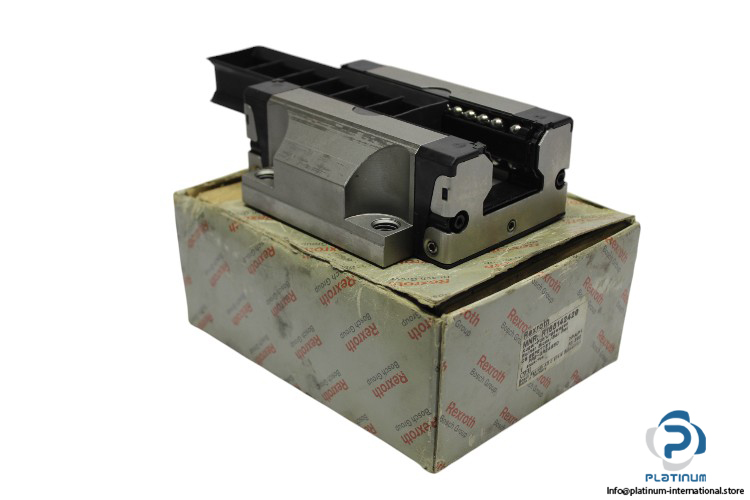

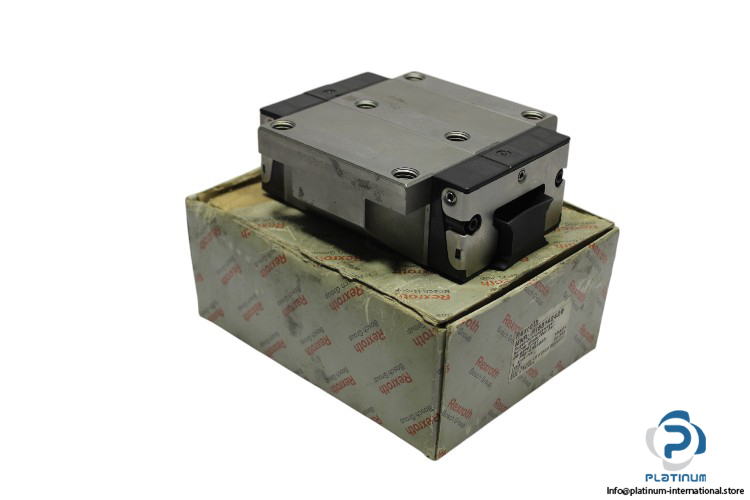

Rexroth R165142420 Ball Runner Block
The Rexroth R165142420 Ball Runner Block is a high-performance linear motion component designed for precision applications. Featuring a flanged design, normal height, and carbon steel construction, this ball runner block ensures exceptional load handling capacity and smooth operation in industrial automation systems.
Manufacturer: Rexroth
Type: Ball Runner Block
MNR: R165142420
Model: KWD-045-FNS-C2-N-1

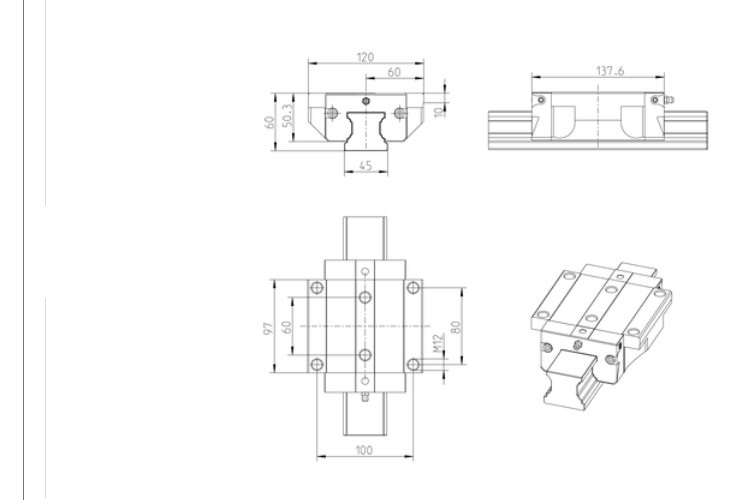

Dimensions:
| Size | 45 mm |
| Width (A) | 120 mm |
| Length (B) | 137.6 mm |
| Height of System (H) | 60 mm |
| Height of Block (H1) | 50.30 mm |
| Format | FNS – Flanged, Normal, Standard Height |
| Material (Profiled Rail Systems) | Carbon Steel |
| Maximum Acceleration Travel (amax) | 500 m/s² |
| Maximum Permissible Speed (vmax) | 5 m/s |
| Dynamic Load Capacity (C50) | 109,000 N |
| Dynamic Load Capacity (C100) | 86,400 N |
| Static Load Capacity (C0) | 132,000 N |
| Dynamic Torsional Moment Load Capacity (Mt) | 2,330 Nm |
| Static Torsional Moment Load Capacity (Mt0) | 3,560 Nm |
| Dynamic Longitudinal Moment Load Capacity (ML) | 1,540 Nm |
| Static Longitudinal Moment Load Capacity (ML0) | 2,350 Nm |
| Accuracy Class | N – Normal |
| Preload Class | C2 – Medium Preload |
| Admissible Operating Temperature | -10 °C … +80 °C |
