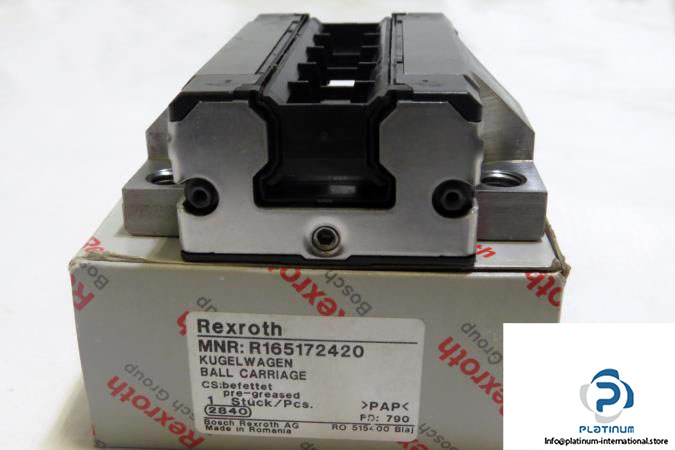

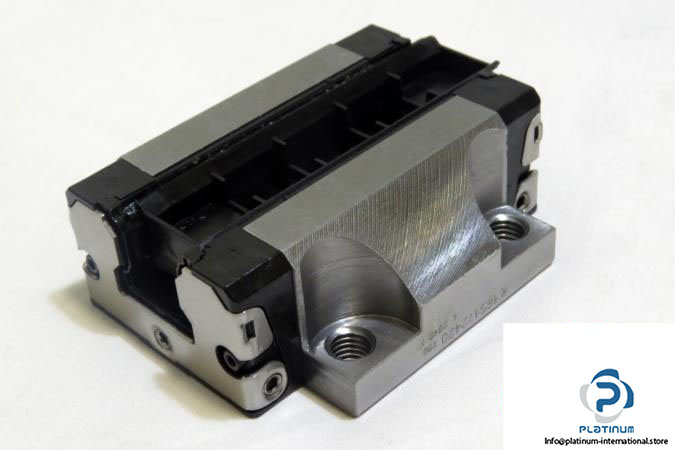

Rexroth R165172420 Ball Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block FNS
MNR: R1651 724 20

Size: 30 mm
Format: FNS, Flanged, normal, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 36500 N
Static Load Capacity C₀ : 48100 N
Dynamic Torsional Moment Load Capacity M_t:  630 Nm
Mt0: 830 Nm
Dynamic Longitudinal Moment Load Capacity M_L: 440 Nm
Static longitudinal moment load capacity ML0: 580
Accuracy Class: N – normal
Preload Class: C2 – Average preload
Dimensions
Width (A): 90 mm
Length (B): 97.7 mm
Height of system (H): 42 mm
Height of block (H₁): 35.35 mm
E1: 72 mm
E2: 52 mm
Admissible Operating Temperature: -10 °C … +80 °C
