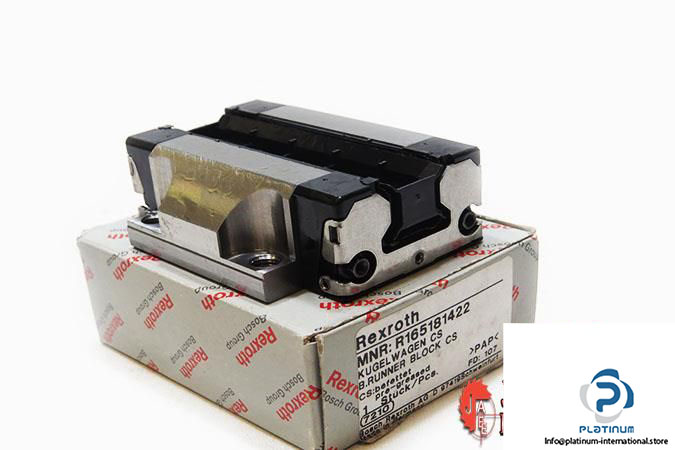

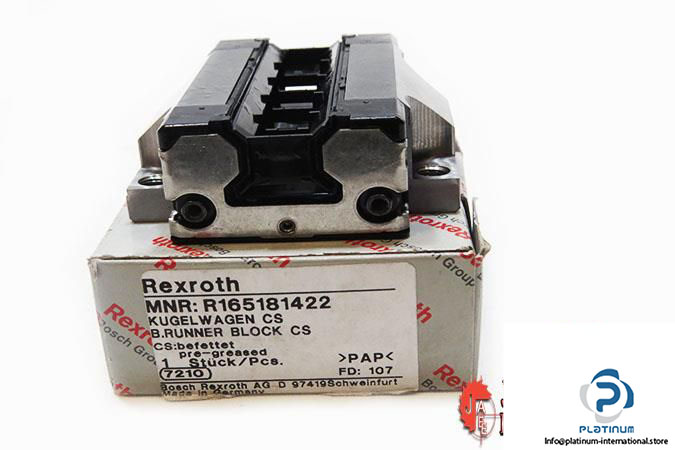

Rexroth R165181422 Ball Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block FNS

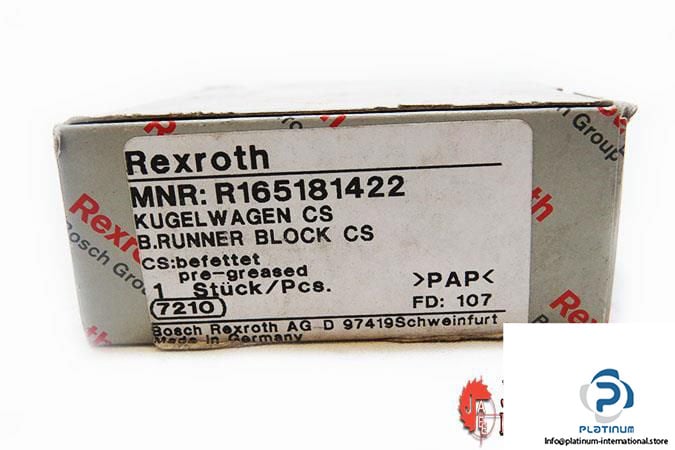

MNR: R1651 814 22

Size: 20 mm
Format: FNS, flanged, normal, standard height
Material (profiled rail systems): Carbon steel
Ball chain: with Ball chain
Lubrication: With initial lubrication and preservation
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 22200 N
Static Load Capacity C₀ : 27700 N
Dynamic Torsional Moment Load Capacity M_t:  280 Nm
Static torsional moment load capacity Mt0: 350 Nm
Dynamic longitudinal moment load capacity ML: 190 Nm
Static longitudinal moment load capacity ML0: 240 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload
Dimensions
Width (A): 63 mm
Length (B): 75 mm
Height of system (H): 30 mm
Height of block (H₁): 25.35 mm
E1: 53 mm
E2: 40 mm
Admissible Operating Temperature: -10 °C … +80 °C
