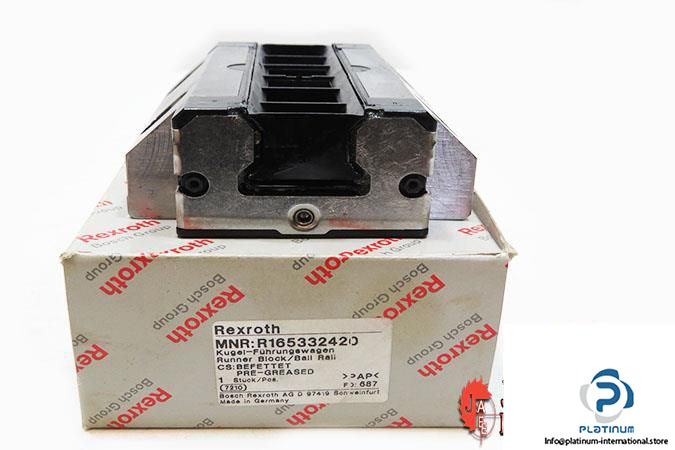

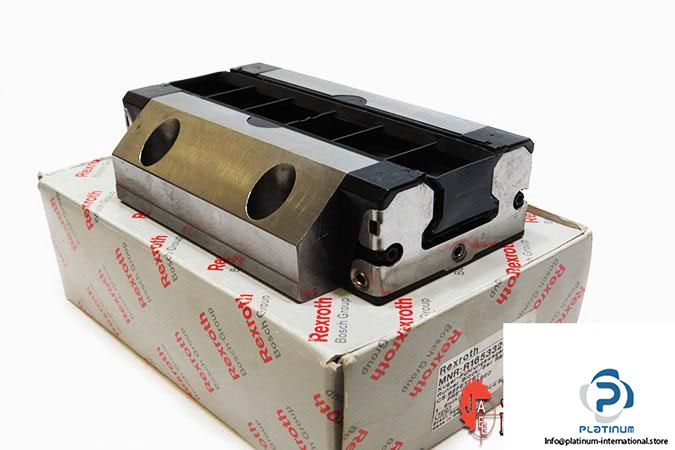

Rexroth R165332420 Ball Rail Runner Block

Manufacturer: REXROTH
Type: BALL RAIL RUNNER BLOCK

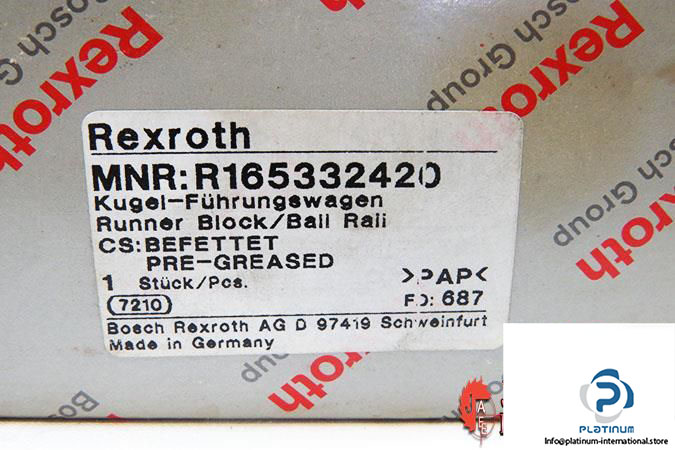

MNR: R1653 324 20

Size: 35 mm
Format: FLS, Flanged, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 66700 N
Static Load Capacity C₀ : 116000 N
Dynamic Torsional Moment Load Capacity M_t:  1440 Nm
Dynamic longitudinal moment load capacity ML: 1290 Nm
Accuracy Class: N , Normal
Preload Class: C2 , Medium preload
Dimensions
Width (A): 100 mm
Length (B): 139 mm
Height of system (H): 48 mm
Height of block (H₁): 40.40 mm
E1: 82 mm
E2: 62 mm
Admissible Operating Temperature: -10 °C … +80 °C
