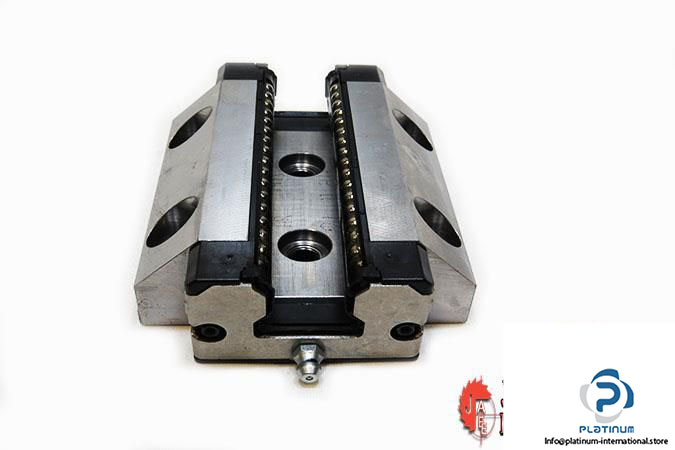

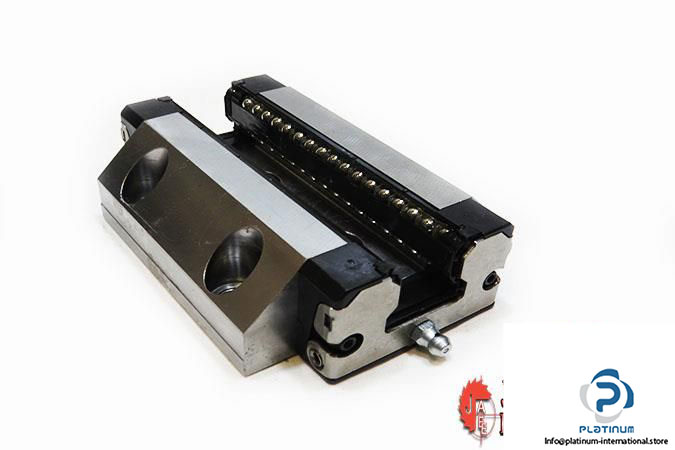

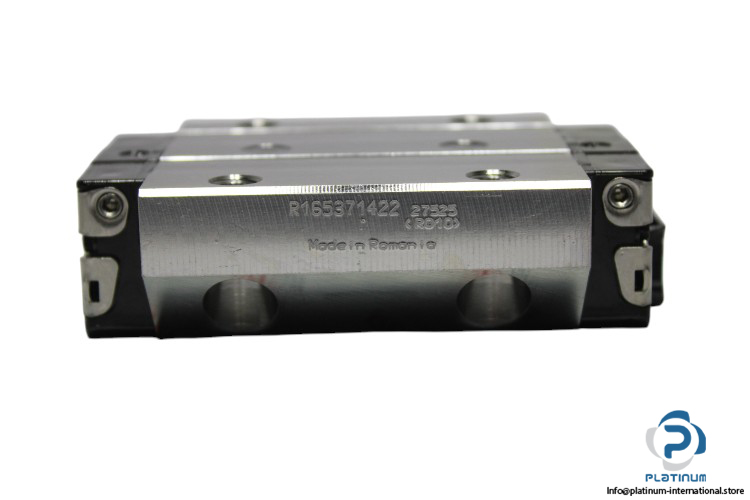

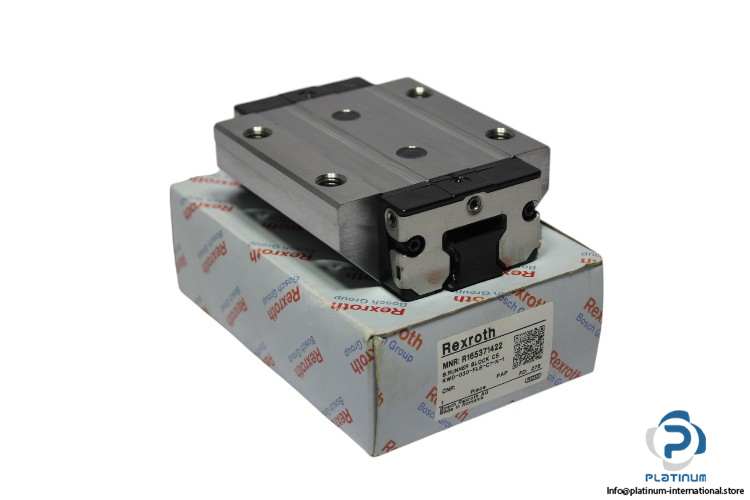

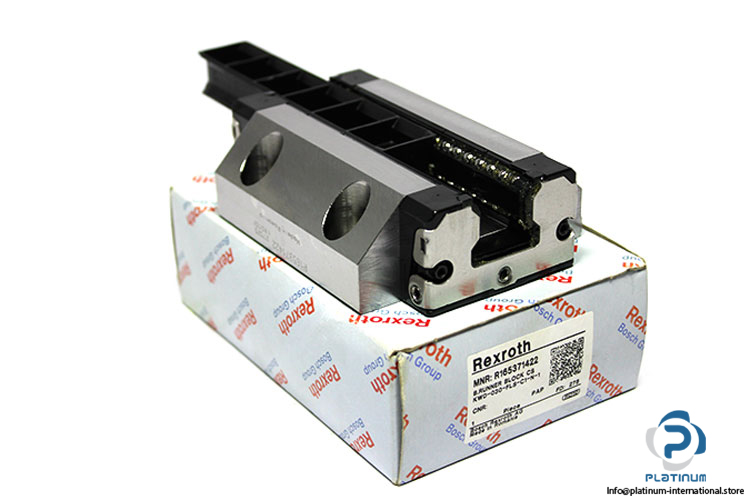

Rexroth R165371422 Ball Rail Runner Block
Rexroth Ball Rail Runner Block R165371422, 30 mm size, carbon steel, dynamic load 43,800 N, accuracy class N, preload class C1, max speed 5 m/s.
Rexroth Ball Rail Runner Block R165371422
The Rexroth Ball Rail Runner Block R165371422 offers exceptional performance for linear motion applications. With its robust carbon steel construction, high load capacities, and precise operation, it is ideal for a wide range of industrial applications.
🔧 Technical Specifications:
- Manufacturer: Rexroth
- Type: Ball Rail Runner Block

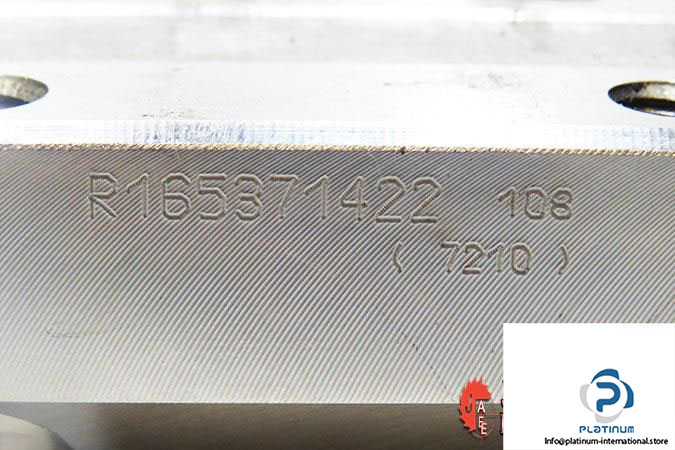

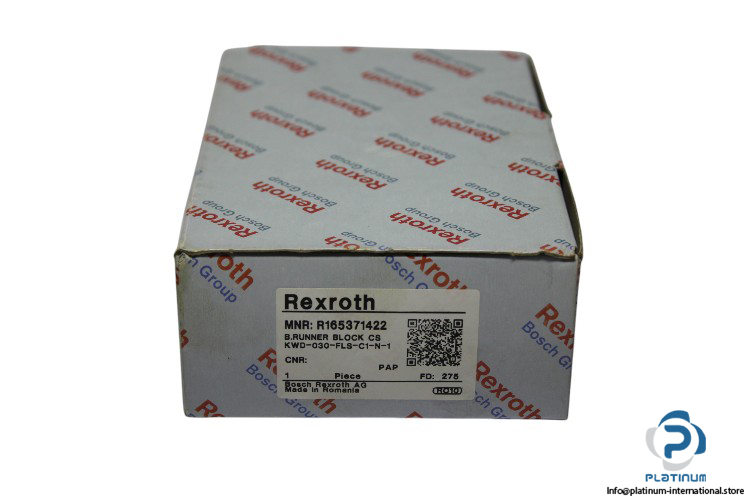

- MNR: R165371422
- Size: 30 mm

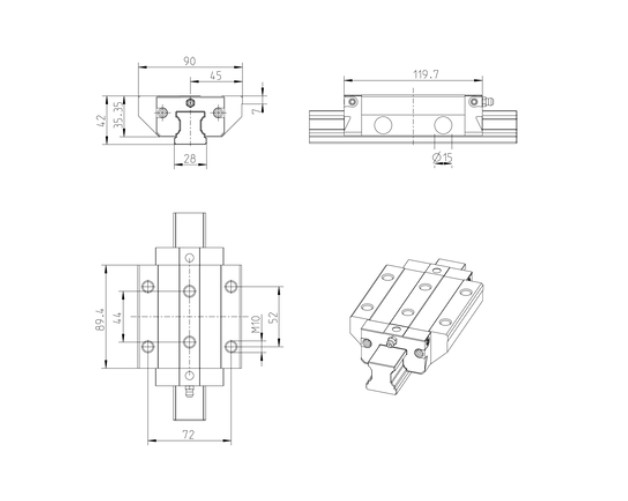

- Dimensions:
- Width (A): 90 mm
- Length (B): 119.7 mm
- Height of System (H): 42 mm
- Height of Block (H1): 35.35 mm
- E1: 72 mm
- E2: 52 mm
- Format: FLS €“ Flanged, Long, Standard Height
- Material: Carbon Steel
- Maximum Acceleration: 500 m/s²
- Maximum Speed: 5 m/s
- Load Capacities:
- Dynamic: 43,800 N
- Static: 62,200 N
- Torsional Moment Load Capacities:
- Dynamic (Mt): 760 Nm
- Static (Mt0): 1080 Nm
- Longitudinal Moment Load Capacities:
- Dynamic (ML): 710 Nm
- Static (ML0): 1010 Nm
- Accuracy Class: N €“ Normal
- Preload Class: C1 €“ Low Preload
- Admissible Operating Temperature: -10 °C to +80 °C
Designed for reliability and precision, the Rexroth R165371422 Ball Rail Runner Block ensures optimal performance in demanding industrial applications.
