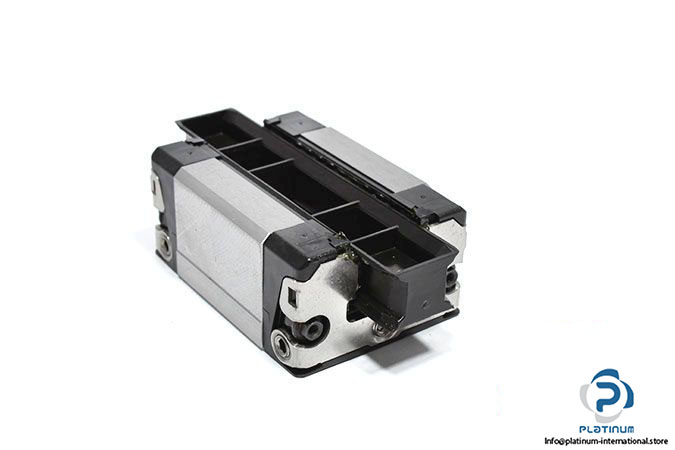

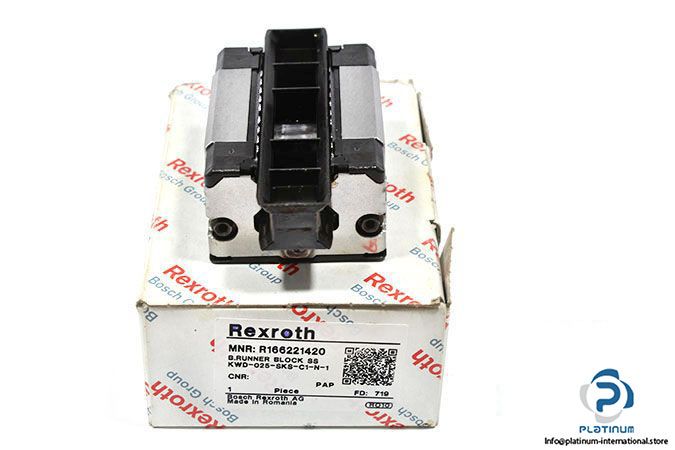

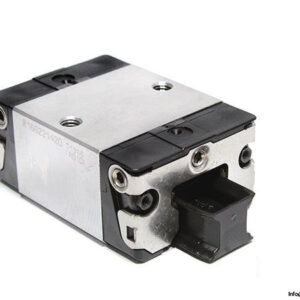

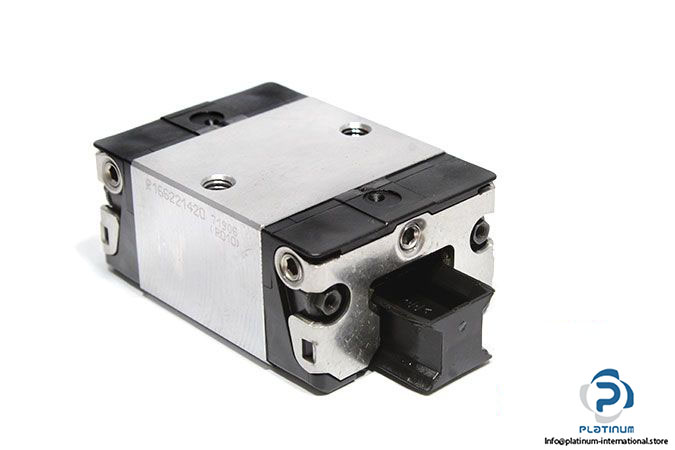

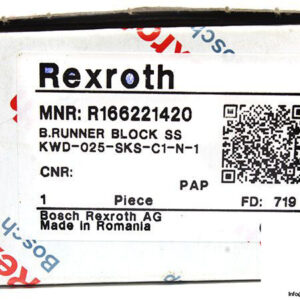

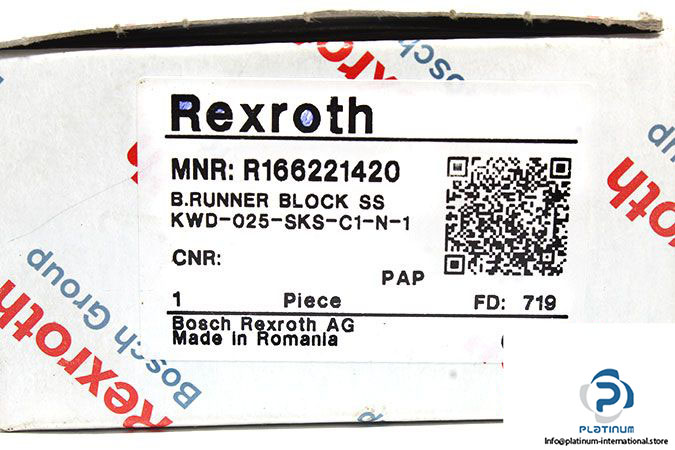

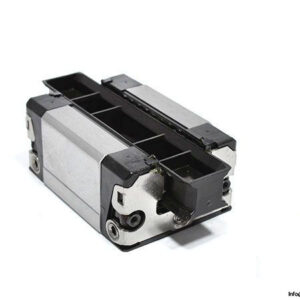

Rexroth R166221420 Ball Runner Block SKS

Manufacturer: REXROTH
Type: Ball Runner Block SKS
MNR: R1662 214 20

Size: 25 mm
Format: SKS – slimline, short, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 11400 N
Maximum dynamic load Fmax: 4400 Nm
Dynamic Torsional Moment Load Capacity M_t:  170 Nm
Maximum permissible torsional moment Mt max: 65 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload
Dimensions
Width (A): 48 mm
Length (B): 67 mm
Height of system(H): 36 mm
Height of block (H₁): 29.90 mm
E1: 35 mm
Admissible Operating Temperature: -10 °C … +80 °C
