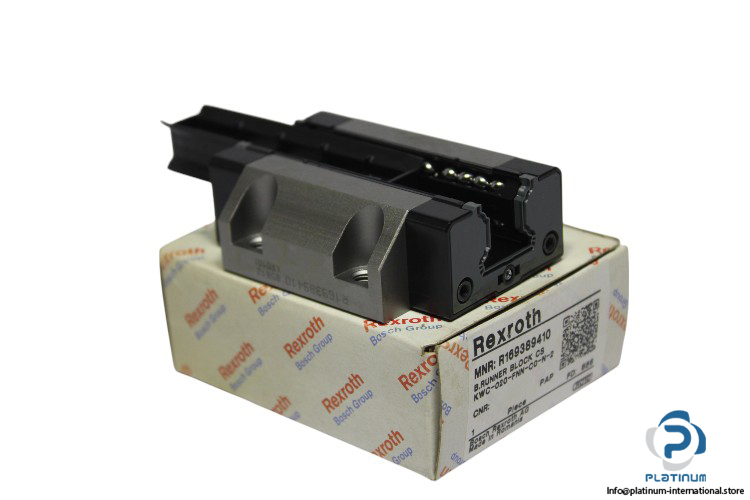

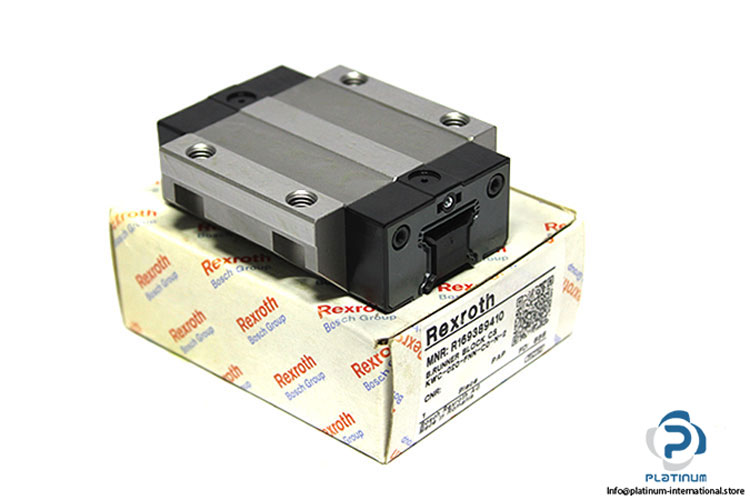

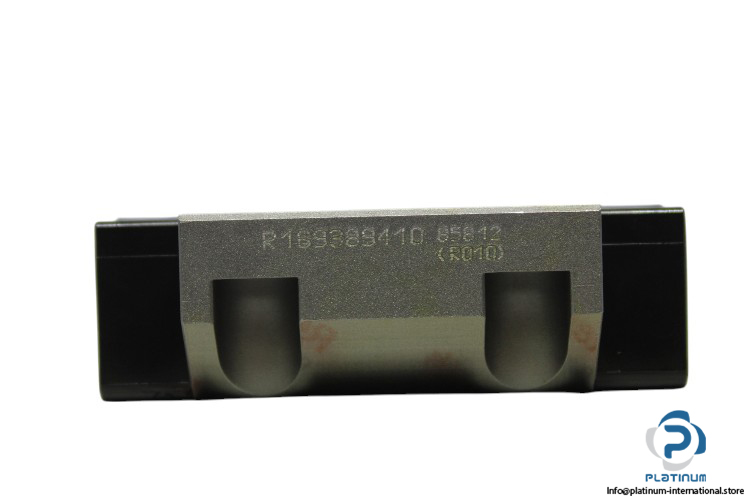

Rexroth R169389410 Ball Runner Block

Rexroth BALL RUNNER BLOCK R169389410

The Rexroth BALL RUNNER BLOCK (MNR: R169389410) is designed to deliver smooth, efficient motion for industrial applications, offering high dynamic and static load capacities. With a size of 20 mm and built to withstand harsh conditions, this component is perfect for high-speed, high-acceleration travel, ensuring precise and durable performance.

🔧 Technical Specifications:

• Manufacturer: Rexroth
• Type: BALL RUNNER BLOCK
• Model Number: R169389410
• Size: 20 mm
• Width (A): 59 mm
• Length (B): 72.5 mm
• Height of System (H): 28 mm
• Height of Block (H1): 23 mm
• E1: 49 mm
• E2: 322 mm
• Format: FNN €“ Flange, Standard, Low
• Material (Profiled Rail Systems): Carbon Steel
• Maximum Acceleration Travel: 250 m/s²
• Maximum Permissible Speed: 3 m/s
• Dynamic Load Capacity (C): 14500 N
• Static Load Capacity (C0): 24400 N
• Dynamic Torsional Moment Load Capacity (Mt): 190 Nm
• Static Torsional Moment Load Capacity (Mt0): 310 Nm
• Dynamic Longitudinal Moment Load Capacity (ML): 100 Nm
• Static Longitudinal Moment Load Capacity (ML0): 165 Nm
• Accuracy Class: N – Normal
• Preload Class: C0 €“ Without Preload (Clearance)
• Admissible Operating Temperature: -10 °C to +80 °C

This Rexroth BALL RUNNER BLOCK is a reliable solution for industrial systems requiring smooth and efficient motion under high loads, offering precision and performance in a wide range of applications.
