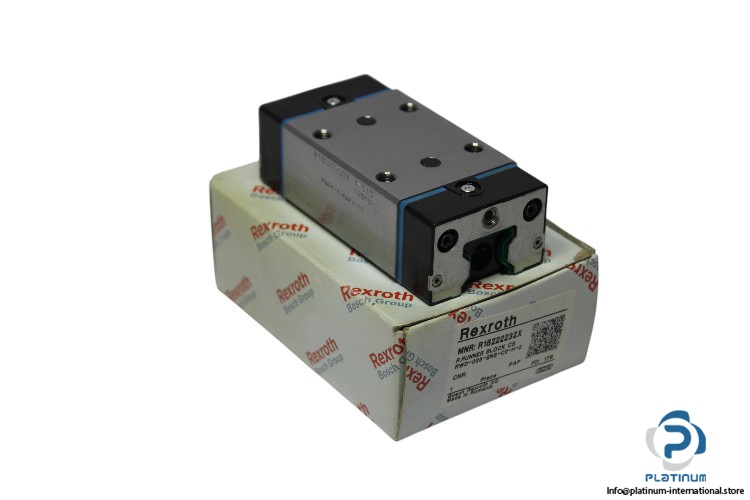

Rexroth R18222232X Roller Runner Block
New
In stock5 unitsReady to ship
Rexroth Roller Runner Block R18222232X, 25 mm size, slimline format, highly accurate, carbon steel, load capacity up to 59,500 N, and speed up to 4 m/s.
2559500BlockCapacityGuideHigh-AccuracyLinearLoadmmMotionNR18222232XRexrothRollerRunnerSlimlineSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Rexroth Roller Runner Block R18222232X
The Rexroth Roller Runner Block R18222232X is a high-performance linear motion system designed for applications demanding precision and durability. Featuring a slimline format, carbon steel material, and highly accurate construction, it delivers exceptional load capacities and smooth motion for industrial needs.
🔧 Technical Specifications:
- Manufacturer: Rexroth
- Type: Roller Runner Block
- MNR: R18222232X
- Size: 25 mm

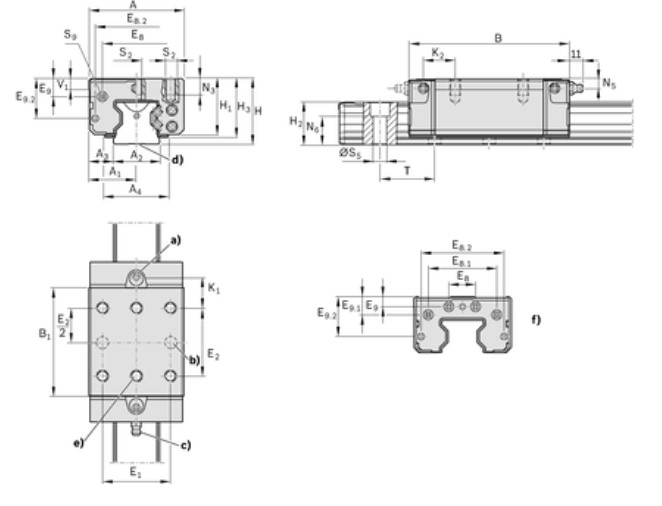

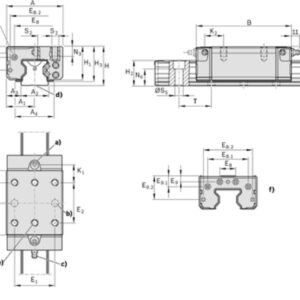

- Dimensions:
- Width (A): 48 mm
- Length (B): 97 mm
- Height of System (H): 36 mm
- Height of Block (H1): 30 mm
- E1: 35 mm
- E2: 35 mm
- Format: SNS €“ Slimline, Normal, Standard Height
- Material (Profiled Rail Systems): Carbon Steel
- Maximum Acceleration Travel (amax): 150 m/s²
- Maximum Permissible Speed (vmax): 4 m/s
- Dynamic Load Capacity (C): 26,900 N
- Static Load Capacity (C0): 59,500 N
- Dynamic Torsional Moment Load Capacity (Mt): 348 Nm
- Static Torsional Moment Load Capacity (Mt0): 770 Nm
- Dynamic Longitudinal Moment Load Capacity (ML): 260 Nm
- Static Longitudinal Moment Load Capacity (ML0): 580 Nm
- Accuracy Class: H €“ Highly Accurate
Engineered to meet high standards of precision, this runner block is perfect for demanding linear motion systems in various industrial applications.
