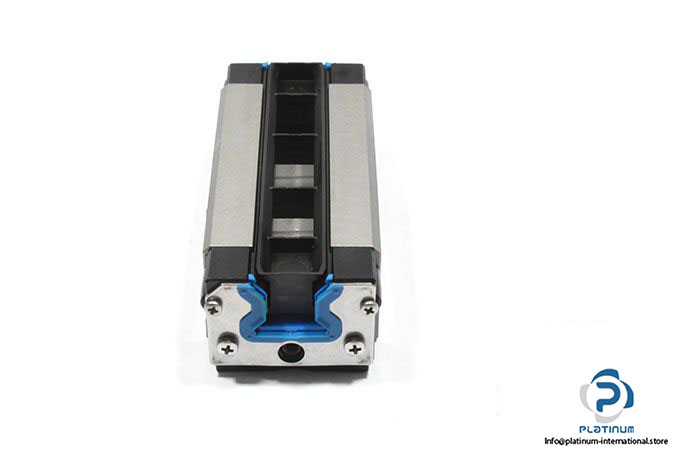

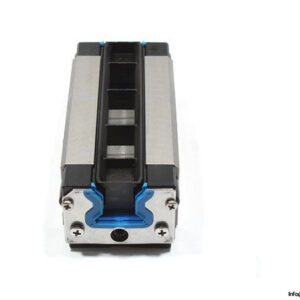

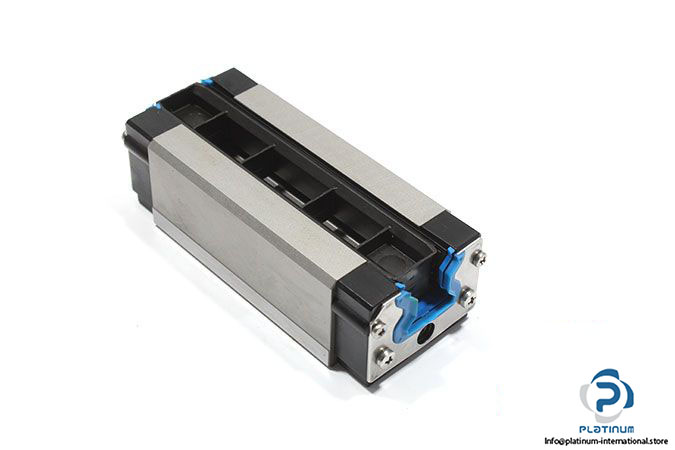

Rexroth R182423116 Roller Runner Block SLH

Manufacturer: Bosch Rexroth

Type: Roller Runner Blocks SLH

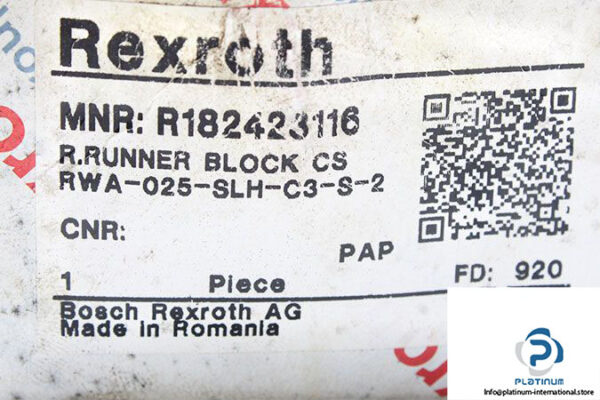

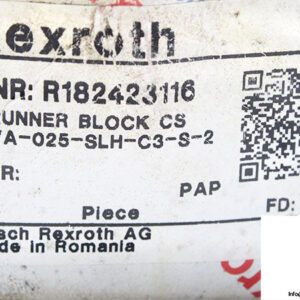

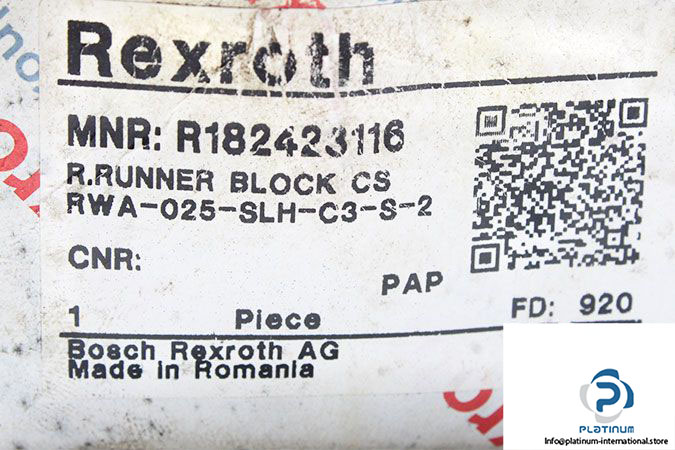

MNR: R182423116

Size: 25 mm

Mechanical Format: RWA

Design: SLH – Slimline, Long, High

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 4 m/s

Dynamic Load Capacity C: 33300 N

Static Load Capacity C₀ : 76400 N

Dynamic Torsional Moment Load Capacity M_t:  432 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 420 Nm

Accuracy Class: SP

Preload Class: C3

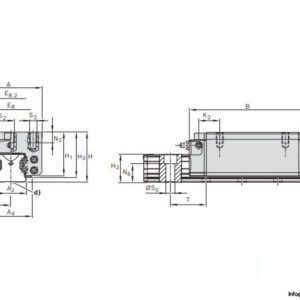

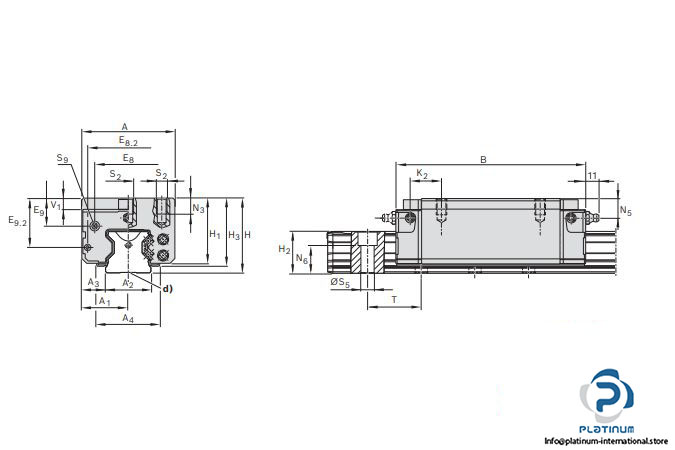

Dimensions

Width ( A ): 48 mm

Length ( B ): 115 mm

Height ( H₁ ): 34 mm

Admissible Operating Temperature: -10… +80 °C

Weight: 0.85 kg
