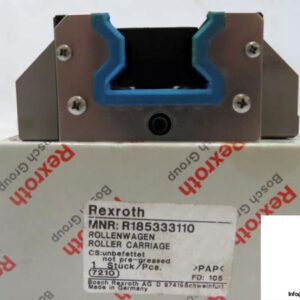

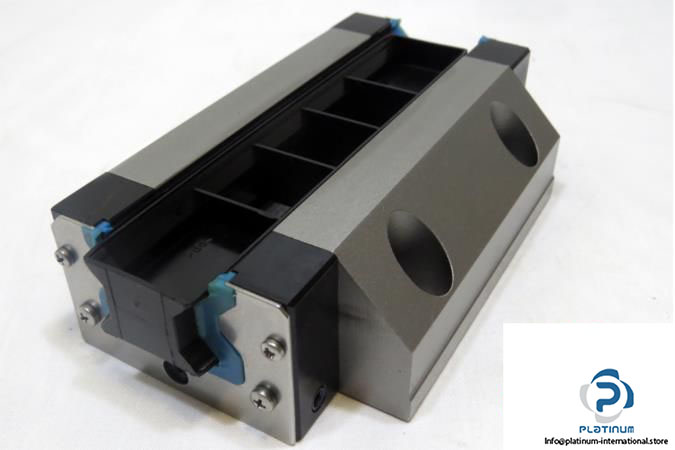

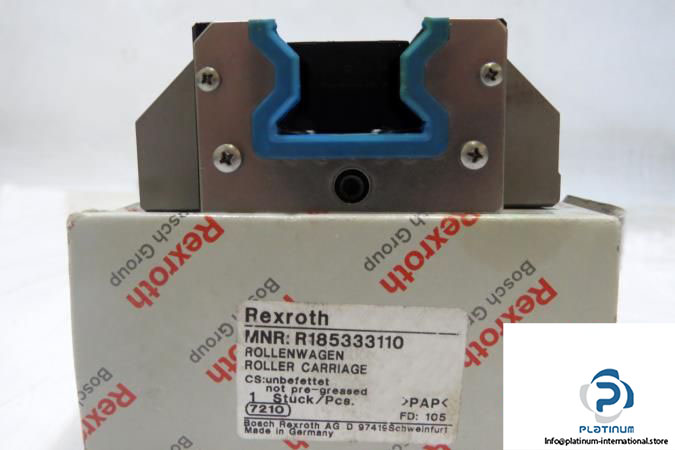

Rexroth R185333110 Roller Rail Runner Block

Manufacturer: Bosch Rexroth

Type: Roller Runner Blocks FLS

MNR: R 185333110

Size: 35

Mechanical Format: RWA

Design: FLS – Flange, Long, Standard height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 4 m/s

Dynamic Load Capacity C: 74900 N

Static Load Capacity C₀ : 155400 N

Dynamic Torsional Moment Load Capacity M_t:  1490 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 1220 Nm

Accuracy Class: S

Preload Class: C3

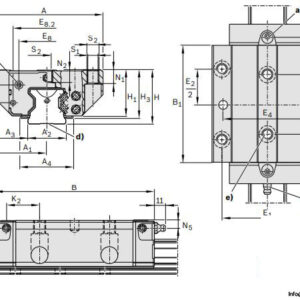

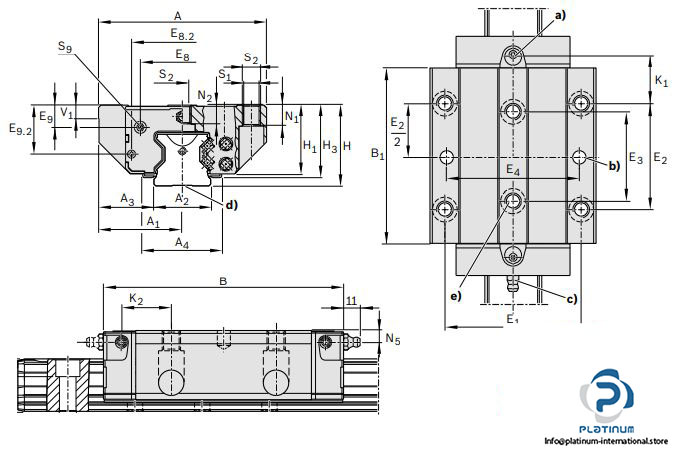

Dimensions

Width (A): 100 mm

Length (B): 142 mm

Height (H₁): 41 mm

E₁: 82 mm

E₂: 62 mm

Admissible Operating Temperature: -10… +80 °C
