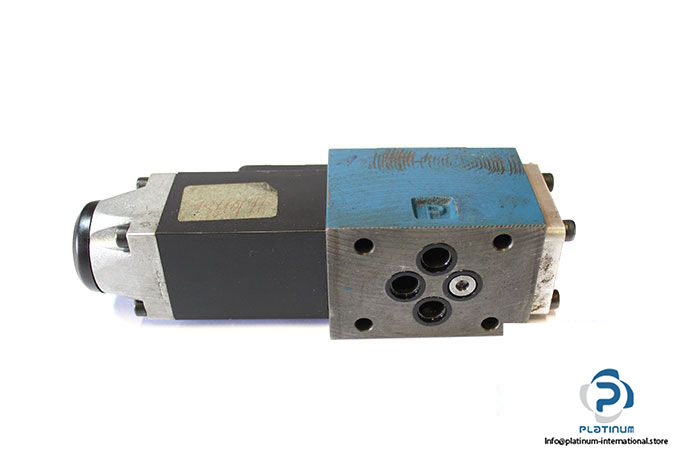

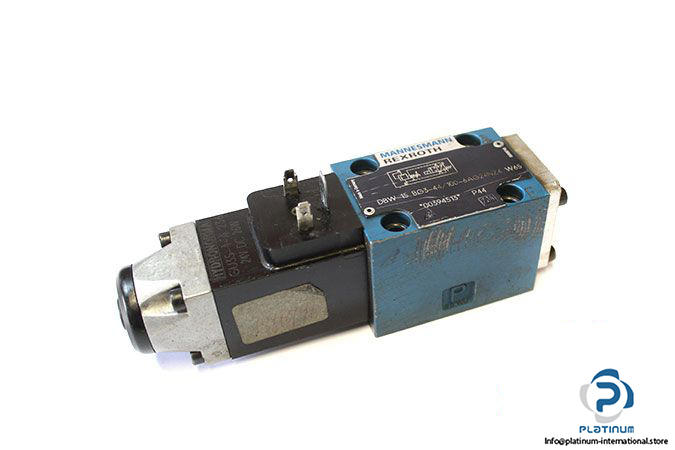

Rexroth R900394513 Pressure Relief Valve Pilot Operated

Manufacturer: Rexroth

Type: Pressure Relief Valve Pilot Operated

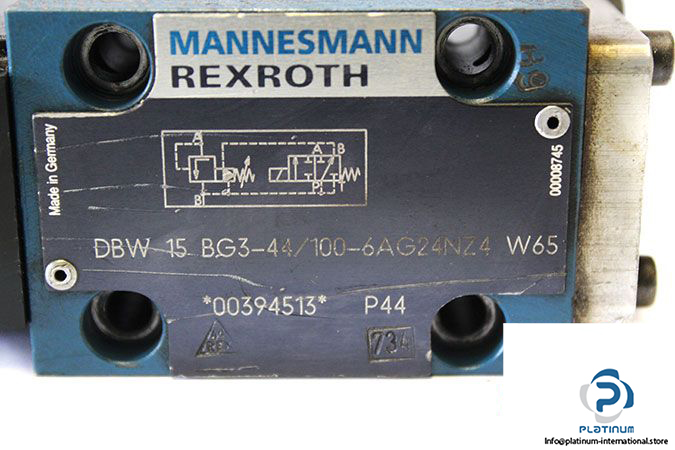

Model: DBW15BG3-44/100-6AG24NZ4W65

MRN: R900394513

Size: 15

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports P :350 bar

Maximum Operating Pressure at Ports T :315 bar

Maximum Backpressure at Ports T: 210 with DC solenoid

160 with AC solenoid

Maximum Flow Rate: 500 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

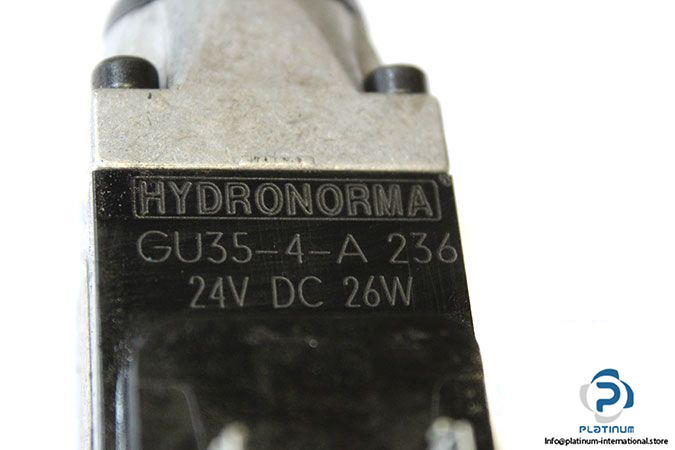

Attachment: REXROTH GU35-4-A 236 SOLENOID COIL

Manufacturer: Rexroth

Type: Solenoid Coil

Model: GU35-4-A 236

Power: 26 W

Voltage: 24 VDC

Weight: 1.25 kg
