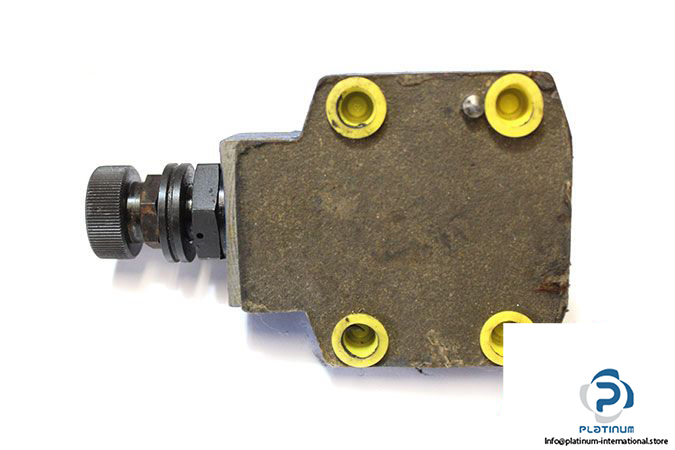

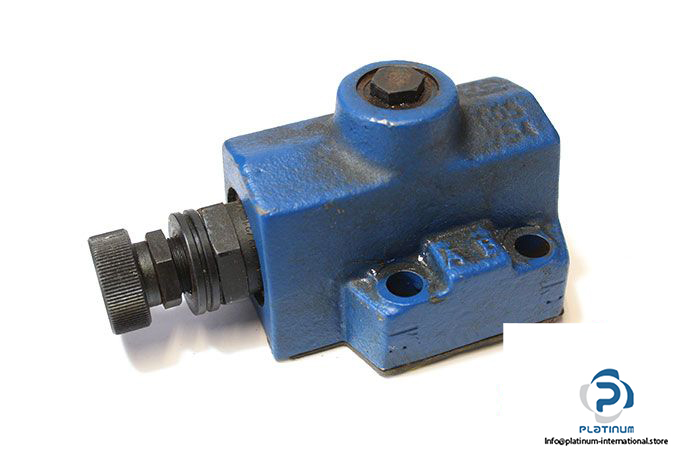

Rexroth R900414331 Pressure Reducing Valve Pilot Operated

Manufacturer: Rexroth

Type: Pressure Reducing Valve Pilot Operated

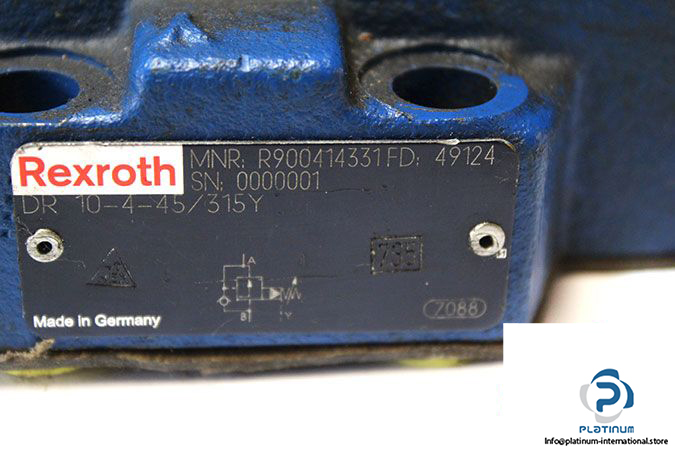

Model: DR 10-4-45/315Y

MNR: R900414331

Size: 10

Adjustment element: Rotary knob

Pressure Sitting: 315 bar

Ambient Temperature Range: –30 …. +50 ^oC

Nominal pressure: 350 bar

Maximum operating pressure at port B: 350 bar

Operating pressure range at port A: 10 to 350 bar

Maximum back pressure at port Y: 350 bar

Maximum Flow Rate: 150 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 2.25 kg
