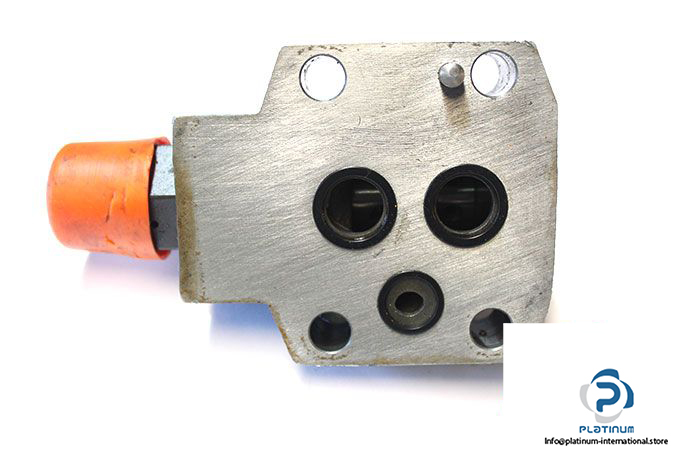

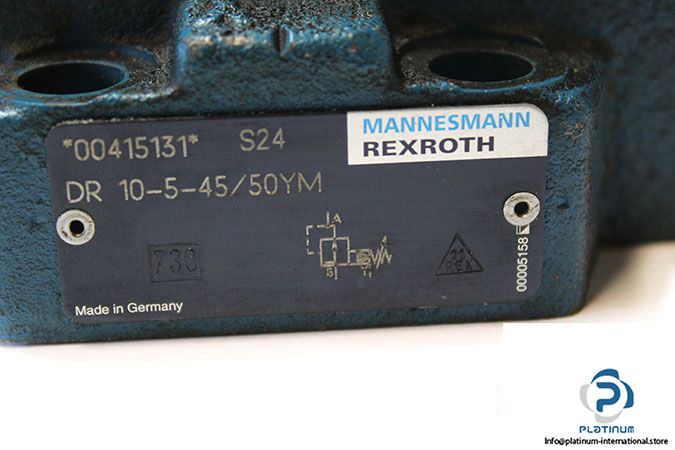

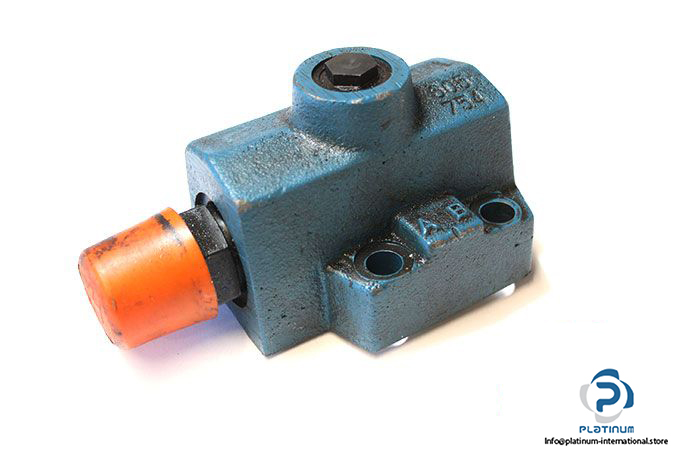

Rexroth R900415131 Pressure Reducing Valve Pilot Operated

Manufacturer: MANNESMANN REXROTH

Type: Pressure Reducing Valve Pilot Operated

Model: DR 10-5-45/50YM

MNR: R900415131

Size: 10

Adjustment Element: Sleeve with Hexagon And Protective Cap

Pressure Setting: 50 bar

Nominal Pressure:350 bar

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at port B: 350 bar

Operating Pressure Range at Port A: 10 to 350 bar

Maximum Back Pressure At Port Y: 350 bar

Maximum Flow Rate: 150 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 2.22kg
