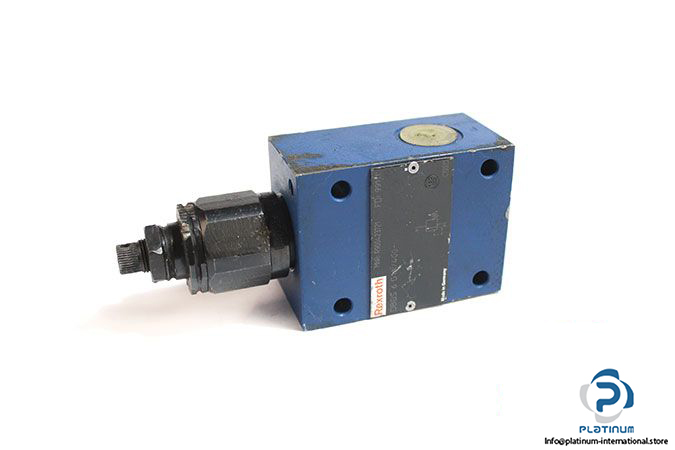

Rexroth R900423721 Pressure Relief Valve Direct Operated

Manufacturer: Rexroth

Type: Pressure Relief Valve Direct Operated

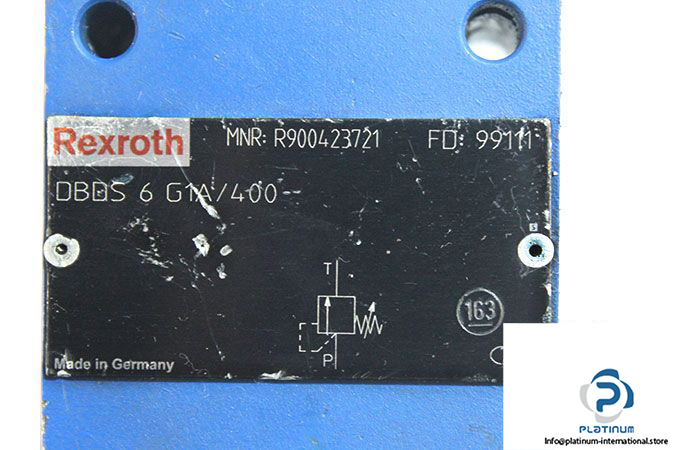

Model: DBDS 6 G1A/400

MNR: R900423721



Size: 6

Adjustment element for pressure adjustment: Bushing with Hexagon and Protective Cap

Pressure Setting: up to 400 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum Operating Pressure Input – Standard:400 bar

Maximum Operating Pressure Output:315 bar

Maximum Flow Rate: 50 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: G1/4

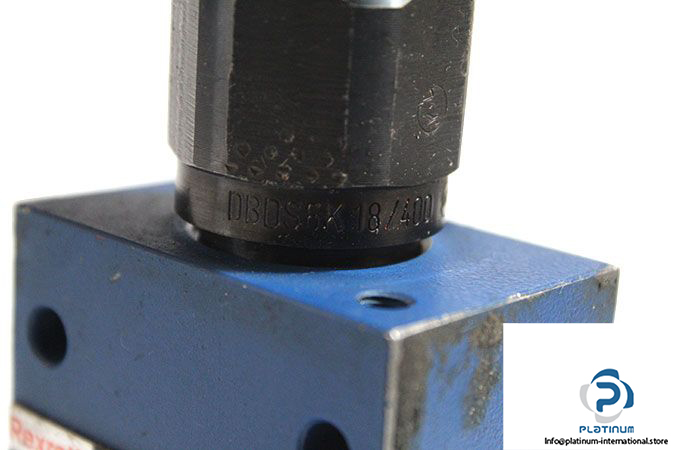

Attachment: Rexroth DBDS6K 18/400 Screw-In Cartridge Valve

Manufacturer: Rexroth

Type: Screw-In Cartridge Valve

Model: DBDS6K 18/400

Weight: 1.55 kg
