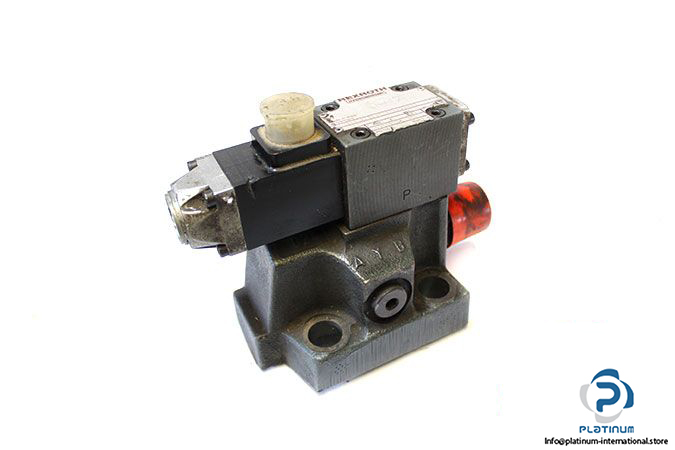

Rexroth R900495685 Pressure Relief Valve Pilot Operated

Manufacturer: Rexroth

Type: Pressure Relief Valve Pilot Operated

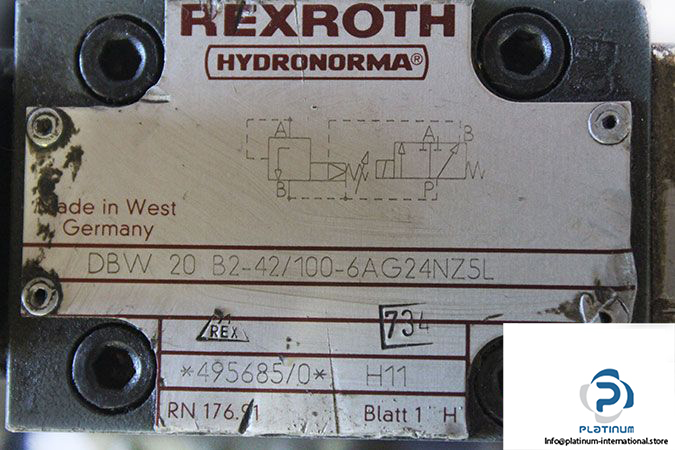

Model: DBW20B2-42/100-6AG24NZ5L

MNR: R900495685

Size: 20

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Pressure Sitting: 140 bar

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports P :350 bar

Maximum Operating Pressure at Ports T :315 bar

Maximum Backpressure at Ports T: 210 with DC solenoid

160 with AC solenoid

Maximum Flow Rate: 500 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

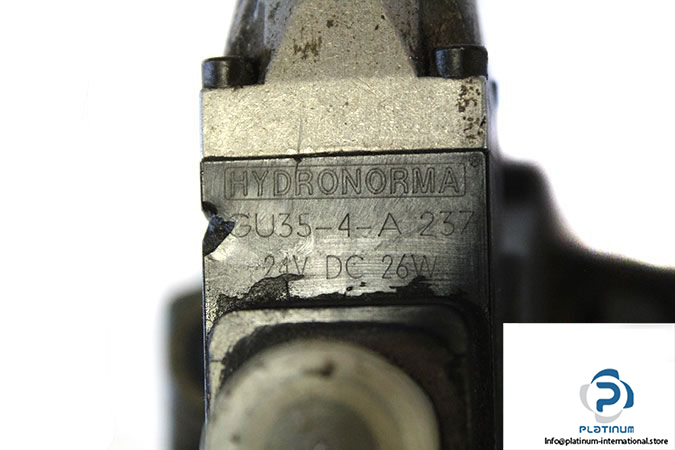

Attachment: HYDRONORMA WU35-4-A 237 SOLENOID COIL

Manufacturer: HYDRONORMA

Type: Solenoid Coil

Model: WU35-4-A 237

Power: 26 W

Voltage: 24 V

Weight: 4.62 kg
