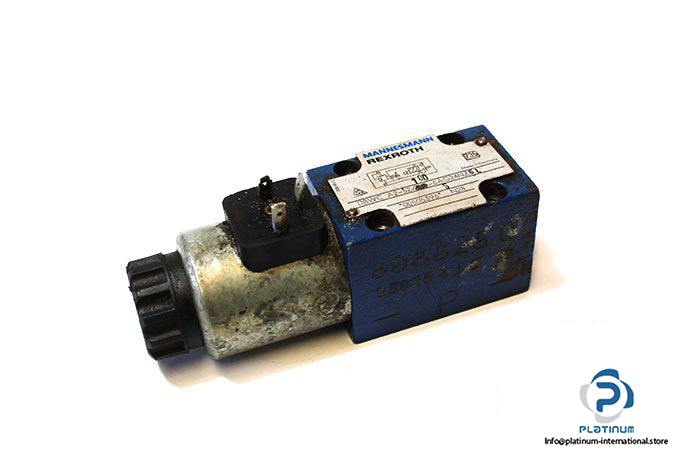

Rexroth R900505396 Pressure Relief Valve Pilot Operated

Manufacturer: Rexroth

Type: Pressure Relief Valve Pilot Operated

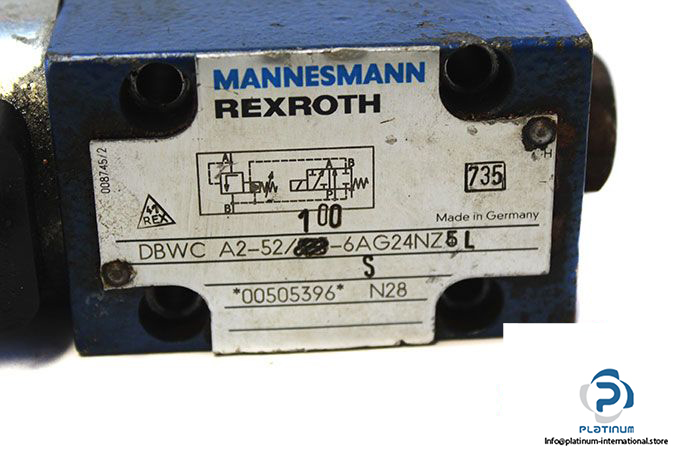

Model: DBWC A2-52/100-6AG24NZ5L

MNR: R900505396

Size: 10

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Pressure Sitting: 100 bar

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports P :350 bar

Maximum Operating Pressure at Ports T :315 bar

Maximum Backpressure at Ports T: 210 with DC solenoid

160 with AC solenoid

Maximum Flow Rate: 500 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

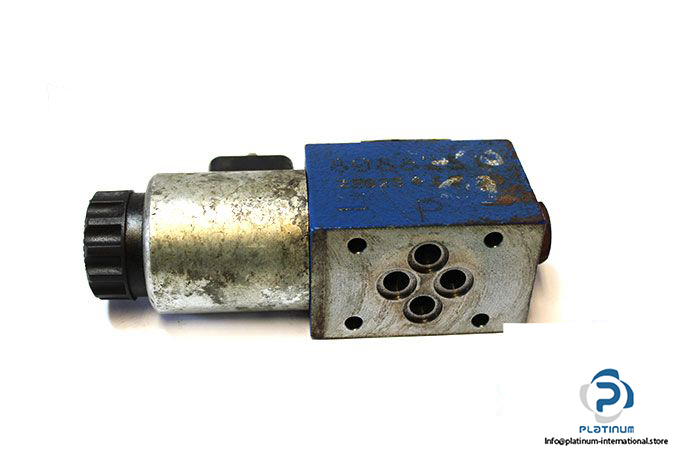

Connection: Sup-plate

Weight: 1.45 kg
